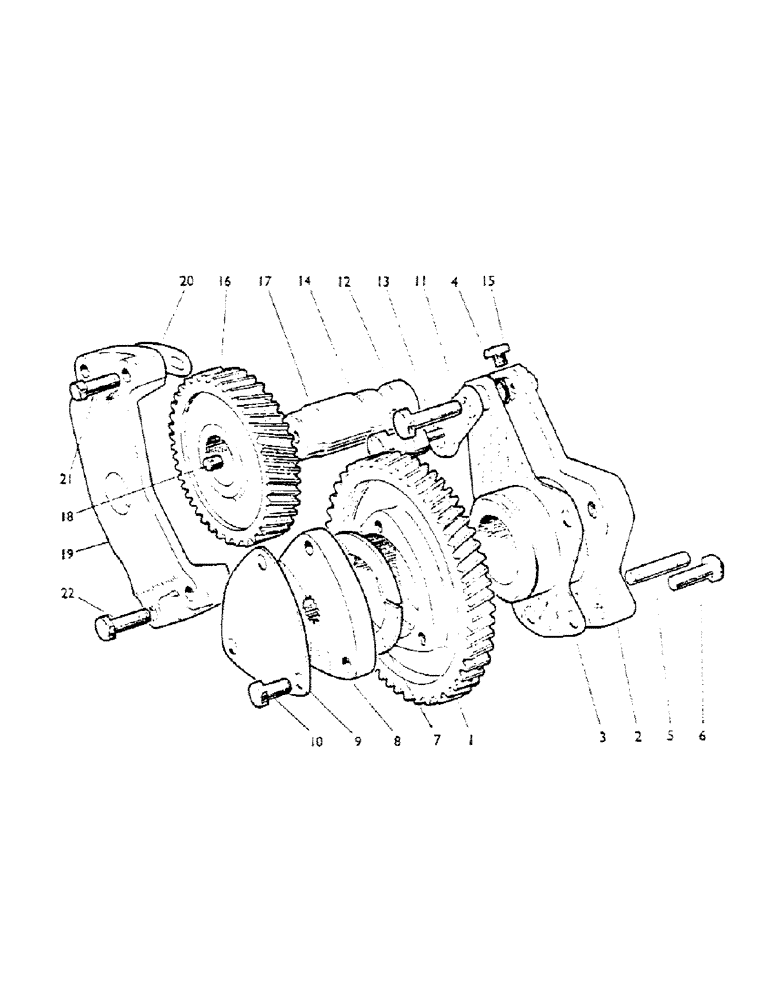

Запчасти Case IH 990A (14) - INJECTION PUMP DRIVE (01) - ENGINE

1

K902006

GEAR

Drive Gear--Injection Pump

1шт.

2

K904061

Support Flange

1шт.

3

K904062

GASKET

1шт.

4

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

O Ring

1шт.

5

K608106

STUD

5/16 UNC x 2 in.--Injection Pump Mounting

3шт.

6

K602806

BOLT

Setscrew, 5/16 UNC x 1 1/8 in.

1шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

1шт.

7

K902007

WASHER, THRUST

Thrust Washer (2 halves)

1шт.

8

K902008

COUPLING, BREAK AWAY

Coupling--Pump

1шт.

9

K902009

Retaining Plate

1шт.

10

K600353

BOLT

--Special

3шт.

11

K902010

Connection--Oil Feed

1шт.

12

K600354

BOLT (SPREADER)

Bolt--Special

1шт.

K24784

COPPER WASHER

5/16 in.

2шт.

K902014

Restrictor Tube Assy.

1шт.

13

K902013

Restrictor Tube 902014

1шт.

14

K902012

Banjo Bolt, 5/8 UNC 902014

1шт.

15

K609441

Plug, 1/4 UNC Injection pump support flange

1шт.

K626442

WASHER

Copper Washer Injection pump support flange

2шт.

16

K904074

NO LONGER SERVICED

Gear--Intermediate

1шт.

17

K904075

NO LONGER SERVICED

Shaft--Intermediate Gear

1шт.

18

K606021

SCREW

Plug

2шт.

19

K904073

SUPPORT

Bracket--Intermediate Gear Support

1шт.

21

K600207

BOLT

5/16 UNC x 1 3/4 in. Support bracket intermediate gear

2шт.

22

K600209

BOLT

5/16 UNC x 2 in. Support bracket intermediate gear--

2шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in. Support bracket intermediate gear

4шт.
