Запчасти Case IH 990A (12) - INJECTION PUMP AND FUEL SYSTEM (01) - ENGINE

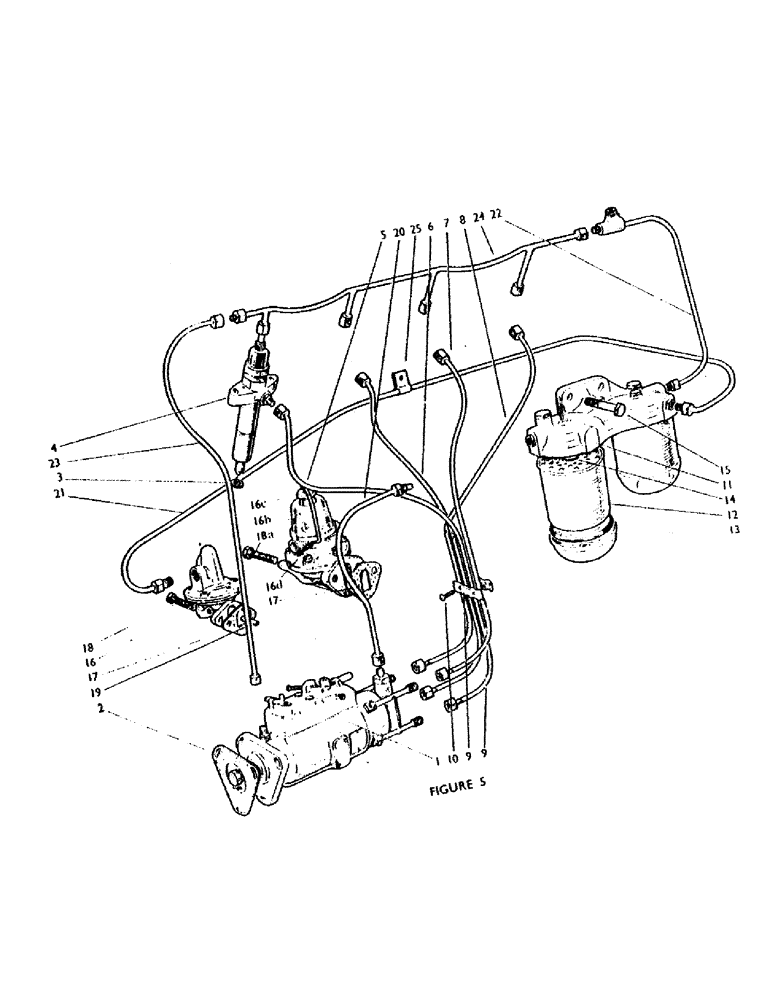

Схема запчастей Case IH 990A - (12) - INJECTION PUMP AND FUEL SYSTEM (01) - ENGINE
17
7
25
24
15
18
2
14
23
17
16d
16b
5
3
1
6
8
22
9
11
20
18a
13
12
16c
19
10
4
16
21
9

Артикул

Название

Примечание

Количество

1

K906899

X

Distributor Injection Pump (CAV, Used with 904442 3243090)

1шт.

To Engine No. 43671 (AD4/47A), 36676 (AD4/47B)

1шт.

1

K910521

X

Distributor Injection Pump (CAV, Used with 910530 3243960)

1шт.

From Engine No. 43672 (AD4/47A), 36677 (AD4/47B)

1шт.

2

K68349

GASKET

, Serial Range: Gasket--Pump-Plate

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC Injection pump mounting

3шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in. Injection pump mounting

3шт.

K19471

WASHER

5/16 in Injection pump mounting

3шт.

3

K901092

WASHER

--Injector

4шт.

4

K904442

SPARE PART

Nozzle and Holder (Used with 906899)

4шт.

To Engine No. 43671 (AD4/47A), 36676 (AD4/47B)

1шт.

4

K910530

NOZZLE

and Holder (Used with 910521)

4шт.

From Engine No. 43672 (AD4/47A), 36677 (AD4/47B)

1шт.

K960987

CYLINDER END CAP

Cap--Injector 904442 910530

1шт.

K902103

NOZZLE INJECTION

Nozzle (CAV BDLL 140S6276) 904442 910530

1шт.

To Engine No. 43671 (AD4/47A), 36676 (AD4/47B)

1шт.

K910080

NOZZLE

(CAV BDLL 140S6417) 904442 910530

1шт.

From Engine No. 43672 (AD4/47A), 36677 (AD4/47B)

1шт.

5

K902722

PIPE

Fuel Pipe--No. 1 Cylinder

1шт.

6

K902724

PIPE

Fuel Pipe--No. 2 Cylinder

1шт.

7

K904275

NO LONGER SERVICED

Fuel Pipe--No. 3 Cylinder

1шт.

8

K904277

NO LONGER SERVICED

Fuel Pipe--No. 4 Cylinder

1шт.

9

K900844

CLAMP

Clip--Pipes Injector Pipes

2шт.

10

K12217

SCREW,0.185" x 5/8"

2 BA x 5/8 in. Injector Pipes

2шт.

K11109

NUT

2 BA Injector Pipes

2шт.

K19488

SPRING WASHER

Spring Washer, 3/16 in. Injector Pipes

2шт.

11

K906708

FILTER

Fuel Filter (Complete)

1шт.

12

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

Element(CAV) Part of 906708 Alternatives

2шт.

12

K915319

ELEMENT

(AC-Delco) Part of 906708 Alternatives

2шт.

13

K960936

RING

Sealing Washer (Supplied with Element) Part of 906708

4шт.

14

K960937

O-RING

O Ring--Small Part of 906708

2шт.

15

K600406

BOLT

3/8 UNC x 1 3/4 in. Fuel, Replaces 600405, Serial Range: Filter-head

2шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in. Fuel, Serial Range: Filter-head

2шт.

K627042

BUSHING

Distance Piece--Fuel Filter (Replaces 627040)

2шт.

16

K902135

PUMP

Fuel Feed Pump

1шт.

To Engine No. 44185 (AD4/47A), 37106 (AD4/47B)

1шт.

16d

K909944

PUMP

Fuel Feed Pump

1шт.

From Engine No. 44186 (AD4/47A), 37107 (AD4/47B)

1шт.

K961675

FILTER SCREEN

Filter Gauze 909944

1шт.

From Engine No. 44186 (AD4/47A), 37107 (AD4/47B)

1шт.

16b

K66442

FILTER BOWL

909944

1шт.

From Engine No. 44186 (AD4/47A), 37107 (AD4/47B)

1шт.

K961674

SEAL

Gasket--Filter Bowl 909944

1шт.

From Engine No. 44186 (AD4/47A), 37107 (AD4/47B)

1шт.

16c

K961676

BAIL

Stirrup and Screw 909944

1шт.

From Engine No. 44186 (AD4/47A), 37107 (AD4/47B)

1шт.

K911917

DIAPHRAGM

--Feed Pump (Replaces 12863)

1шт.

K960958

VALVE SPRING

Spring (Green)--Diaphragm

1шт.

17

K902136

GASKET

1шт.

18

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

Setscrew, 5/16 UNC x 7/8 in. Feed pump to block

2шт.

To Engine No. 44185 (AD4/47A), 37106 (AD4/47B)

1шт.

18a

K602807

SCREW

Setscrew, 5/16 UNC x 1 1/4 in Feed, Serial Range: pump-block

2шт.

From Engine No. 44186 (AD4/47A), 37107 (AD4/47B)

1шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in. Feed, Serial Range: pump-block

2шт.

19

K902068

PUSH ROD

--Feed Pump

1шт.

20

K902731

PIPE

Fuel Pipe--Filter to Injection Pump

1шт.

21

K907033

SPARE PART

Fuel Pipe--Feed, Serial Range: Pump-Filter

1шт.

To Engine No. 44185 (AD4/47A), 37106 (AD4/47B)

1шт.

21

K909952

PIPE

Fuel Pipe--Feed, Serial Range: Pump-Filter

1шт.

From Engine No. 44186 (AD4/47A), 37107 (AD4/47B)

1шт.

22

K907037

FITTING

Fuel, Serial Range: Pipe--Leak-off-Filters

1шт.

23

K907035

PIPE

Fuel Pipe--Injection Pump Leak-off

1шт.

K621610

CLIP

--Pipe to Exhaust Manifold

1шт.

24

K904250

INJECTION PIPE

Leak-off Pipe

1шт.

25

K621603

CLIP

--Fuel Pipe to Manifold Stud

1шт.

Выбрано товаров: 65
