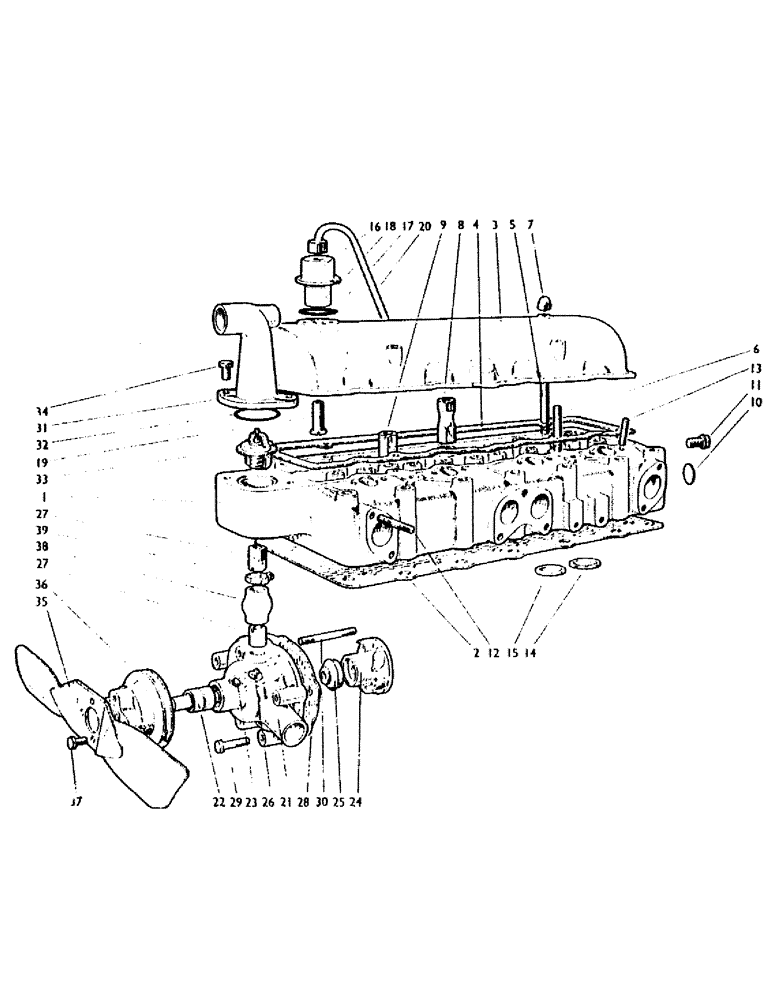

Запчасти Case IH 990A (10) - CYLINDER HEAD AND WATER PUMP (01) - ENGINE

1

K961010

NO LONGER SERVICED

Cylinder Head (with Valve Inserts and Plugs)

1шт.

2

K902040

GASKET

, Serial Range: Gasket--Head-Block

1шт.

K905228

SPARE PART

Cover--Cast, Cylinder Head Alternatives

1шт.

3

K906975

COVER

--Pressed Steel, Cylinder Head Alternatives

1шт.

4

K905229

GASKET,3.97mm Thk

--Cylinder Head Cover

1шт.

K608110

STUD

5/16 UNC x 3 1/8 in. Cylinder Head Cover 905228

2шт.

K608116

STUD

5/16 UNC x 3 11/16 in. Cylinder Head Cover 905228

2шт.

5

K608118

STUD

5/16 UNC x 3 7/16 in. Cylinder Head Cover 906975

2шт.

6

K608119

STUD

5/16 UNC x 2 13/16 in. Cylinder Head Cover 906975

2шт.

K14988

WASHER

Copper-Asbestos Washer (Replaces 626762)

4шт.

7

K607252

NUT

Domed Nut, 5/16 UNC

4шт.

K617581

NUT

--Special Cylinder Head

3шт.

K600870

BOLT

Special, 1/2 UNC x 4 1/4 in. Cylinder Head

7шт.

8

K906536

NUT

Nut--Elongated Cylinder Head

7шт.

9

K906898

NUT

--Lifting Cylinder Head

2шт.

K900431

PLUG

--Taper

4шт.

10

K623810

PLUG

Welch Plug, 1 in.

1шт.

11

K19591

PLUG

Flanged Plug, 1/8 BSP

1шт.

K16732

WASHER

Copper Washer, 1/8 BSP

1шт.

12

K608203

STUD

--Manifold

12шт.

K608214

STUD

--Conduit to Inlet Manifold

2шт.

K608216

STUD

--Exhaust Manifold

1шт.

13

K608107

STUD

--Injector

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

8шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

8шт.

14

K905202

INSERT

--Inlet Seat

4шт.

15

K62034

INSERT

--Exhaust Seat

4шт.

16

K907108

NO LONGER SERVICED

Cover

1шт.

17

K626901

O-RING,40554" ID x 40575" OD x 0.12"

1шт.

18

K907110

BREATHER

Element--Engine Breather

1шт.

19

K909671

Connection From Engine No. AD4/47A 37593 From Engine No. AD4/47B 33527

1шт.

K909672

DISTRIBUTOR

Distance Piece From Engine No. AD4/47A 37593 From Engine No. AD4/47B 33527

1шт.

20

K909669

PIPE

Breather Pipe From Engine No. AD4/47A 37593 From Engine No. AD4/47B 33527

1шт.

K626443

WASHER

Copper Washer From Engine No. AD4/47A 37593 From Engine No. AD4/47B 33527

2шт.

K617371

NUT

Domed Nut, 1/2 UNF From Engine No. AD4/47A 37593 From Engine No. AD4/47B 33527

1шт.

19

K907057

SPARE PART

Connection Up to Engine No. AD4/47A 37592 Up to Engine No. AD4/47B 33526

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

Locknut, 1/2 UNF, Up to Engine No. AD4/47A 37592 Up to Engine No. AD4/47B 33526

2шт.

K626676

WASHER

Up to Engine No. AD4/47A 37592 Up to Engine No. AD4/47B 33526

1шт.

20

K907003

PIPE

Breather Pipe Up to Engine No. AD4/47A 37592 Up to Engine No. AD4/47B 33526

1шт.

K902765

PIPE

Oil, Serial Range: Pipe--Block-Head

1шт.

K619525

PLUG

5/8 UNF Thermometer Blanking-off

1шт.

K626444

WASHER

Copper Washer Thermometer Blanking-off

1шт.

K961011

PUMP

Water Pump (Complete)

1шт.

21

K902029

HOUSING

Water Pump Body 961011

1шт.

22

K11651

BEARING

Shaft and Bearing--Pump 961011

1шт.

23

K903810

SCREW,Locating, 5/16" - 18 x 21/32"

Locating Screw--Bearing 961011

1шт.

K11673

WASHER

Tab Washer 961011

1шт.

24

K900472

IMPELLER

961011

1шт.

25

K68949

SEAL

--Gland 961011

1шт.

26

K12250

FITTING

Grease Nipple 961011

1шт.

27

K904195

FITTING

Connection--By-pass 961011

1шт.

28

K902030

GASKET

, Serial Range: Gasket--Pump-Block

1шт.

29

K600209

BOLT

5/16 UNC x 2 in. Water, Serial Range: pump-block

4шт.

30

K608111

STUD

5/16 UNC x 3 in. Water, Serial Range: pump-block

1шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in. Water, Serial Range: pump-block

5шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC Water pump to block

1шт.

31

K906781

HOUSING

Pipe--Water Outlet To Tractor 456232

1шт.

K909026

NO LONGER SERVICED

Pipe--Water Outlet From Tractor 456233

1шт.

32

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk

1шт.

33

K900368

THERMOSTAT

1шт.

K910411

GASKET

1шт.

34

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

Setscrew, 5/16 UNC x 1 in.

2шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

2шт.

35

K30668

FAN

(Two-blade)

1шт.

K912812

FAN

Distance Piece (not required with 914335)

1шт.

36

K914335

SPARE PART

Pulley--Fan (Replaces 900476)

4шт.

37

K602903

SCREW

Bolt, 3/8 UNC x 7/8 in. (Replaces 600404)

4шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

4шт.

38

K904196

HOSE,0.84" ID x 1.56"

--By-pass 0.84" ID x 1.56"

1шт.

39

K621771

CLIP

--Hose

2шт.

K961004

KIT

Water Pump Repair Pack

1шт.
