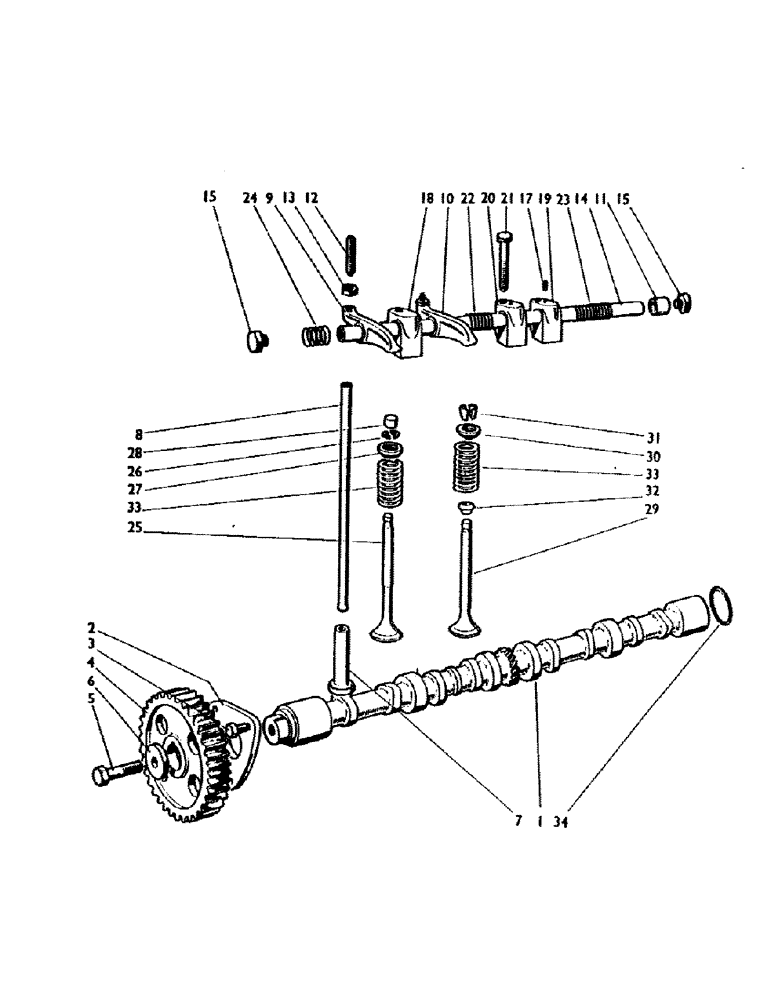

Запчасти Case IH 990A (08) - CAMSHAFT AND VALVE MECHANISM (01) - ENGINE

1

K902050

CAMSHAFT

1шт.

2

K902015

PLATE

Locating Plate

1шт.

3

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

Setscrew, 5/16 UNC x 1 in.

3шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

3шт.

4

K902016

GEAR

--Camshaft

1шт.

K19607

KEY

Woodruff No. 506

1шт.

5

K600700

BOLT

7/16 UNC x 2 in.

1шт.

6

K66382

WASHER

7/16 in.

1шт.

7

K901137

TAPPET

8шт.

8

K902035

ROD

Push Rod

8шт.

9

K63089

ROCKER

Valve Rocker, R.H. (with Bush), "Nos. 2,4,6,8--From Front" (Supersedes 961052)

4шт.

10

K63090

ROCKER

Valve Rocker, L.H. (with Bush), "Nos. 1,3,5,7--From Front" (Supersedes 961053)

4шт.

11

K11060A

BUSHING

Bush--Valve Rocker

8шт.

12

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

--Adjusting

8шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

Locknut, 3/8 UNC

8шт.

14

K909622

SHAFT

--Rocker (Supersedes 904192)

1шт.

15

K19590

PLUG

3/8 BSP

2шт.

17

K606051

SET SCREW,5/16" - 18 x 1/2"

Locating Screw

1шт.

18

K913753

BRACKET

--Rocker Shaft (No. 1 and 3) (Supersedes 903997)

2шт.

19

K913754

NO LONGER SERVICED

Bracket--Rocker Shaft (Rear) (Supersedes 903998)

1шт.

20

K913753

BRACKET

--Rocker Shaft (No. 2) (Supersedes 906894)

1шт.

21

K600412

BOLT

3/8 UNC x 2 1/2 in.

4шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

4шт.

22

K11017

SPRING

Locating Spring--Intermediate

2шт.

23

K11034

SPRING

Locating Spring--Centre

1шт.

24

K11018

SPRING

Locating Spring--Ends

2шт.

25

K900417

VALVE

--Exhaust

4шт.

26

K68412

COTTER PIN

Cotters--Exhaust Valve (Pairs)

4шт.

27

K900419

COLLAR

--Exhaust Valve

4шт.

28

K68414

CAP

--Exhaust Valve

4шт.

29

K903994

SPARE PART

Valve--Inlet

4шт.

30

K903995

COLLAR

--Inlet Valve

4шт.

31

K65893

LOCKING DEVICE

Cotters--Inlet Valve (Pairs)

4шт.

32

K903996

NO LONGER SERVICED

Seal--Inlet Valve

4шт.

33

K907894

SPRING

--Valve

8шт.

34

K623523

O-RING,1.802" OD x 0.143" Width

O Ring, 2 1/16 in.

1шт.

K908082

SPARE PART

Valve--Inlet .010 in. Oversize Stem

1шт.

K908083

NO LONGER SERVICED

Valve--Exhaust .010 in. Oversize Stem

1шт.
