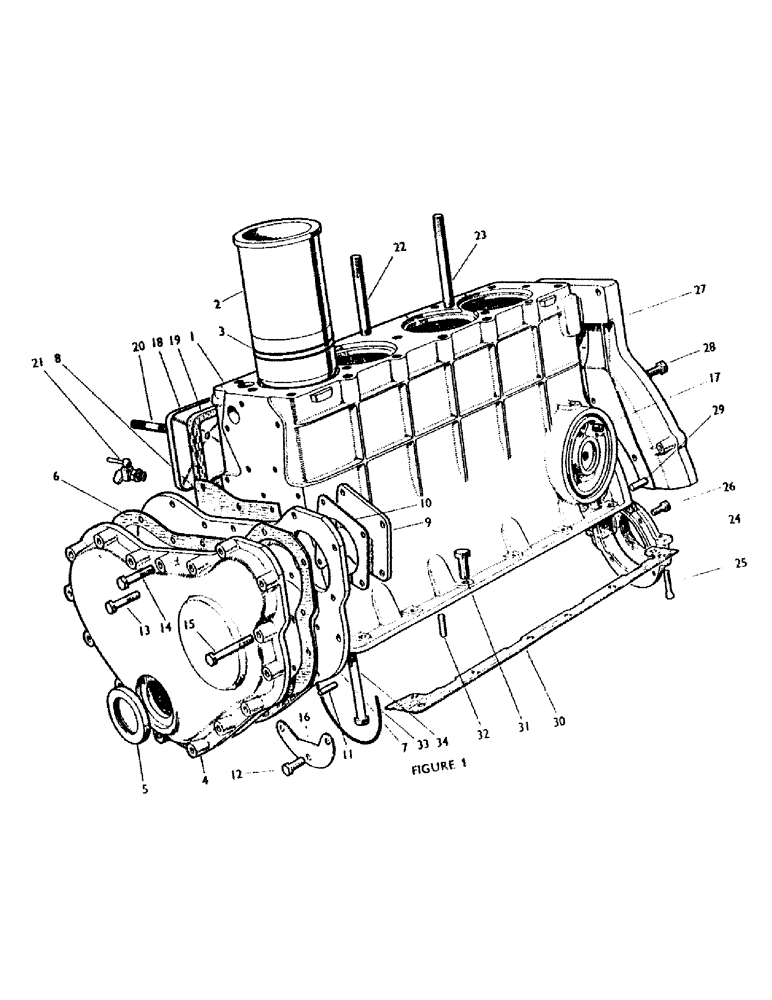

Запчасти Case IH 990A (04) - CYLINDER BLOCK, SLEEVES AND COVERS (01) - ENGINE

1

K961005

BLOCK

Cylinder Block (Less Sleeves)

1шт.

2

K906859

CYLINDER

Sleeve

4шт.

3

K66385

O-RING,0.093" Thk x 3.875" ID, 65 Duro

Seal--Sleeve

8шт.

K12258

PIN

Dowel Main bearing caps to cylinder block

6шт.

K902022

BOLT

5/8 UNC x 3 5/8 in. Main bearing caps to cylinder block

6шт.

K12994

BEARING WASHER

Tab Washer Main bearing caps to cylinder block

6шт.

4

K904056

SPARE PART

Cover (Cast Iron)--Timing Cover Alternatives

1шт.

4

K910057

COVER

(Steel Pressing)--Timing Cover Alternatives

1шт.

5

K24855

NO LONGER SERVICED

Oil Seal

1шт.

6

K904057

GASKET

--Cover to Plate (Use with 904056)

1шт.

6

K910597

GASKET

--Cover to Plate (Use with 910057)

1шт.

7

K904058

NO LONGER SERVICED

Carrier Plate

1шт.

8

K902031

GASKET

, Serial Range: Gasket--Plate-Block

1шт.

9

K904059

Blanking Plate

1шт.

10

K904060

SPARE PART

Gasket--Blanking Plate to Carrier Plate

1шт.

11

K621807

PIN

, Serial Range: Dowel--Cover-Plate

4шт.

12

K602803

BOLT

5/16 UNC x 3/4 in.--Carrier Plate

4шт.

13

K600207

BOLT

5/16 UNC x 1 3/4 in. Cast iron timing gear cover

9шт.

14

K600209

BOLT

5/16 UNC x 2 in. Cast iron timing gear cover

1шт.

15

K600210

BOLT

5/16 UNC x 2 1/8 in. Cast iron timing gear cover

3шт.

K600211

BOLT

5/16 UNC x 2 1/4 in.

3шт.

K602842

SCREW

Setscrew, 5/16 UNC x 7/16 in. Pressed steel timing gear cover

9шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

Setscrew, 5/16 UNC x 1 in. Pressed steel timing gear cover

6шт.

K600209

BOLT

5/16 UNC x 2 in. Pressed steel timing cover

1шт.

K602801

BOLT (SPREADER)

Bolt, 5/16 UNC x 1/2 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

3шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

21шт.

16

K902036

GASKET

Baffle Plate

1шт.

17

K905217

PLUG

Taper Plug--Oil Cleaner Mounting Boss

1шт.

18

K10029

COVER

--Tappets

2шт.

19

K10030

GASKET

--Tappet Cover

2шт.

20

K608206

SCREW

Stud--Tappet Cover

2шт.

280136

NUT,3/8"-16, G8

2шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

Fibre Washer

2шт.

21

K89737

NO LONGER SERVICED

Drain Tap

1шт.

K19502

WASHER

Fibre Washer

1шт.

K30421

SEALING WASHER

Sealing Washer

1шт.

22

K906538

STUD

--Cylinder Head

8шт.

23

K906539

STUD

--Cylinder Head

4шт.

K600870

BOLT

Special, 1/2 UNC x 4 1/4 in.--Cylinder Head

7шт.

K609440

PLUG

5/8 UNC--Oil Gallery

1шт.

K626441

WASHER

Copper Washer

1шт.

K15512

WASHER

Rolled Copper Washer

1шт.

24

K908398

NO LONGER SERVICED

Oil Retainer (Supersedes 902025)

1шт.

25

K606558

SCREW

Socket Screw, 5/16 UNC

2шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

2шт.

K914404

GASKET,0.18mm Thk

--Oil Retainer to Cylinder Block

2шт.

26

K12258

PIN

Setscrew, 5/16 UNC x 7/8 in.

4шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

4шт.

27

K903947

SUPPORT

Plate--Starter

1шт.

28

K602906

SCREW

Setscrew, 3/8 UNC x 1 1/4 in.

6шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

6шт.

29

K12258

PIN

Dowel (Replaces 621807)

2шт.

K623523

O-RING,1.802" OD x 0.143" Width

O Ring, 2 1/16 in.--Camshaft Rear Bearing

1шт.

30

K902044

GASKET

--L.H., Serial Range: Engine-frame

1шт.

30

K902045

GASKET

--R.H., Serial Range: Engine-frame

1шт.

31

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Setscrew, 3/8 UNC x 1 1/8 in. Frame to cylinder block

12шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in. Frame to cylinder block

12шт.

32

K621834

PIN

Dowel (Replaces 31610) Frame to cylinder block

2шт.

33

K902046

SEAL

Frame to cylinder block

2шт.

34

K600460

BOLT

--Special Frame to cylinder block

4шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in. Frame to cylinder block

4шт.

K961000

GASKET KIT

Engine Gasket Pack

1шт.

K961001

GASKET KIT

Gasket Pack (Decarbonising)

1шт.
