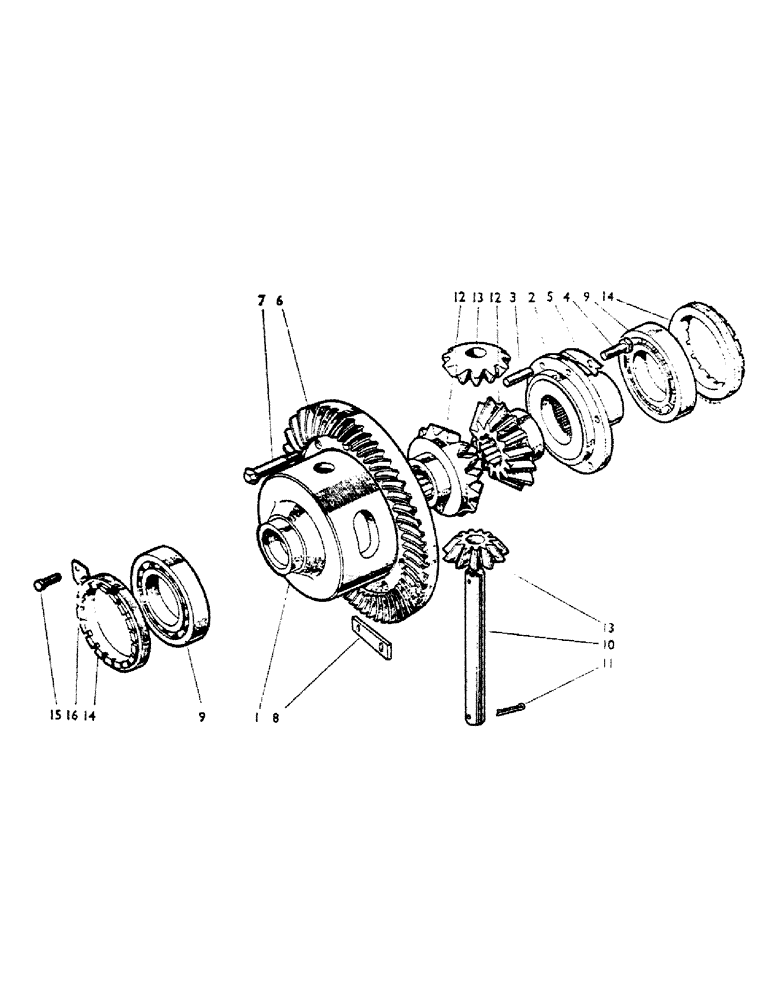

Запчасти Case IH 990A (32) - DIFFERENTIAL Gearbox

1

K908780

HOUSING

Cage--Differential (Supersedes 905663)

1шт.

K905663

SPARE PART

Cage

1шт.

K903186

Oil Retainer Used with 905663

1шт.

K602701

BOLT

Setscrew, 1/4 UNC x 1/2 in. Used with 905663

6шт.

K903188

Oil Scraper Used with 905663

1шт.

K12121

SCREW

2 BA x 1/2 in. Used with 905663

2шт.

K19488

SPRING WASHER

Spring Washer, 3/16 in. Used with 905663

2шт.

K907375

Support Rod Used with 905663

1шт.

280136

NUT,3/8"-16, G8

Used with 905663 3/8"-16, G8

1шт.

2

K903184

FLANGE

End Plate--Differential

1шт.

3

K14542

CONE WASHER

Dowel 3/8 in. dia. x 3/4 in.

3шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

5

K903185

WASHER

Tab Washer

3шт.

6

K904174

GEAR

Bevel Pinion and Spiral Gear (7/43 Teeth)

1шт.

7

K905664

WHEEL BOLT

12шт.

8

K30236

WASHER

Tab Washer

6шт.

280717

NUT,7/16"-14, G5

12шт.

9

K19010

BALL BEARING

2шт.

10

K30233

RING, SNAP

Pin--Differential

1шт.

11

K19542

PIN

Split Pin, 5/32 x 1 5/8 in.

2шт.

12

K30234

CONE PINION

Wheel--Differential

2шт.

13

K15020

NO LONGER SERVICED

Pinion--Differential

2шт.

14

K15007

RING, LOCKING

Adjuster Wheel

2шт.

15

K602801

BOLT (SPREADER)

Setscrew, 5/16 UNC x 1/2 in.

2шт.

16

K13015

WASHER

Lock Plate

2шт.
