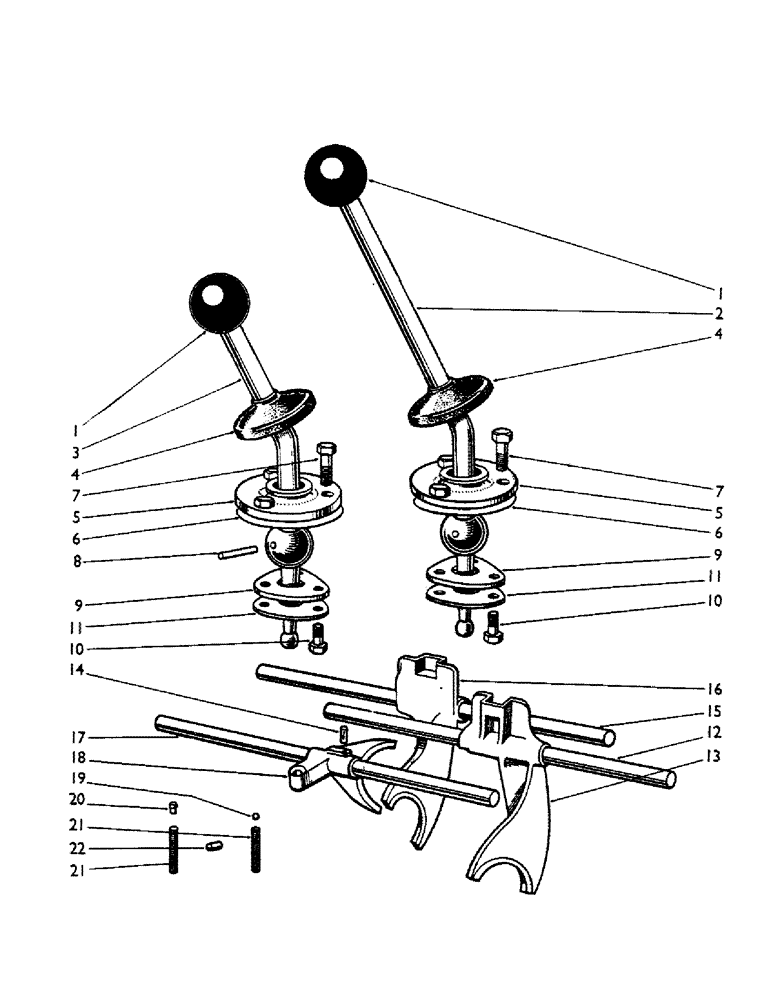

Запчасти Case IH 990A (31) - SELECTOR MECHANISM, GEARBOX Gearbox

1

K902270

KNOB

2шт.

2

K901686

NO LONGER SERVICED

Gear Lever (1, 2, 3 and R.)

1шт.

3

K901684

CONTROL LEVER

Range Lever (High/Low)

1шт.

K908433

SELECTOR

Gear Lever 12-Speed Gearbox

1шт.

K908572

GEAR

Knob 12-Speed Gearbox

1шт.

4

K903932

NO LONGER SERVICED

Dirt Excluder

3шт.

5

K915135

SUPPORT

Ball Housing (Replaces 901787) 6-Speed Gearbox

2шт.

6

K901835

GASKET

6-Speed Gearbox

2шт.

7

K602705

SCREW

Setscrew, 1/4 UNC x 1 in.

9шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

9шт.

8

K623726

PIN

Mills Pin, 1/4 x 1 1/2 in.

3шт.

9

K903074

SUPPORT

Plate--Ball (Replaces 30433)

3шт.

10

K690456

SCREW

Setscrew, 3/16 Whit. x 3/8 in.

9шт.

11

K904386

WASHER

Tab Washer

3шт.

12

K30424

SELECTOR

Rod First and reverse gears, 6-Speed Gearbox

1шт.

13

K30427

SELECTOR

Fork First and reverse gears

1шт.

14

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, , Mills, first and reverse gears 3/16" x 1 1/4", Type A

1шт.

14

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, , Mills, second and third gears 3/16" x 1 1/4", Type A

1шт.

14

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, , Mills, high and low range 3/16" x 1 1/4", Type A

1шт.

15

K30425

SELECTOR

Rod Second and third gears 6-Speed Gearbox

1шт.

15

K908386

SELECTOR

Rod Second and third gears 12-Speed Gearbox

1шт.

16

K30428

SELECTOR

Fork Second and third gears

1шт.

17

K30426

SELECTOR

Rod High and low range 6-Speed Gearbox

1шт.

17

K908388

SELECTOR

Rod High and low range 12-Speed Gearbox

1шт.

18

K30429

SELECTOR

Fork High and low range

1шт.

19

K13506

BALL

Selector Ball

2шт.

20

K88736

PLUNGER

Selector Plunger

1шт.

21

K13507

SPRING

Selector Spring

3шт.

22

K30430

LOCKING DEVICE

Gear Lock

1шт.
