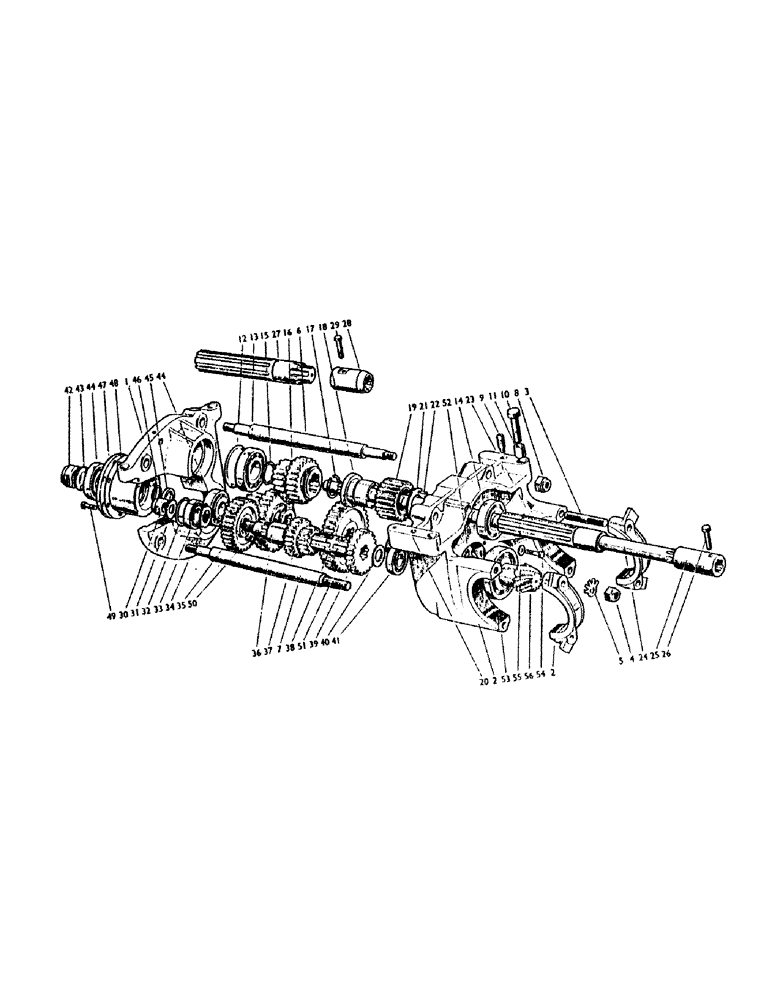

Запчасти Case IH 990A (28) - GEARBOX Gearbox

K961020

SPARE PART

Gearbox, 6-Speed (Complete with Differential), Livedrive

1шт.

K961021

Gearbox (Complete with Differential), Non-Livedrive

1шт.

K961062

Gearbox, 12-Speed (Complete with Differential), Livedrive

1шт.

1

K905675

SPARE PART

End Plate--Front

1шт.

2

K961022

NO LONGER SERVICED

End Plate--Rear (Complete with Bearing Caps)

1шт.

3

K608604

Stud, Special--Cap 961022

4шт.

4

K607006

NUT

5/8 UNC 961022

4шт.

5

K11590

NO LONGER SERVICED

Tab Washer 961022

4шт.

6

K906240

BAR

Spacing Bar--Top 6-Speed Gearbox

2шт.

6

K908389

BAR

Spacing Bar--Top 12-Speed Gearbox

2шт.

7

K906241

BAR

Spacing Bar--Bottom 6-Speed Gearbox

2шт.

7

K908390

BAR

Spacing Bar--Bottom, L.H. 12-Speed Gearbox

1шт.

7

K908391

BAR

Spacing Bar--Bottom, R.H. 12-Speed Gearbox

1шт.

8

K607331

NUT

Nyloc Nut

6шт.

9

K908211

DOWEL

(Threaded) Alternatives

2шт.

9

K910522

STUD

Dowel (Plain) Alternatives

2шт.

10

K601306

BOLT

--Special

4шт.

11

K903454

BOLT

Bush--End Plates Drive Shaft and Gears

4шт.

13

K19081

BALL BEARING

Bearing

1шт.

14

K19047

BALL BEARING

Bearing

1шт.

15

K12922

RING, SNAP

Circlip

1шт.

16

K906606

GEAR

Range Pinion (19/30 Teeth)

1шт.

17

K13809

RING, SNAP

Circlip

1шт.

18

K85241

CARRIER

Bush--Reverse Gear

1шт.

19

K902202

GEAR

Reverse Gear (25 Teeth) and Bush

1шт.

20

K24773

BUSHING

--Reverse Gear

1шт.

21

K908940

WASHER

Thrust Washer (Supersedes 85242)

1шт.

22

K34594

PIN

1шт.

23

K903455

DRIVE SHAFT

(6-Speed) Livedrive

1шт.

24

K89180

SPARE PART

Live PTO Cardan Shaft (6-Speed, Livedrive Gearbox)

1шт.

24

K908363

SHAFT

Live PTO Cardan Shaft (12-Speed, Livedrive Gearbox)

1шт.

25

K89181

COUPLING, BREAK AWAY

Coupling Sleeve Livedrive

1шт.

26

K600141

BOLT

1/4 UNC x 1 7/8 in. Livedrive

1шт.

86625061

NUT,1/4"-20, GB

Slotted Nut, 1/4 UNC Livedrive

1шт.

K19522

PIN

Split Pin Livedrive

1шт.

27

K903456

DRIVE SHAFT

Non-Livedrive

1шт.

28

NLS

NO LONGER SERVICED

Coupling Sleeve Non-Livedrive

1шт.

29

K600317

BOLT

5/16 UNC x 2 1/4 in. Non-Livedrive

1шт.

K607101

NUT

Slotted Nut, 5/16 UNC Non-Livedrive

1шт.

K19522

PIN

Split Pin, Non-Livedrive Layshaft and Gears

1шт.

K908161

GEAR

Layshaft with Integral Gears, Alternative to separate Shaft and

1шт.

30

K24875

NUT

Nyloc Nut, 7/8 BSF

1шт.

31

K19497

WASHER

7/8 in.

1шт.

33

K19158

ROLLER

Bearing

1шт.

34

K88906

SPACER

Washer

1шт.

35

K906603

GEAR

High Speed Gear (34 Teeth)--Layshaft

1шт.

36

K30290

BUSHING

Spacer Bush

1шт.

37

K906607

SHAFT

Low and Medium Speed Gear (17/24 Teeth)--Layshaft

1шт.

38

K88911

SHAFT

Layshaft

1шт.

39

K901633

GEAR

Reverse Gear (28 Teeth)

1шт.

40

K88906

SPACER

Washer

1шт.

41

K19158

ROLLER

Bearing Bevel Pinion Shaft

1шт.

42

K84912

NUT

Nyloc Nut, 1 1/8 BSF, L.H.

1шт.

43

K14687

WASHER

1 1/8 in.

1шт.

44

K24546

BEARING, ROLLER

Taper Roller Bearing

2шт.

45

K81984

BUSHING

Distance Piece

1шт.

47

K905677

BEARING

Housing

1шт.

49

K602906

SCREW

Setscrew, 3/8 UNC x 1 1/4 in.

6шт.

K19482

SPRING WASHER

Spring Washer

6шт.

50

K906604

GEAR

Driven Gear--High and Medium (31/40 Teeth)

1шт.

51

K906605

GEAR

Driven Gear--Low (47 Teeth)

1шт.

52

K621438

RING, SNAP

Circlip, 1 7/8 in.

1шт.

53

K19138

BEARING, ROLLER

Roller Bearing

1шт.

54

K600008

BOLT

1/4 UNC x 1 3/4 in. (Replaces 600007)

1шт.

K607300

NUT

Nyloc Nut, 1/4 UNC

1шт.

55

K64852

NO LONGER SERVICED

Special Washer

2шт.

56

K904174

GEAR

Bevel Pinion and Spiral Gear (7/43 Teeth)

1шт.

K908499

BUSHING

Distance Piece 12-Speed Gearbox

1шт.
