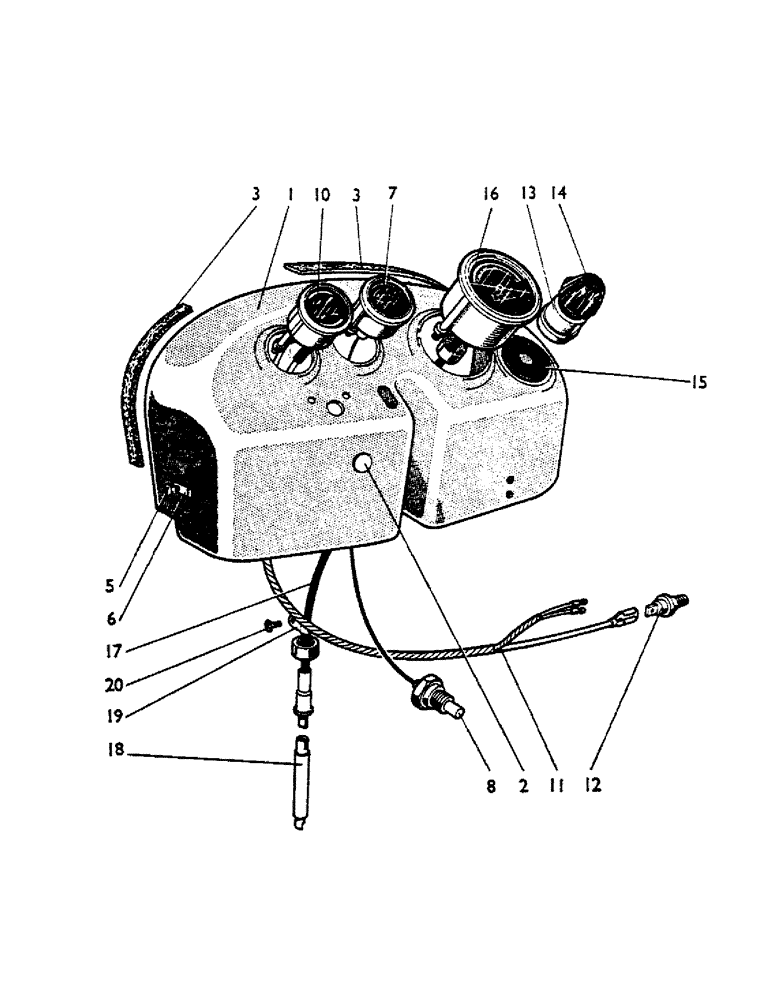

Запчасти Case IH 990A (52) - INSTRUMENT PANEL Engine Controls & Instruments

1

K903443

Instrument Panel

1шт.

2

K627870

PLUG

Button

1шт.

3

K903513

STRIP

Seating Strip

2шт.

5

K624791

SCREW

Sheet Metal Screw

3шт.

6

K15539

Captive Nut

3шт.

7

K910618

ELECTRICAL GAUGE

Thermo Gauge (Replaces 907988) U438 (908031)

1шт.

8

K907985

SPARE PART

Sender U438 (908031)

1шт.

K626444

WASHER

Copper Washer U438 (908031)

1шт.

K11885

SPRING

Washer U438 (908031)

2шт.

K914326

SWITCH

Lead--lsolating Switch to Gauge, U438 (908031) (Supersedes 907997)

1шт.

K907998

ELECTRICAL GAUGE

Lead--Thermo Gauge to Connector U438 (908031)

1шт.

K907999

ELECTRICAL WIRE

Lead--Connector to Sender U438 (908031)

1шт.

K903487

Blanking Plate--Thermometer

1шт.

10

K908351

INDICATOR LIGHT

Warning Light Assembly (less Harness), Supersedes 907476

1шт.

11

K908884

HARNESS

--lgnition and Oil Warning Lights, From Tractor 444553

1шт.

11

K908352

HARNESS

--lgnition and Oil Warning Lights, To Tractor 444552

1шт.

12

K903851

PRESSURE SWITCH

Switch--Oil Warning

1шт.

K15030

WASHER

Copper Washer, 1/8 BSP

1шт.

K901836

IGNITION SWITCH

Lighting Switch Assembly

1шт.

13

K901980

SPARE PART

Switch 901836

1шт.

14

K901981

KNOB

901836

1шт.

15

K901982

PLATE

Escutcheon Plate 901836

1шт.

K14658

O-RING,0.07" Thk x 0.239" ID

O Ring

1шт.

K907387

, Serial Range: Transfer--"Pull-Stop"

1шт.

K908524

NO LONGER SERVICED

Transfer--"To Stop Lift Knob and Release

1шт.

K908561

SPARE PART

Gear Selection Chart 12-Speed Gearbox

1шт.

K24775

Sheet Metal Screw, 12-Speed Gearbox

2шт.

TRACTORMETER

1шт.

16

K907091

NO LONGER SERVICED

Tractormeter (MPH)

1шт.

K907092

SPARE PART

Tractormeter (KPH)

1шт.

17

K901132

CABLE

(Inner and Outer)

1шт.

K904133

NO LONGER SERVICED

Inner Cable

1шт.

18

K906554

HITCH PIN

Drive Spindle

1шт.

To Engine No. 40119 (AD4/47A), 34574 (AD4/47B)

1шт.

K10518

BUCKLE

Clip

2шт.

19

K19917

Cable Clip To Tractor 444552

1шт.

20

K624792

SCREW

--Parker Kalon, No. 10, Type A To Tractor 444552

1шт.

K908035

NO LONGER SERVICED

HORN AND PUSH BUTTON (U439)

1шт.

K907861

NO LONGER SERVICED

Horn and Bracket

1шт.

K908033

CARRIER

Plate--Horn

1шт.

K602702

SCREW

Setscrew, 1/4 UNC x 5/8 in.

2шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

2шт.

K607000

NUT

1/4 UNC

2шт.

K608214

STUD

--Inlet Manifold

2шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

2шт.

280136

NUT,3/8"-16, G8

(Replaces 607503) 3/8"-16, G8

2шт.

K19911

SPARE PART

Horn Push

1шт.

K908047

PAD

Seating Pad

1шт.

K624718

SCREW

Setscrew, 5 BA x 3/4 in. (Replaces 19392)

2шт.

K19487

WASHER

Spring Washer, 1/8 in.

2шт.

K19419

NUT

5 BA

2шт.

K914325

Lead--Isolating Switch to Horn Push From Tractor 463765

1шт.

K908874

X

Lead--Isolating Switch to Horn Push, To Tractor 463764 (Supersedes 907305)

1шт.

K908019

CABLE

Lead--Horn, Serial Range: Push-Connector

1шт.

K908020

, Serial Range: Lead--Connector-Horn

1шт.

K907996

CABLE

, Serial Range: Lead--Horn-Earth

1шт.
