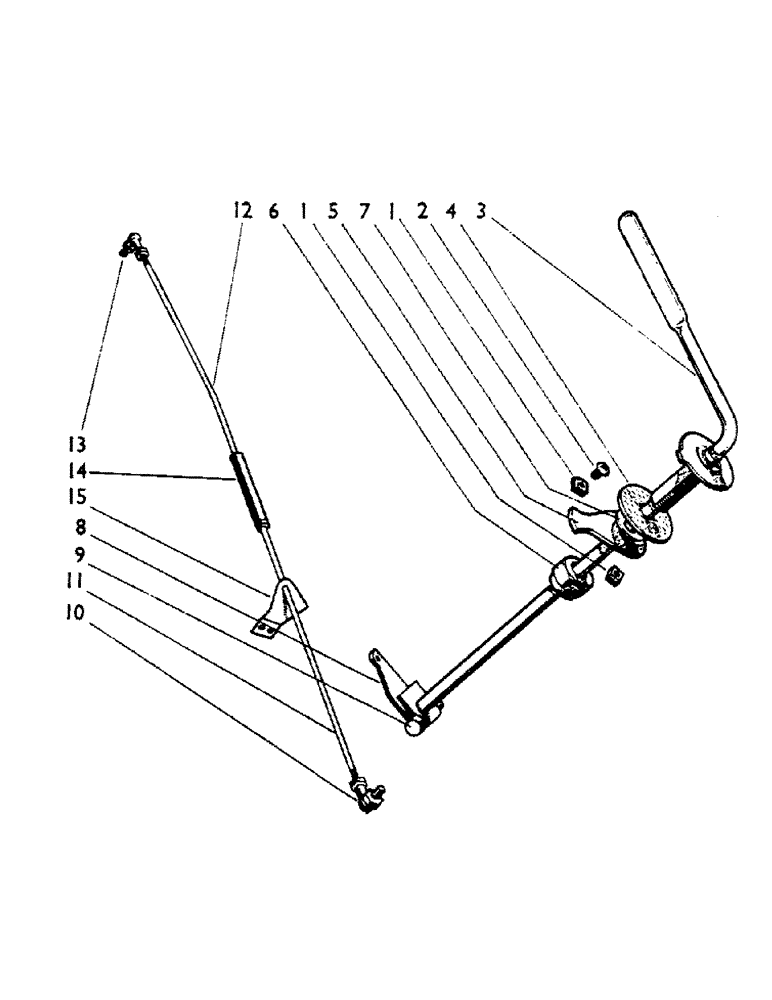

Запчасти Case IH 990A (40) - HAND THROTTLE Engine Controls & Instruments

1

K905701

Stop Pad

2шт.

To Tractor 459690

1шт.

1

K910157

WASHER

Stop Pad

2шт.

From Tractor 459691

1шт.

2

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

Pan Head, 1/4 UNC x 5/8 in.

2шт.

To Tractor 459690

1шт.

2

K603924

SCREW

1/4 UNC x 1/2 in. (Replaces 603934)

2шт.

From Tractor 459691

1шт.

K19470

WASHER

1/4 in.

2шт.

To Tractor 459690

1шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

2шт.

From Tractor 459691

1шт.

425-144

JAM NUT,Jam, 1/4"-20, G5

Locknut, 1/4 UNC

2шт.

To Tractor 459690

1шт.

K607000

NUT

1/4 UNC

2шт.

From Tractor 459691

1шт.

3

K905634

Hand Lever

1шт.

To Tractor 459690

1шт.

3

K910154

Hand Lever

1шт.

From Tractor 459691

1шт.

4

K85546

DISC

Friction Disc

1шт.

5

K903800

Stop Plate

1шт.

To Tractor 459690

1шт.

6

K623003

NUT

Nyloc Nut, 5/8 BSF

1шт.

7

K626740

WASHER

Belleville Washer

1шт.

K19475

WASHER

5/8 in.

1шт.

8

K89372

LEVER

--Throttle Control

1шт.

9

K600005

BOLT

1/4 UNC x 1 3/8 in.

1шт.

K607000

NUT

1/4 UNC

1шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

1шт.

10

K12431

BALL JOINT

1шт.

K19470

WASHER

1/4 in.

1шт.

11

K89370

CONTROL BLOCK

Throttle Control Rod--Hand Lever End

1шт.

12

K89371

ROD

Throttle Control Rod--Pump End

1шт.

13

K12431

BALL JOINT

1шт.

14

K38598

SLEEVE

Adjusting Sleeve

1шт.

K19401

NUT

1/4 BSF

5шт.

K12285

NUT

1/4 BSF, L.H.

1шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

2шт.

15

K89823

GUIDE

Bracket--Throttle Control Rod

1шт.
