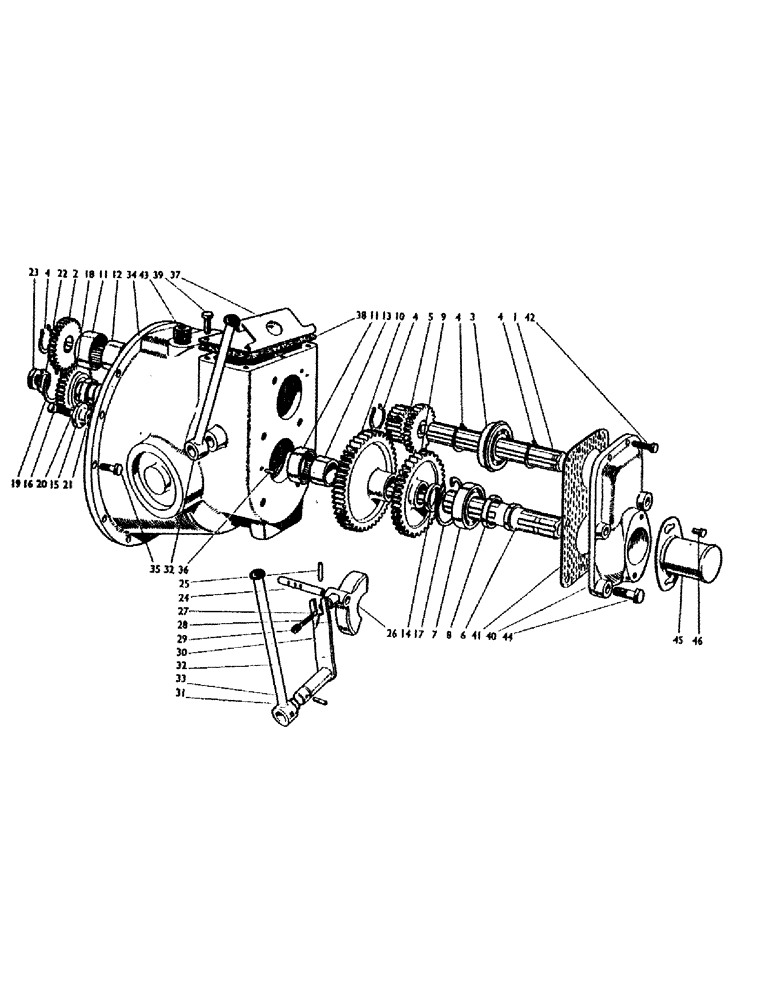

Запчасти Case IH 990A (36) - POWER TAKE-OFF UNIT Auxiliary Drive Units

K961036

PTO Unit Livedrive

1шт.

K961035

PTO Unit Non-Livedrive

1шт.

1

K906735

DRIVE SHAFT

Driveshaft Livedrive

1шт.

1

K906734

DRIVE SHAFT

Driveshaft Non-Livedrive

1шт.

2

K906731

GEAR

Pump Drive Gear

1шт.

3

K15172

BALL BEARING,28.57mm ID x 77.79mm OD x 20.64mm W

Ball Journal with Snap Ring

1шт.

4

K12207

RING, SNAP

Circlip, 1 1/8 in. dia. ext. To Tractor 448231

4шт.

4

K621535

RING, SNAP

Circlip, 1 3/64 dia. ext. From Tractor 448232

4шт.

5

K906688

GEAR

Speed Change Pinion

1шт.

6

K906691

SHAFT

Driven Shaft

1шт.

7

K19021

BALL

Bearing

1шт.

8

K11119

OIL SEAL

Oil Seal

1шт.

9

K906689

GEAR

--High Speed

1шт.

10

K906692

GEAR

--Low Speed

1шт.

11

K620266

NEEDLE BEARING

Bearing

2шт.

12

K906693

RING RACE

Inner Race--Driveshaft

1шт.

13

K906694

BEARING

Inner Race--Driven Shaft

1шт.

14

K904431

BUSHING

Distance Piece

1шт.

15

K909349

PIN

Retaining Washer (with Locking Pin) (Supersedes 906695)

1шт.

16

K606894

SCREW

Capscrew, 7/16 UNC x 1 in.

1шт.

17

K13053

RING, SNAP

Circlip, 72 mm. int.

1шт.

18

K906696

GEAR

Idler Gear

1шт.

19

K13170

RING, SNAP

Circlip, 52 mm. int.

2шт.

20

K24489

BALL BEARING

Ball Journal Bearing

1шт.

21

K906697

PIN

Bearing Pin

1шт.

22

K906698

WASHER

Tab Washer

1шт.

23

K617026

NUT

Special Nut, 3/4 UNF

1шт.

24

K906699

PIN

Selector Rod

1шт.

25

K906700

PIN

Retaining Pin

1шт.

26

K906701

SELECTOR

Fork

1шт.

27

K17063

BALL

Steel Ball, 1/4 in.

1шт.

28

K24831

SPRING

1шт.

29

K606021

SCREW

Grubscrew, 5/16 UNC

1шт.

30

K906702

SELECTOR

Lever

1шт.

31

K31682

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

O Ring

1шт.

32

K913961

NO LONGER SERVICED

Operating Lever (Supersedes 906705)

1шт.

33

K11246

PIN

Mills Pin, 1/4 x 1 1/2 in.

1шт.

34

K906732

HOUSING

Case

1шт.

To Tractor 476324

1шт.

34

K913987

NO LONGER SERVICED

Case

1шт.

From Tractor 476325

1шт.

K619528

PLUG

7/8 UNF

1шт.

From Tractor 476325

1шт.

K30085

GASKET

Fibre Washer, 7/8 in.

1шт.

From Tractor 476325

1шт.

K89175

GASKET

2шт.

K24827

PIN

Headed Dowel, 7/16 dia. x 1 3/4 in. Case and support plate to rear axle casing

1шт.

K605157

SCREW

7/16 UNC x 1 1/8 in. Case and support plate to rear axle casing

1шт.

35

K600605

BOLT

7/16 UNC x 1 7/8 in. Case and support plate to rear axle casing

11шт.

K19483

SPRING WASHER

Spring Washer, 7/16 in.

11шт.

36

K14577

DOWEL

1/4 in.

2шт.

37

K906683

Top Cover

1шт.

To Tractor 476324

1шт.

37

K914073

Top Cover

1шт.

From Tractor 476325

1шт.

38

K914074

GASKET

--Top Cover (Supersedes 906684)

1шт.

K906685

NO LONGER SERVICED

Transfer--Gear Positions

1шт.

39

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Setscrew, 5/16 UNC x 5/8 in.

6шт.

To Tractor 476324

1шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

6шт.

To Tractor 476324

1шт.

39

K602902

SCREW

Setscrew, 3/8 UNC x 3/4 in.

6шт.

From Tractor 476325

1шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

6шт.

From Tractor 476325

1шт.

40

K906686

COVER

End Cover

1шт.

41

K906687

NO LONGER SERVICED

Gasket

1шт.

42

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

Setscrew, 5/16 UNC x 1 in.

1шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

2шт.

43

K14518

PLUG

Taper Plug, 3/4 BSP

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

1шт.

K15498

SEALING WASHER

ing Washer, 5/16 in.

1шт.

44

K608311

STUD

7/16 UNC x 2 5/16 in. (Replaces 600603)

4шт.

K19483

SPRING WASHER

Spring Washer, 7/16 in.

4шт.

280717

NUT,7/16"-14, G5

Washer, 7/16 in.

4шт.

K906893

GUARD

PTO Guard U378 (906988)

1шт.

45

K909111

COVER

--PTO Shaft

1шт.

K626682

WASHER

5/16 in.

2шт.

K602840

SCREW

Setscrew, 5/16 UNC x 1/2 in.

2шт.
