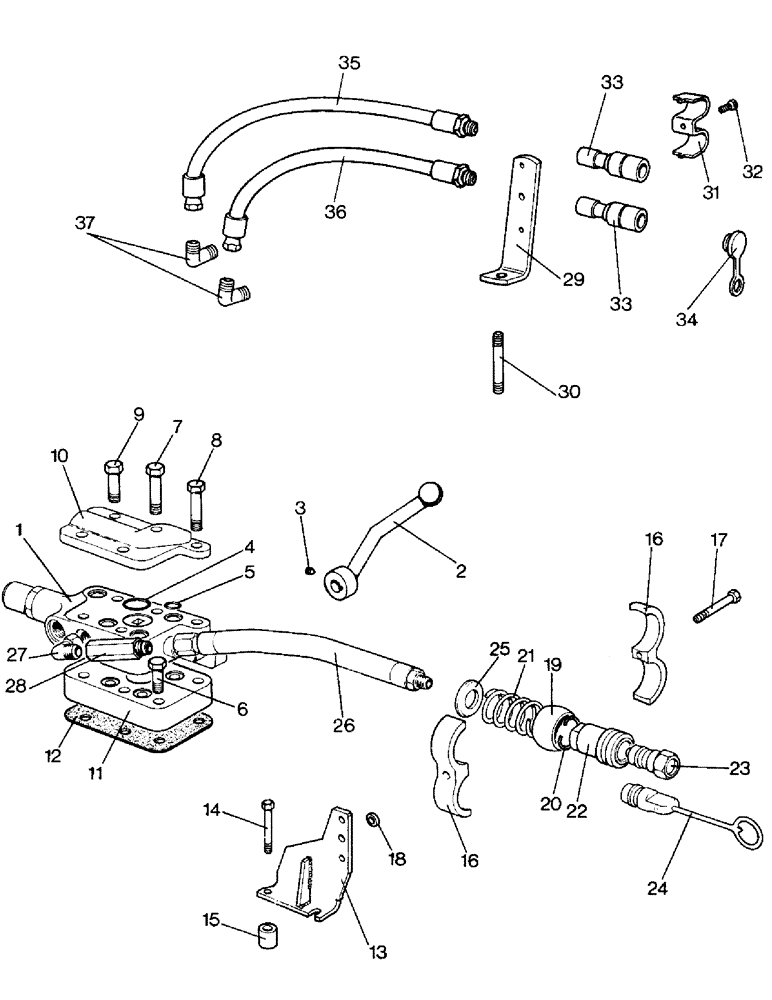

Запчасти Case IH 990 (E16-1) - SELECTAMATIC HYDRAULIC SYSTEM, SINGLE LIVE TAKE-OFF VALVE UNITS OPTIONAL EQUIPMENT (07) - HYDRAULIC SYSTEM

K918957

NO LONGER SERVICED

SINGLE LIVE TAKE-OFF VALVE UNIT - U844

1шт.

1

K943825

VALVE

TAKE-OFF VALVE ASSEMBLY - See Figure E20-1

1шт.

2

K946382

LEVER

HAND-LEVER - cranked

1шт.

K622382

KEY

- Woodruff no. 403

1шт.

3

K606322

SCREW

GRUBSCREW - 5/16 UNC x 3/8 in.

1шт.

4

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

"O" RING - 1-3/16 in. internal dia.

1шт.

5

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

"O" RING - 11/16 in. internal dia.

5шт.

6

K600510

BOLT

- 3/8 UNC x 2 in.

1шт.

7

K600511

BOLT

- 3/8 UNC x 4-1/4 in.

2шт.

8

K600512

BOLT

- 3/8 UNC x 4-1/2 in.

1шт.

9

K600515

BOLT

- 3/8 UNC x 2-3/4 in.

2шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in.

6шт.

10

K919242

COVER

1шт.

11

K962085

BASE

PLATE

1шт.

12

K917387

GASKET

1шт.

K930230

NO LONGER SERVICED

PIPES AND AEROQUIP COUPLINGS - U1400

1шт.

13

K940752

MOUNTING PARTS

SUPPORT BRACKET

1шт.

14

K600896

BOLT

- 1/2 UNC x 3-1/2 in.

2шт.

15

K627074

BUSHING

DISTANCE PIECE

1шт.

16

K924286

MOUNTING PARTS

MOUNTING FRAME

2шт.

17

K600703

BOLT

- 7/16 UNC x 3 in.

1шт.

18

K627056

BUSHING

DISTANCE PIECE

1шт.

K626344

WASHER, LOCK

SPRING WASHER - 7/16 in.

1шт.

K19474

HARDWARE

WASHER - 1/2 in.

1шт.

280717

NUT,7/16"-14, G5

1шт.

19

K924284

RING

GIMBAL RING

2шт.

20

K924285

RING

RETAINING RING

2шт.

21

K625249

SPRING

2шт.

K921216

COUPLING, BREAK AWAY

COUPLING - complete, Aeroquip, Includes: Ref. 22 & 23

2шт.

22

K929247

BREAKER POINTS

COUPLING - tractor half, Aeroquip

1шт.

23

K921982

BREAKER POINTS

COUPLING - implement half, Aeroquip

1шт.

24

K921217

PLUG

DUST COVER - quick release coupling, tractor half

2шт.

K965185

COVER

DUST COVER - quick release coupling, implement half

2шт.

25

K626794

WASHER

- special

2шт.

26

K924710

HOSE

FLEXIBLE PIPE - 1/2 BSP - 3/4 UNF x 16-1/4 in.

2шт.

27

K622114

FITTING

ELBOW - 3/4 UNF, Serial Range: pipes-valve

2шт.

28

K945364

PIPE

CONNECTOR - 3/4 UNF

1шт.

K931464

PIPE

S AND BRUNING COUPLINGS - U1800, Includes: Ref. 29 - 37 and "o" ring

1шт.

29

K949670

BRACKET

SUPPORT BRACKET

1шт.

30

K608424

STUD

- 1/2 UNC x 4-3/16 in., special, replaces K608411, Serial Range: (Bracket-PTO)

1шт.

K19484

LOCK WASHER

SPRING WASHER - 1/2 in., Serial Range: (Bracket-PTO)

1шт.

280431

NUT,1/2"-13, G5

(Bracket to PTO) 1/2"-13, G5

1шт.

31

K949616

CLIP

CLAMP - coupling

1шт.

32

K602982

SCREW,3/8" - 16 x 3/4", Gr S

SETSCREW - 3/8 UNC x 3/4 in.

1шт.

K19472

WASHER

SPRING WASHER - 3/8 UNC

1шт.

33

A141156

COUPLING, BREAK AWAY

COUPLING - tractor half, Bruning (replaced K948595)

2шт.

34

K950297

PLUG

DUST PLUG - Bruning coupling

2шт.

35

K949705

HOSE

FLEXIBLE PIPE - 3/4 - 7/8 UNF x 16-7/8 in.

1шт.

36

K949706

HOSE

FLEXIBLE PIPE - 3/4 - 7/8 UNF x 14-3/8 in.

1шт.

37

K622114

FITTING

ELBOW - 3/4 UNF, Serial Range: pipes-valve

2шт.

K623591

O-RING

"O" RING - 21/32 in., elbow

1шт.
