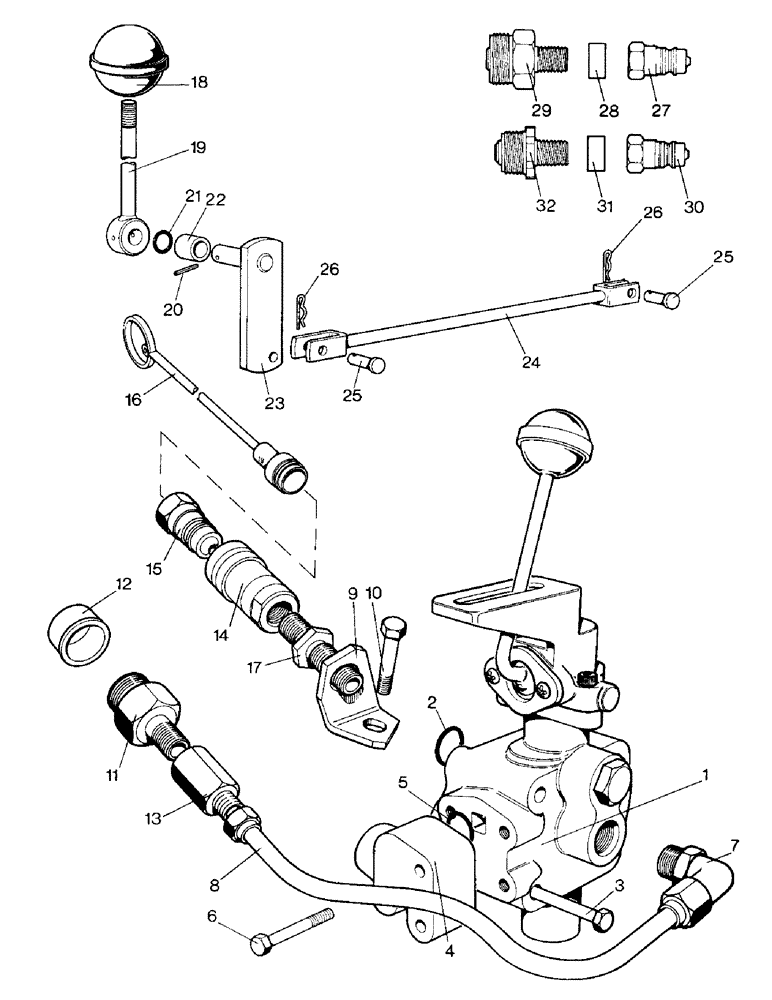

Запчасти Case IH 990 (E14-1) - SELECTAMATIC HYDRAULIC SYSTEM, THREE-WAY TAKE-OFF VALVE UNITS OPTIONAL EQUIPMENT (07) - HYDRAULIC SYSTEM

K922498

NO LONGER SERVICED

THREE-WAY VALVE - with Exactor coupling, U1230 (990, 995, 996, 990G, 995G, 996G)

1шт.

K922497

VALVE

THREE-WAY VALVE - with quick-release coupling, U1229 (990, 995, 996, 990G, 995G, 996G)

1шт.

K918360

VALVE

THREE-WAY VALVE - without pipe, U1054 (990, 995, 996, 990G, 995G, 996G)

1шт.

K932109

KIT

THREE-WAY VALVE - with Exactor coupling, U2006 (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

K931855

KIT

THREE-WAY VALVE - with quick-release coupling, U1917 (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

K931856

SPARE PART

CONTROL LEVER AND LINKAGE - three-way valve, U1918 (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

1a

K951162

SELECTOR

VALVE ASSEMBLY - See Figure E15-1 (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

1b

K948000

SELECTOR

VALVE ASSEMBLY - See Figure E15-1 (990, 995, 996, 990G, 995G, 996G)

1шт.

2

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING - 3/4 in. internal dia. (990, 995, 996, 990G, 995G, 996G)

2шт.

2

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING - 3/4 in. internal dia. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

3

K600416

BOLT

- 3/8 UNC x 3 in.

4шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in.

4шт.

4

K919614

ADAPTER

ADAPTOR -, Serial Range: pipe-valve

1шт.

5

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

"O" RING - 11/16 in internal dia.

1шт.

6

K600209

BOLT

- 5/16 UNC x 2 in.

3шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

3шт.

7

K622114

FITTING

ELBOW - 3/4 UNF, 90 degrees

1шт.

K617585

LOCK NUT

LOCKNUT - 3/4 UNF

1шт.

K626734

WASHER

- 3/4 in.

1шт.

K623591

O-RING

"O" RING - 5/8 in. internal dia.

1шт.

8

K921215

PIPE

-, Serial Range: valve-coupling

1шт.

9

K921160

BRACKET

1шт.

10

K600816

BOLT

- 1/2 UNC x 3-1/2 in.

1шт.

K626686

WASHER

- 1/2 in.

1шт.

11

K921964

COUPLING, BREAK AWAY

EXACTOR COUPLING - tractor half (990, 995, 996, 990G, 995G, 996G)

1шт.

12

K960657

BREAKER POINTS

DUST COVER - Exactor coupling (990, 995, 996, 990G, 995G, 996G)

1шт.

13

K952245

ADAPTER

ADAPTOR - 1/2 BSP, pipe to Exactor coupling (990, 995, 996, 990G, 995G, 996G)

1шт.

K921216

COUPLING, BREAK AWAY

QUICK-RELEASE COUPLING - complete, Includes: Ref. 14 & 15

1шт.

14

K929247

BREAKER POINTS

QUICK RELEASE COUPLING - tractor half

1шт.

15

K921982

BREAKER POINTS

QUICK-RELEASE COUPLING - hose half

1шт.

16

K921217

PLUG

DUST COVER - quick release coupling, tractor half

1шт.

K965185

COVER

DUST COVER - quick release coupling, implement half

1шт.

K626783

WASHER

SEALING WASHER - 7/8 in.

1шт.

K19647

NUT

LOCKNUT - 1/2 BSP

1шт.

17

K921178

ADAPTER

ADAPTOR - 1/2 BSP, pipe to quick-release coupling

1шт.

18

K950493

KNOB

(990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

19

K950410

HANDLE

HAND LEVER (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

20

K623940

PIN

SPRING PIN (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

21

K623687

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING - 1/2 in. internal dia. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

22

K621340

BUSHING

BUSH (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

23

K950408

SPINDLE

LEVER AND SHAFT (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

24

K950409

ROD

CONNECTING ROD (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

25

K950866

LARGE PIN

CLEVIS PIN (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

26

K950865

CLIP

SPRING CLIP (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

K918520

NO LONGER SERVICED

UNIVERSAL COUPLING - U1122, Includes: Ref. 27 - 29

1шт.

27

K921982

BREAKER POINTS

QUICK-RELEASE COUPLING - hose half

1шт.

K15737

SEALING WASHER

- 7/8 in.

2шт.

28

K627134

SPACER

DISTANCE PIECE

1шт.

29

K921964

COUPLING, BREAK AWAY

EXACTOR COUPLING - tractor half

1шт.

K918521

COUPLING

UNIVERSAL COUPLING - U1123, Includes: Ref. 30 - 32

1шт.

30

K921982

BREAKER POINTS

QUICK-RELEASE COUPLING - hose half

1шт.

K15737

SEALING WASHER

- 7/8 in.

2шт.

31

K627134

SPACER

DISTANCE PIECE

1шт.

32

K921984

COUPLING, BREAK AWAY

DOWTY COUPLING - tractor half

1шт.
