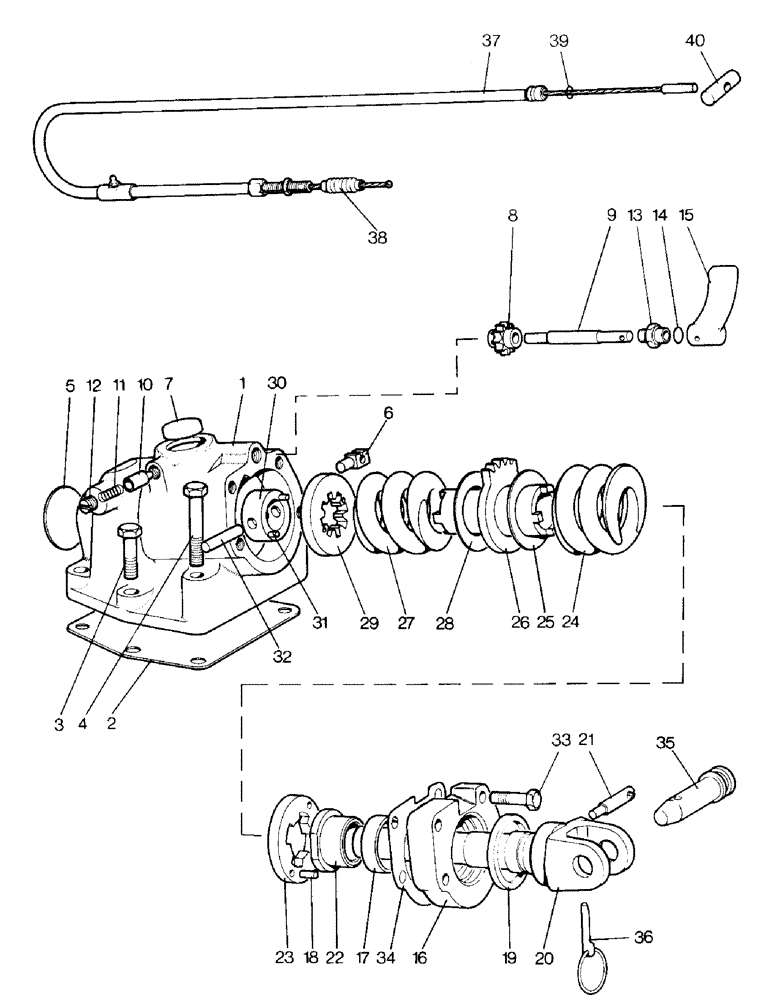

Запчасти Case IH 990 (E12-1) - SELECTAMATIC HYDRAULIC SYSTEM, SELECTIVE SENSING UNIT - U1376 (K930052) OPTIONAL EQUIPMENT (07) - HYDRAULIC SYSTEM

1

K940028

SPRING

HOUSING

1шт.

2

K926451

GASKET,0.56mm Thk

(Housing to PTO case)

1шт.

3

K600805

BOLT

- 1/2 UNC x 1-7/8 in. (Housing to PTO case)

4шт.

4

K600815

BOLT

- 1/2 NC x 3-1/4 in. (Housing to PTO case)

2шт.

K19484

LOCK WASHER

SPRING WASHER - 3/8 in. (Housing to PTO case)

6шт.

5

K623813

PLUG

CORE PLUG - 2-3/8 in.

1шт.

6

K912371

CABLE

SUPPORT - outer

1шт.

7

K623797

PLUG

CORE PLUG - 1-3/4 in.

1шт.

8

K929874

SELECTOR

PINION

1шт.

9

K940044

SELECTOR

SPINDLE

1шт.

K690338

PIN

SPRING PIN - 5/32 x 5/8 in.

1шт.

10

K946440

PLUNGER

- detent

1шт.

11

K625285

SPRING

- detent plunger

1шт.

12

K606281

SCREW

GRUBSCREW - 1/2 UNC

1шт.

13

K940045

BUSHING

SCREWED BUSH

1шт.

14

K623681

WIPER

RING - 1/2 in. internal dia.

1шт.

15

K940046

SELECTOR

LEVER

1шт.

K623727

GROOVED PIN,5/32" x 7/8", Type A

SPRING PIN - 5/32 x 7/8 in.

1шт.

K947303

SHAFT

ASSEMBLY, Includes: Ref. 16 - 32

1шт.

16

K964912

PLATE

END PLATE (replaced K947300), Includes: Ref. 17 & 18

1шт.

17

K621423

BUSHING

BUSH

1шт.

18

K940031

PIN

DOWEL - 1/4 x 3/4 in.

2шт.

19

K623460

WIPER

SEAL - 2-1/2 in. internal dia.

1шт.

20

K929808

SHAFT

1шт.

21

K940047

BRACKET

CABLE SUPPORT - INNER

1шт.

22

K940035

SLEEVE

1шт.

23

K947302

WASHER

THRUST WASHER

1шт.

24

K928315

SPRING

- 2.04 in. internal dia.

1шт.

25a

K928388

SHIM

- 0.003 in.

1шт.

25b

K928389

SHIM

- 0.007 in.

1шт.

25c

K928390

SHIM

- 0.015 in.

1шт.

26

K940036

SUPPORT

SPRING SUPPORT

1шт.

27

K928314

SPRING

- 1.76 in. internal dia.

1шт.

28a

K928392

SHIM

- 0.003 in.

1шт.

28b

K928393

SHIM

- 0.007 in.

1шт.

28c

K928394

SHIM

- 0.015 in.

1шт.

29a

K940039

WASHER

THRUST WASHER - 0.373 in. (Alternatives)

1шт.

29b

K940040

WASHER

THRUST WASHER - 0.365 in. (Alternatives)

1шт.

29c

K940041

WASHER

THRUST WASHER - 0.357 in. (Alternatives)

1шт.

30

K947867

COLLAR

- (With dowels), Includes: Ref. 31

1шт.

31

964984

STEPPED DOWEL (replaced K940043)

2шт.

32

K915117

PIN

RETAINING PIN - 3/8 x 2-1/4 in.

1шт.

33

K600606

BOLT

- 7/16 UNC x 2 in. (End, Serial Range: plate-housing)

4шт.

K194863

SPRING WASHER - 7/16 in. (End, Serial Range: plate-housing)

4шт.

34a

K940032

SHIM

- 0.005 in. (End, Serial Range: plate-housing)

1шт.

34b

K940033

SHIM

- 0.010 in. (End, Serial Range: plate-housing)

1шт.

34c

K940034

SHIM

- 0.030 in. (End, Serial Range: plate-housing)

1шт.

35

K919725

PIN,19.05mm OD x 111.13mm L

LINK PIN

1шт.

36

K66408

PIN

LINCH PIN AND RING

2шт.

37

K963417

LINK

CABLE

1шт.

38

K906182

RUBBER

DIRT EXCLUDER

1шт.

39

K690702

O-RING,1.59mm Thk x 6.75mm ID, 80 Duro

"O" RING - 1/4 in. internal dia.

1шт.

40

K915053

FITTING

PIN - 3/8 x 9/16 in., cable

1шт.

K617080

NUT

- no. 10 UNF

2шт.
