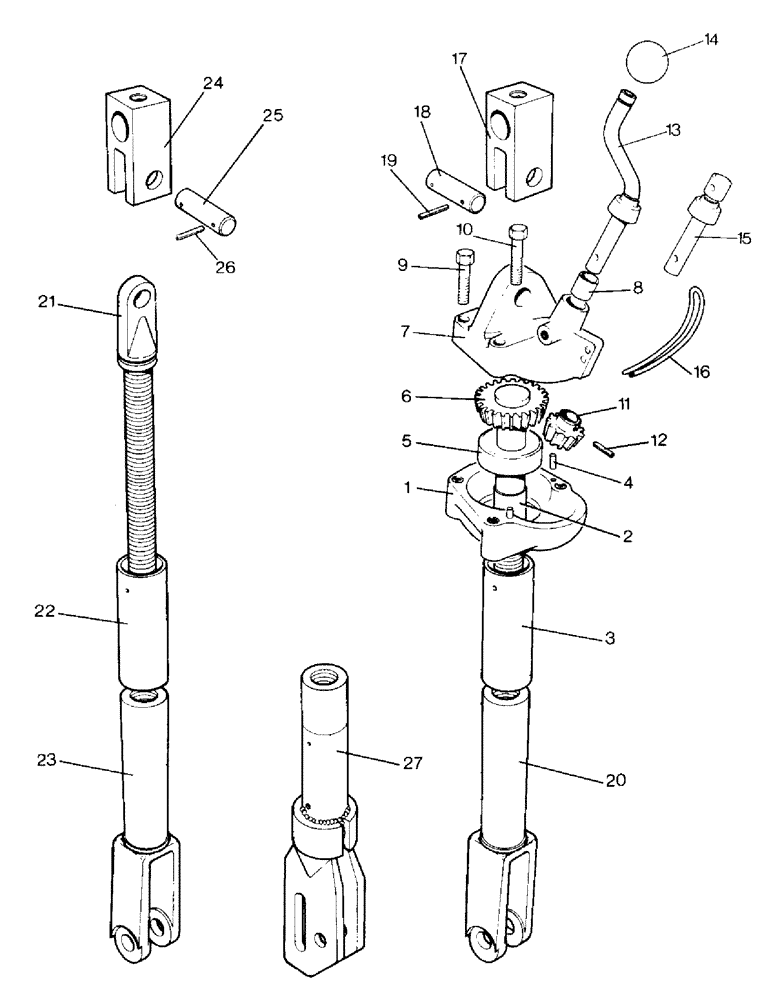

Запчасти Case IH 990 (E10-1) - SELECTAMATIC HYDRAULIC SYSTEM, LEVELLING LEVER AND LIFT ROD (07) - HYDRAULIC SYSTEM

K955763

LINKAGE

LEVELLING LEVER ASSEMBLY (990Q, 995Q, 996Q), Includes: Ref. 1A - 20B

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K940508

LEVER

LEVELLING LEVER ASSEMBLY (990Q, 995Q, 996Q), Includes: Ref. 1A - 20B

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

K940508

LEVER

LEVELLING LEVER ASSEMBLY (990, 995, 996, 990G, 995G, 996G), Includes: Ref. 1A - 20B

1шт.

K954076

LEVER

LEVELLING LEVER ASSEMBLY (990SK, 995SK, 996SK), Includes: Ref. 1A - 20B

1шт.

1a

K962977

HOUSING

GEAR HOUSING - with bush and tube (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q), Includes: Ref. 2 - 4

1шт.

1b

K962975

HOUSING

GEAR HOUSING - with brush and tube (990SK, 995SK, 996SK), Includes: Ref. 2 - 4

1шт.

2

K621339

BUSHING

BUSH - gear housing

1шт.

3a

K922657

TUBE,1.75" DIA x 5.25" L

- 1-3/4 x 5-1/4 in., gear housing (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

3b

K940510

TUBE,1.75" ID x 6.187" L

- 1-3/4 x 6-3/4 in., gear housing (990SK, 995SK, 996SK)

1шт.

4

K32063

PIN

DOWEL - 3/16 x 1/2 in.

2шт.

5

K19187

THRUST BEARING

1шт.

6a

K919770

SHAFT

LEVELLING SCREW - 1 in. Whit. x 9-1/4 in. (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

6b

K924725

SHAFT

LEVELLING SCREW - 1 in. Whit. x 10-1/4 in. (990SK, 995SK, 996SK)

1шт.

7

K962691

COVER

CAP - with bushes, Includes: Ref. 8

1шт.

8

K621340

BUSHING

BUSH

2шт.

9a

K600404

BOLT

- 3/8 NC x 1-1/2 in. (Cap to gear housing) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

2шт.

9b

K600405

BOLT

- 3/8 UNC x 1-5/8 in. (Cap to gear housing) (990SK, 995SK, 996SK)

2шт.

10

K600526

BOLT

- 3/8 UNC x 1-7/8 in., replaces K600407 (Cap to gear housing)

2шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Cap to gear housing)

4шт.

11

K919769

GEAR

BEVEL PINION

1шт.

12

K623741

SPRING

PIN - 5/32 x 3/4 in.

1шт.

13

K919761

LEVER

HAND LEVER - with knob (990, 995, 996, 990G, 995G, 996G)

1шт.

14

K919763

BUTTON

KNOB (990, 995, 996, 990G, 995G, 996G), Includes: Ref. 14 and circlip

1шт.

K621790

RING, SNAP

CIRCLIP - 1/2 in., external (990, 995, 996, 990G, 995G, 996G)

1шт.

13

K919761

LEVER

HAND LEVER - with knob (990Q, 995Q, 996Q), Includes: Ref. 14 and circlip

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

14

K919763

BUTTON

KNOB (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

K621790

RING, SNAP

CIRCLIP - 1/2 in., external (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

15

K954077

SHAFT

- bevel pinion (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K691356

PIN

SPRING PIN - 5 x 25 MM, shaft (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

15

K954077

SHAFT

- bevel pinion (990SK, 995SK, 996SK)

1шт.

K691396

SPRING PIN - 5 x 25 MM, shaft (990SK, 995SK, 996SK)

1шт.

16

K924723

SPRING

LATCH (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

17

K921914

FORK

END

1шт.

18

K948353

PIVOT PIN

- 5/8 x 2-1/4 in.

1шт.

19

K623740

SPLIT PIN/SAFETY PIN

SPRING PIN - 3/16 x 7/8 in.

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

3шт.

20a

K940700

NUT

ADJUSTING NUT - standard (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

20b

K940614

CLEVIS

ADJUSTING NUT - standard (990SK, 995SK, 996SK)

1шт.

K940505

ROD

LIFT ROD ASSEMBLY (990, 995, 996, 990G, 995G, 996G), Includes: Ref. 21A - 26 and grease fitting

1шт.

K954079

ROD

LIFT ROD ASSEMBLY (990SK, 995SK, 996SK), Includes: Ref. 21A - 26 and grease fitting

1шт.

21a

K962978

SET SCREW

ADJUSTING SCREW - 1 in. Whit. x 10-7/8 in. (990, 995, 996, 990G, 995G, 996G), Includes: Ref. 22A & 22B

1шт.

21b

K962976

ADJUSTMENT SCREW

ADJUSTING SCREW - 1 in. Whit. x 11-7/8 in. (990SK, 995SK, 996SK)

1шт.

22a

K940510

TUBE,1.75" ID x 6.187" L

- 1-3/4 x 6-1/4 in. (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

22b

K940509

TUBE,1.75" DIA x 7.125" L

- 1-3/4 x 7-1/8 in. (990SK, 995SK, 996SK)

1шт.

23a

K940700

NUT

ADJUSTING NUT - standard (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

23b

K940614

CLEVIS

ADJUSTING NUT - standard (990SK, 995SK, 996SK)

1шт.

K954080

BUSHING

SPACER TUBE - lift rod (990SK, 995SK, 996SK)

1шт.

24

K921914

FORK

END

1шт.

25

K948353

PIVOT PIN

- 5/8 x 2-1/4 in.

1шт.

26

K623740

SPLIT PIN/SAFETY PIN

SPRING PIN - 3/16 x 7/8 in.

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

27

K945967

CLEVIS

ADJUSTING NUT - slotted, optional equipment (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

2шт.
