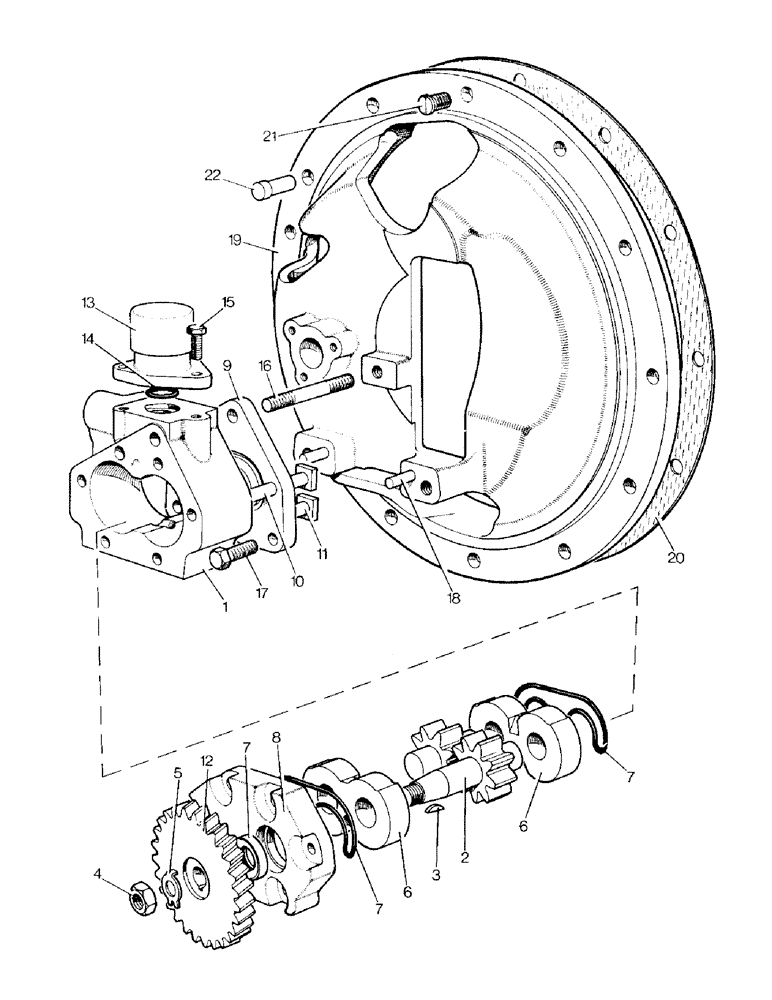

Запчасти Case IH 990 (E07-1) - SELECTAMATIC HYDRAULIC SYSTEM, HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

1

K962635

PUMP

HYDRAULIC PUMP ASSEMBLY - less relief valve and gear

1шт.

K962635R

REMAN-HYD PUMP

990, 995, 996 All(S/N 11070001 & AFTER) (1/76-12/80)

1шт.

K962635C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

K962128

GEAR

ROTORS - one pair

1шт.

3

K19604

KEY

- Woodruff no. 405

1шт.

4

425-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2 UNF

1шт.

5

K626382

WASHER

TABWASHER - 1/2 in.

1шт.

6

K962125

BEARING

2шт.

7

K962136

GASKET KIT

SEAL PACK - oil seal and 3 "O" rings

1шт.

8

K962132

COVER

END PLATE

1шт.

9

K962129

FLANGE

1шт.

10

K962130

BOLT

- 3/8 UNF, special

4шт.

11

K962131

BOLT

DOWEL BOLT - 3/8 UNF

2шт.

K617002

NUT

- 3/8 UNF

6шт.

K19483

SPRING WASHER

SPRING WASHER

6шт.

12

K927097

GEAR

DRIVEN GEAR - (36 helical teeth)

1шт.

Older tractors (Selectomatic livedrive units) may require a straight-cut gear. The part number for this gear is K914466. The other part, K927097 is a helical cut gear. By tsg bc 6/5/97

1шт.

13

K919372

VALVE

RELIEF VALVE - pre-set assembly

1шт.

14

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

"O" RING - 11/16 in. internal dia. (Valve to pump)

1шт.

15

K19222

BOLT

- 5/16 BSF x 1 in., Serial Range: (Valve-pump)

3шт.

K19481

SPRING WASHER

SPRING WASHER, Serial Range: (Valve-pump)

3шт.

16

K608221

STUD

- 3/8 UNC x 3-11/16 in., Serial Range: (Pump-plate)

1шт.

17

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1-1/8 in. (Pump to plate)

2шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in., Serial Range: (Pump-plate)

3шт.

280136

NUT,3/8"-16, G8

(Pump to plate) 3/8"-16, G8

1шт.

18

K24853

PIN

DOWEL - 1/4 x 11/16 in., Serial Range: (Pump-plate)

2шт.

19

K905667

SUPPORT

PLATE

1шт.

20

K922591

GASKET

- plate to rear axle case and PTO unit

2шт.

21

K605157

SCREW

- 7/16 UNC x 1-1/8 in.

1шт.

22

K24827

PIN

HEADED DOWEL - 7/16 x 1-3/4 in.

1шт.
