Запчасти Case IH 990 (M05-1) - ELECTRICAL EQUIPMENT, SIDE LAMPS AND REAR LAMPS, 990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q (06) - ELECTRICAL SYSTEMS

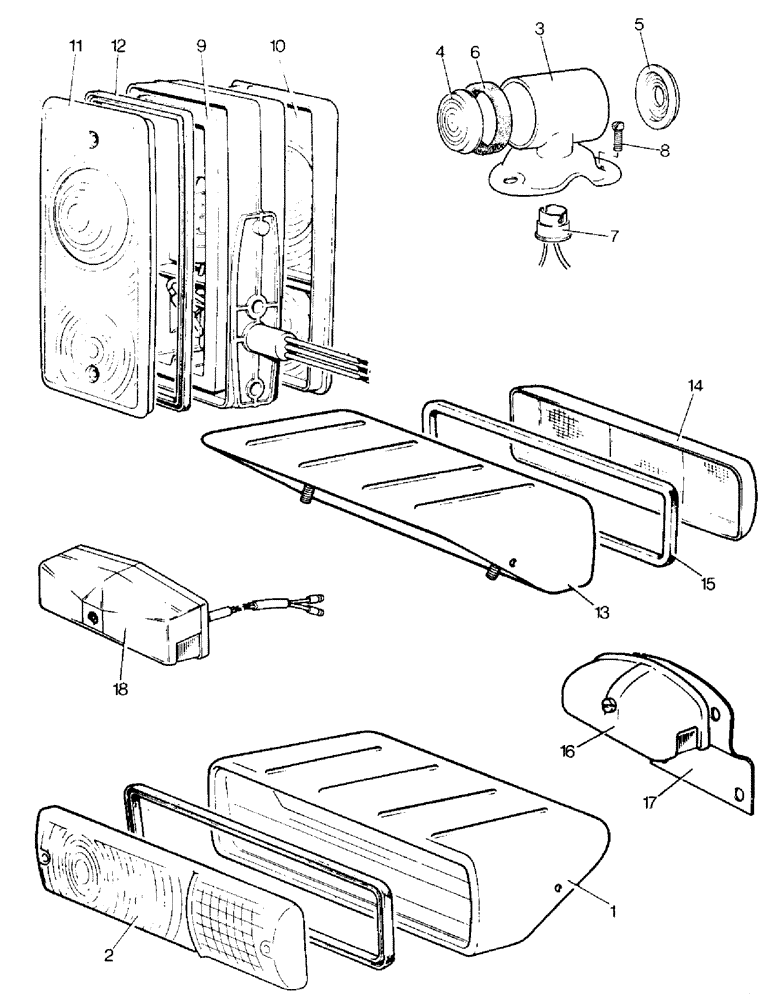

Схема запчастей Case IH 990 - (M05-1) - ELECTRICAL EQUIPMENT, SIDE LAMPS AND REAR LAMPS, 990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q (06) - ELECTRICAL SYSTEMS
6
14
9
5
4
15
3
11
18
7
16
8
12
13
1
17
10
2

Артикул

Название

Примечание

Количество

1

K954472

INDICATOR LIGHT

SIDE/FLASHER LAMP - left-hand (Full fenders) (990, 995, 996, 990G, 995G, 996G), Includes: lenses

1шт.

K954471

INDICATOR LIGHT

SIDE/FLASHER LAMP - right-hand (Full fenders) (990, 995, 996, 990G, 995G, 996G), Includes: lenses

1шт.

2

K963519

LENS

- left-hand, with screws (990, 995, 996, 990G, 995G, 996G)

1шт.

K963518

LENS

- right-hand, with screws (990, 995, 996, 990G, 995G, 996G)

1шт.

K626310

WASHER

- 3/16 in. (990, 995, 996, 990G, 995G, 996G)

4шт.

K626340

RING

SPRING WASHER - 3/16 in. (990, 995, 996, 990G, 995G, 996G)

4шт.

K617080

NUT

- no. 10 UNF (990, 995, 996, 990G, 995G, 996G)

4шт.

3

K921080

STOP LIGHT

SIDE/REAR LAMP - left-hand (Shell fenders) (990, 995, 996, 990G, 995G, 996G), Includes: Ref. 4 - 7 and rubber mounting

1шт.

K921079

LAMP

SIDE/REAR LAMP - right-hand (Shell fenders) (990, 995, 996, 990G, 995G, 996G), Includes: Ref. 4 - 7 and rubber mounting

1шт.

4

K960887

LENS

- clear (990, 995, 996, 990G, 995G, 996G)

1шт.

5

K960888

LENS

- red (990, 995, 996, 990G, 995G, 996G)

1шт.

6

K960889

MOUNTING PARTS

RUBBER MOUNTING - lenses (990, 995, 996, 990G, 995G, 996)

2шт.

7

K961772

BULB

HOLDER (990, 995, 996, 990G, 995G, 996)

1шт.

K961827

RUBBER MOUNTING - bulb holder (990, 995, 996, 990G, 995G, 996G)

1шт.

K617080

NUT

- no. 10 UNF (990, 995, 996, 990G, 995G, 996G)

4шт.

K11519

WASHER

LOCKWASHER - 3/16 in. (990, 995, 996, 990G, 995G, 996G)

4шт.

8

K615404

SCREW

- no. 10 UNF x 1/2 in. (990, 995, 996, 990G, 995G, 996G)

4шт.

K950659

LIGHT ASSY.

SIDE/FLASHER LAMP - left-hand (990Q, 995Q, 996Q), Includes: Ref. 10 - 12 and screw, washer, and grommet and sleeve

1шт.

9

K950658

LIGHT ASSY.

SIDE/FLASHER LAMP - right-hand (990Q, 995Q, 996Q), Includes: Ref. 10 - 12 and screw, washer, and grommet and sleeve

1шт.

K964705

LENS

- left-hand rear, amber/black (990Q, 995Q, 996Q)

1шт.

10

K964704

LENS

- right-hand rear, amber/black (990Q, 995Q, 996Q)

1шт.

K964707

LENS

- left-hand front, amber/clear (990Q, 995Q, 996Q)

1шт.

11

K964706

LENS

- right-hand front, amber/clear (990Q, 995Q, 996Q)

1шт.

12

K964710

GASKET

(Lens to body) (990Q, 995Q, 996Q)

2шт.

K964712

SCREW

- 1/8 x 1/2 in. (Lens to body) (990Q, 995Q, 996Q)

4шт.

K963504

WASHER

- 1/8 in. (Lens to body) (990Q, 995Q, 996Q)

4шт.

K964711

GROMMET

AND SLEEVE (990Q, 995Q, 996Q)

1шт.

K651001

SCREW

- M5 x 3-5/8 in. (990Q, 995Q, 996Q)

2шт.

13

K954474

LIGHT ASSY.

STOP/TAIL FLASHER LAMP - left-hand, Includes: Ref. 14 - 15 and adaptor

1шт.

K954473

LIGHT ASSY.

STOP/TAIL FLASHER LAMP - right-hand, Includes: Ref. 14 - 15 and adaptor

1шт.

14

K963517

LENS

- left-hand, with screws

1шт.

K963516

LENS

- right-hand, with screws

1шт.

15

K963507

GASKET

- lens

1шт.

K964768

HOLDER

ADAPTOR - bulb holder

3шт.

K626310

WASHER

- 3/16 in., Serial Range: (Lamps-fenders)

4шт.

K626340

RING

SPRING WASHER - 3/16 in., Serial Range: (Lamps-fenders)

4шт.

K617080

NUT

- no. 10 UNF, Serial Range: (Lamps-fenders)

4шт.

K624522

SCREW

SELF-TAPPING SCREW - 1/2 in. (Earth leads)

2шт.

K11524

LOCK WASHER

SPRING WASHER - 1/4 in. (Earth leads)

2шт.

16

K311863

INTERIOR LIGHT

REAR NUMBER PLATE LAMP (Optional equipment) (990, 995, 996, 990G, 995G, 996G)

1шт.

K12355

NUT

DOMED NUT - 2 BA (Optional equipment) (990, 995, 996, 990G, 995G, 996G)

2шт.

17

K902460

SUPPORT

BRACKET (Optional equipment) (990, 995, 996, 990G, 995G, 996G)

1шт.

K603924

SCREW

- 1/4 UNC x 1/2 in. (Optional equipment) (990, 995, 996, 990G, 995G, 996G)

3шт.

K607043

NUT

- 1/4 UNC (Optional equipment) (990, 995, 996, 990G, 995G, 996G)

3шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (Optional equipment) (990, 995, 996, 990G, 995G, 996G)

3шт.

K621644

CLIP

- lead to seat (990, 995, 996, 990G, 995G, 996G)

1шт.

18

K956040

PLATE

REAR NUMBER PLATE LAMP - replaces K954461 (990Q, 995Q, 996Q)

1шт.

K692044

COVER

(990Q, 995Q, 996Q)

1шт.

K692045

BASE

BULB HOLDER ASSEMBLY (990Q, 995Q, 996Q)

1шт.

K692047

SCREW

(990Q, 995Q, 996Q)

1шт.

K692046

BASE

RUBBER BASE (990Q, 995Q, 996Q)

1шт.

K627705

GROMMET

- 1/2 in. dia. (990Q, 995Q, 996Q)

1шт.

K692034

STRAP

(990Q, 995Q, 996Q)

3шт.

K692035

LINK

(990Q, 995Q, 996Q)

3шт.

Выбрано товаров: 54
