Запчасти Case IH 990 (M04-1) - ELECTRICAL EQUIPMENT, HEADLAMPS AND REAR FLOODLAMP (06) - ELECTRICAL SYSTEMS

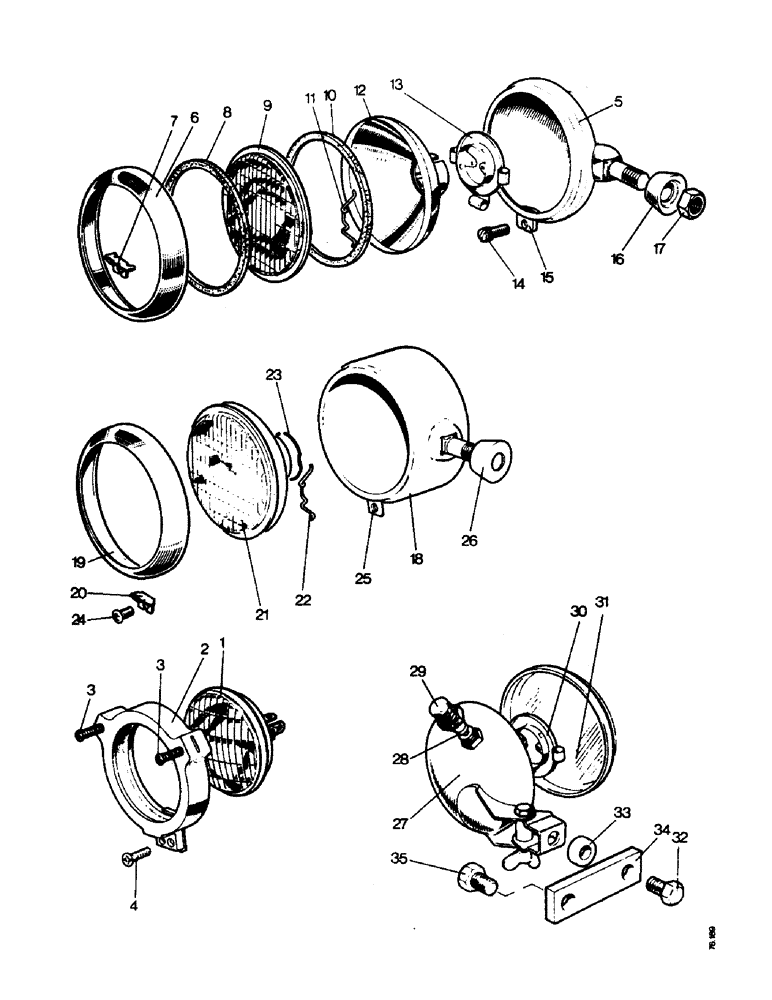

Схема запчастей Case IH 990 - (M04-1) - ELECTRICAL EQUIPMENT, HEADLAMPS AND REAR FLOODLAMP (06) - ELECTRICAL SYSTEMS
32
15
5
26
28
12
24
19
34
14
11
3
21
30
33
27
35
23
29
6
22
20
9
18
10
17
25
13
7
4
8
31
3
16
1
2

Артикул

Название

Примечание

Количество

K915874

HEADLAMP

Lucas 54051293 (Inboard headlamps except Germany), Includes: Ref. 1A - 3

2шт.

1a

K962146

BEAM

SEALED BEAM UNIT, 12 volt, 40/40 watt (Inboard headlamps except Germany)

1шт.

2

K961759

MOUNTING PARTS

RUBBER MOUNTING (Inboard headlamps except Germany)

1шт.

3

K962345

KIT

MOUNTING KIT, spire nut, screw (Inboard headlamps except Germany)

1шт.

4

K604042

SCREW

no. 8 UNC x 3/4 in. (Inboard headlamps except Germany)

4шт.

K626340

RING

SPRING WASHER, 3/16 in. (Inboard headlamps except Germany)

4шт.

K607040

NUT

no. 8 UNC (Inboard headlamps except Germany)

4шт.

1b

K917233

LAMP

HEADLAMP, Hella 105SE-7 (Inboard headlamps Germany only)

2шт.

K604042

SCREW

no. 8 UNC x 3/4 in. (Inboard headlamps Germany only)

4шт.

K626340

RING

SPRING WASHER, 3/16 in. (Inboard headlamps Germany only)

4шт.

K607040

NUT

no. 8 UNC (Inboard headlamps Germany only)

4шт.

K921082

LAMP

HEADLAMP, left-hand (Outboard headlamp) (990, 995, 996, 996G, 996G, 990Q, 995Q, 996Q)

1шт.

5

K921083

LAMP

HEADLAMP, right-hand (Outboard headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

6

K962349

BEZEL

RIM (Outboard headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q), Includes: Ref. 7 - 17

1шт.

7

K960879

BEZEL

RIM CATCH (Outboard headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

8

K960898

GASKET

lens to rim (Outboard headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

9

K960892

LENS

(Outboard headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

10

K960874

GASKET

lens to reflector (Outboard headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

11

K960876

SPRING

RETAINER (Outboard headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

5шт.

12

K963546

REFLECTOR

(Outboard headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

13

K963547

PLATE

CENTRE PLATE AND CONTACTS (Outboard headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

14

K960880

SCREW

rim catch (Outboard headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

15

K961612

HOUSING

CATCH, rim retaining (Outboard headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

16

K961613

PEDESTAL

(Outboard headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

17

K961614

NUT

9/16 in., special (Outboard headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

K944729

LAMP

HEADLAMP, left-hand, white bulb (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q), Includes: Ref. 19 - 26 and shakeproof washer and nut

1шт.

18a

K944730

LAMP

HEADLAMP, right-hand, white bulb (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q), Includes: Ref. 19 - 26 and shakeproof washer and nut

1шт.

K944731

LAMP

HEADLAMP, left-hand, yellow bulb (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q), Includes: Ref. 19 - 26 and shakeproof washer and nut

1шт.

18b

K944732

LAMP

HEADLAMP, right-hand, yellow bulb (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q), Includes: Ref. 19 - 26 and shakeproof washer and nut

1шт.

19

K962349

BEZEL

RIM (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

20

K963481

DOOR

RIM CATCH (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

21

K963482

LIGHT ASSY.

REFLECTOR AND LENS (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

22

K960876

SPRING

RETAINER (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

5шт.

K944742

BULB

TUBE (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

23

K963485

SPRING

BULB RETAINING SPRING (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

24

K963480

SCREW

rim catch (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

25

K961612

HOUSING

CATCH, rim retaining (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

26

K961613

PEDESTAL

(Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

K963483

WASHER

SHAKEPROOF WASHER, 9/16 in. (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

K961614

NUT

9/16 in., special (Outboard European headlamp) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

27

K943977

LAMP

REAR FLOODLAMP (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q), Includes: Ref. 28 - 31

1шт.

IT# 27 k943977 - bulb no. only for this asm is k962761. ph 2/1/96.

1шт.

28

K962620

LIGHT SWITCH

SWITCH (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

K961082

NUT

switch retaining (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

29

K962621

COVER ASSY

RUBBER COVER, switch (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

30

K963547

PLATE

CENTRE PLATE AND CONTACTS (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

31

K962334

LENS

(990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

32

K603141

SCREW

SETSCREW, 1/2 UNC x 1-1/4 in. (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

33

K627067

BUSHING

DISTANCE PIECE (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

K626510

WASHER

SHAKEPROOF WASHER, 1/2 in. (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

280431

NUT,1/2"-13, G5

(990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q) 1/2"-13, G5

1шт.

34a

K955726

BRACKET

SUPPORT BRACKET - floodlamp (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

35a

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW - 5/16 UNC x 5/8 in. (Bracket to cab) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Bracket to cab) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K955727

GROMMET

- 11/32 in., floodlamp cable (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

34b

K953060

BRACKET

SUPPORT BRACKET - floodlamp (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

35b

K603138

SCREW

SETSCREW - 1/2 UNC x 1 in. (Bracket to fender) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

280431

NUT,1/2"-13, G5

(Bracket to fender) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q) 1/2"-13, G5

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

K626345

LOCK WASHER

SPRING WASHER - 1/2 in. (Bracket to fender) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

280431

NUT,1/2"-13, G5

(Bracket to fender) (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q) 1/2"-13, G5

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

K627705

GROMMET

- 1/2 in. (990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

K24589

GROMMET

(990, 995, 996, 990G, 995G, 996G, 990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

Выбрано товаров: 75
