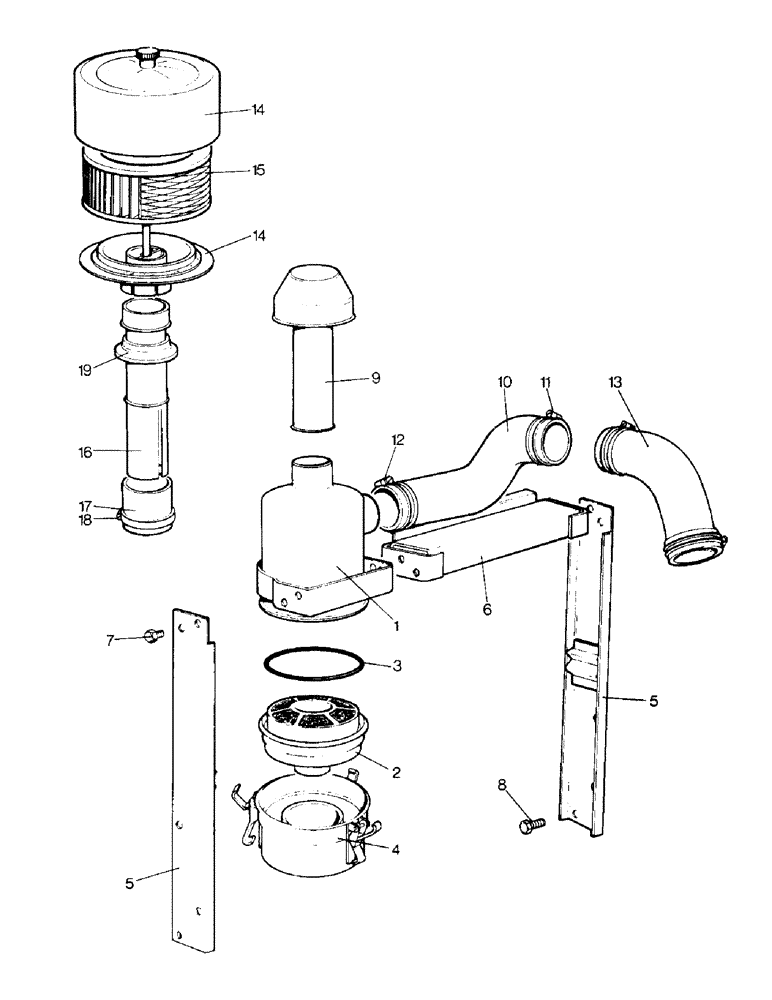

Запчасти Case IH 990 (A11-1) - ENGINE, AIR CLEANER, PIPES AND SUPPORTS (01) - ENGINE

1

K921371

CLEANER

AIR CLEANER - complete (replaced K921205), Includes: Ref. 2 - 4

1шт.

2

K918842

AIR FILTER

LOWER ELEMENT

1шт.

3

K623585

RING

RUBBER SEALING RING

1шт.

4

K916318

FILTER BOWL

BOWL - with toggle clips

1шт.

5

K921207

STRAP

SUPPORT BRACKET - air cleaner

2шт.

6

K927044

BRACKET

TIE BRACKET

1шт.

7

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW - 5/16 UNC x 5/8 in., bracket to air cleaner

6шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

6шт.

8

K602803

BOLT

SETSCREW - 5/16 UNC x 3/4 in., bracket to front extension

4шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

4шт.

9

K921206

CLEANER

PRE-CLEANER - AC-Delco

1шт.

10

K921974

INTAKE AIR HOSE,2.00" ID, 2.25" ID, SAE J14 Class SC

Air Cleaner to Radiator 2.00" ID, 2.25" ID, SAE J14 Class SC

1шт.

11

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLIP - 2-3/8 in. dia. (replaced K622031)

2шт.

12

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLIP - 2-5/8 in. dia. (replaced K622031)

2шт.

13

K921973

RADIATOR HOSE

, Serial Range: Radiator-Manifold

1шт.

14

K924272

PRECLEANER

PRE-CLEANER - paper element type (Optional equipment, U1160 (K918598)

1шт.

15

K922630

AIR FILTER

PAPER ELEMENT (Optional equipment, U1160 (K918598)

1шт.

16

K924273

PIPE

EXTENSION PIPE - 8-1/2 in. (Optional equipment, U1160 (K918598)

1шт.

17

K923231

FITTING

RUBBER SLEEVE (Optional equipment, U1160 (K918598)

1шт.

18

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

HOSE CLIP - air cleaner, 2-3/8 in. dia., replaces K12755 (Optional equipment, U1160 (K918598) (replaced K622032)

1шт.

19

K917010

FLANGE

DUST FLANGE (Optional equipment, U1160 (K918598)

1шт.
