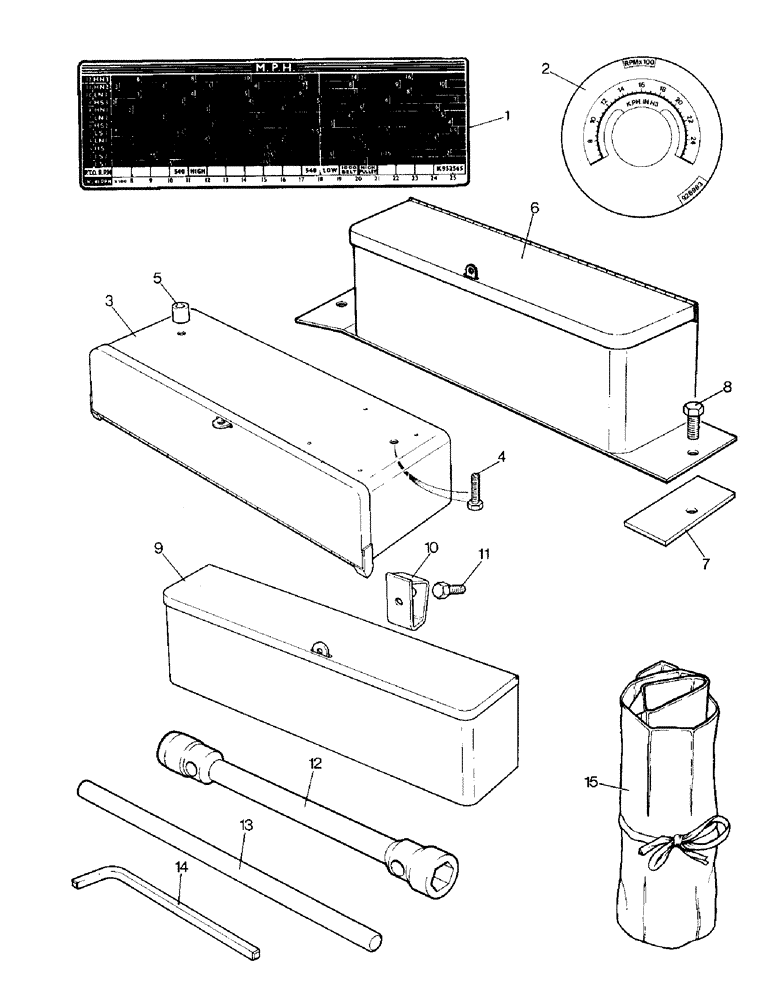

Запчасти Case IH 990 (N03-1) - SERVICE PARTS, GEAR/SPEED CHARTS, 10/49 REDUCTIONS, 12-SPEED Service Parts
№
Артикул
Название
Примечание
Количество
1a
K942981
DECAL
- gear/speeds, MPH (14.9/13-28, 12.4/11-32 tyres) (990, 995, 996, 99)
1шт.
1b
K942989
INDICATOR
DECAL - gear/speeds, KPH (14.9/13-28, 12.4/11-32 tyres) (990, 995, 996, 99)
1шт.
2a
K926983
INDICATOR
DECAL - travel speeds, KPH (14.9/13-28, 12.4/11-32 tyres) (990, 995, 996, 99)
1шт.
1c
K942979
DECAL
- gear/speeds MPH (14-30, 11-36, 12-36, 12-38, 13-30 tyres) (990, 995, 996, 99)
1шт.
1d
K942987
DECAL
- gear/speeds MPH (14-30, 11-36, 12-36, 12-38, 13-30 tyres) (990, 995, 996, 99)
1шт.
1e
K952565
INDICATOR
DECAL - gear/speeds, MPH (14-30, 11-36, 12-36, 12-38, 13-30 tyres) (990Q, 995Q, 996Q)
1шт.
1f
K942987
DECAL
- gear/speeds KPH (14-30, 11-36, 12-36, 12-38, 13-30 tyres) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)
1шт.
2b
K926836
DECAL
- travel speed KPH (14-30, 11-36, 12-36, 12-38, 13-30 tyres) (990, 995, 996, 99)
1шт.
3
K914379
BOX, TOOL
TOOLBOX (990, 995, 996, 99), tools
1шт.
4
K602908
SCREW
SETSCREW - 3/8 UNC x 1-1/2 in. (Toolbox to frame) (990, 995, 996, 99), tools
2шт.
K19472
WASHER
- 3/8 in. (Toolbox to frame) (990, 995, 996, 99), tools
2шт.
K19482
SPRING WASHER
SPRING WASHER - 3/8 in. (Toolbox to frame) (990, 995, 996, 99), tools
2шт.
5
K627036
BUSHING
DISTANCE PIECE (Toolbox to frame) (990, 995, 996, 99), tools
2шт.
6
K952937
SUPPORT
TOOLBOX (990Q, 995Q, 996Q), tools
1шт.
7
K952939
MOUNTING PARTS
MOUNTING PAD (Toolbox to cab) (990Q, 995Q, 996SK), tools
1шт.
8
K602736
SCREW
SETSCREW - 1/4 UNC x 7/8 in. (Toolbox to cab) (990Q, 995Q, 996Q), tools
2шт.
K607043
NUT
- 1/4 UNC (Toolbox to cab) (990Q, 995Q, 996Q), tools
2шт.
K626341
SPRING WASHER
SPRING WASHER - 1/4 in. (Toolbox to cab) (990Q, 995Q, 996Q), tools
2шт.
9
K955806
COMPLETE TOOL BOX
TOOLBOX (990SK, 995SK, 996SK), tools
1шт.
10
K953888
BRACKET
SUPPORT BRACKET - toolbox (Toolbox to cab) (990SK, 995SK, 996SK), tools
2шт.
11
K602982
SCREW,3/8" - 16 x 3/4", Gr S
SETSCREW - 3/8 UNC x 3/4 in. (Toolbox to cab) (990SK, 995SK, 996SK), tools
4шт.
280136
NUT,3/8"-16, G8
(Toolbox to cab) (990SK, 995SK, 996SK), tools 3/8"-16, G8
4шт.
K19482
SPRING WASHER
SPRING WASHER - 3/8 in. (Toolbox to cab) (990SK, 995SK, 996SK), tools
4шт.
K19472
WASHER
- 3/8 in. (Toolbox to cab) (990SK, 995SK, 996SK), tools
2шт.
12
K946622
KEY
WHEEL BRACE - 1 in. - 1-5/16 AF, toolbox and tools
1шт.
13
K948095
CLEVIS PIN
TOMMY BAR, toolbox and tools
1шт.
14
K39426
OPEN END WRENCH
WRENCH - transmission filler plug, toolbox and tools
1шт.
K54320
OPERATORS MANUAL BOX (North America only) (990, 995, 996, 99), toolbox and tools
1шт.
K603931
SCREW
- 1/4 UNC x 11/4 in. (North America only) (990, 995, 996, 99), toolbox and tools
3шт.
K627106
BUSHING
DISTANCE PIECE (North America only) (990, 995, 996, 99), toolbox and tools
3шт.
K19480
SPRING WASHER
SPRING WASHER - 1/4 in. (North America only) (990, 995, 996, 99), toolbox and tools
3шт.
K607043
NUT
- 1/4 UNC (990, 995, 996, 99), toolbox and tools
3шт.
15
K918595
TOOL
KIT - U1119 , optional equipment, toolbox and tools
1шт.
K922741
TOOL WALLET, toolbox
1шт.
K919894
SPECIAL WRENCH
WRENCH - 7/16 in., square, toolbox and tools
1шт.
K946622
KEY
WHEEL BRACE - 1 in./1-5/16 in. A/F, toolbox and tools
1шт.
K906963
SCREW
PEG - engine timing, toolbox and tools
1шт.
K627607
SPANNER - 1-1/8 x 1-15/16 in. A/F, toolbox and tools
1шт.
K627603
TOOL
SPANNER - 3/4 x 5/8 in. A/F, toolbox and tools
1шт.
K627604
TOOL
SPANNER - 9/16 x 1/2 in. A/F, toolbox and tools
1шт.
K627608
TOOL
SPANNER - 7/16 x 5/16 in. A/F, toolbox and tools
1шт.
K627609
BOX SPANNER - 5/16 x 3/4 in. A/F, toolbox and tools
1шт.
K627610
TOOL
BOX SPANNER - 9/16 x 1/2 in. A/F, toolbox and tools
1шт.
K19806
BAR
TOMMY BAR - 5/16 x 6 in., toolbox and tools
1шт.
K948095
CLEVIS PIN
TOMMY BAR, toolbox and tools
1шт.
K922744
SCREW
DRIVER - reversible, toolbox and tools
1шт.
K19803
SCREWDRIVER, toolbox and tools
1шт.
K922743
TOOL
PLIERS - 7 in., insulated, toolbox and tools
1шт.
Выбрано товаров: 48
