Запчасти Case IH 990 (C07-1) - GEARBOX, TRANSFER GEARBOX MK4 4WD TRACTORS, DAVID BROWN AXLE, 990 4WD, 996 4WD Gearbox

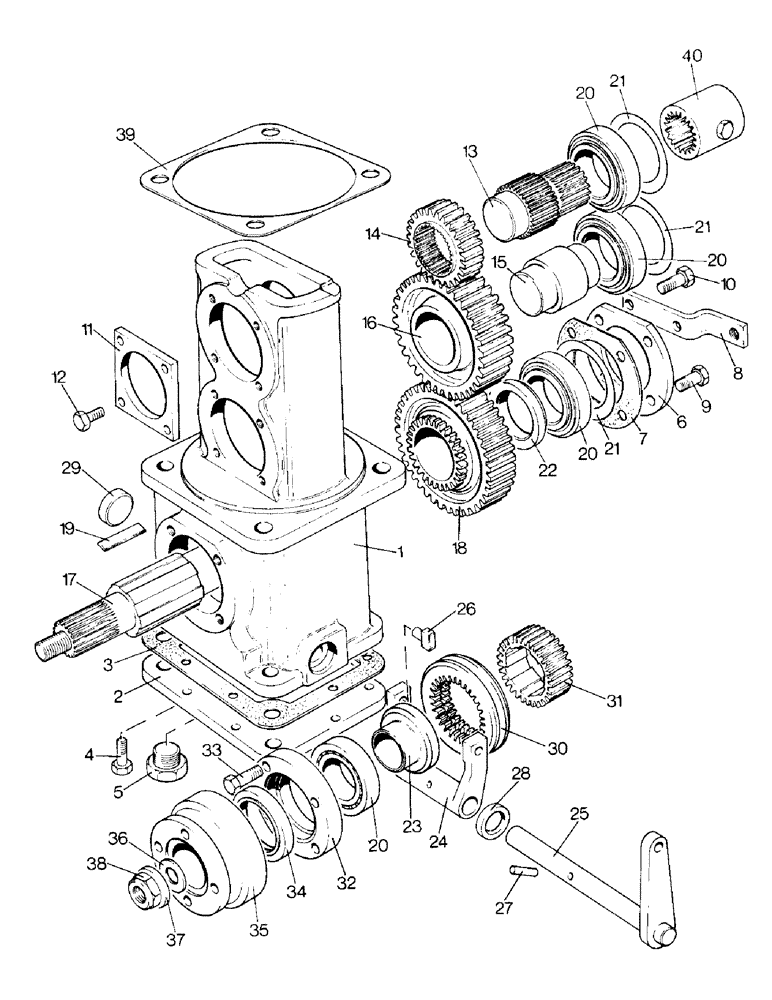

Схема запчастей Case IH 990 - (C07-1) - GEARBOX, TRANSFER GEARBOX MK4 4WD TRACTORS, DAVID BROWN AXLE, 990 4WD, 996 4WD Gearbox
16
4
13
8
21
15
19
5
17
9
11
30
34
18
40
12
2
7
1
22
38
6
23
28
3
20
24
39
21
32
20
26
29
35
33
14
25
27
20
10
31
37
21
20
36

Артикул

Название

Примечание

Количество

K956093

PRODUCT GRAPHIC

TRANSFER GEARBOX ASSEMBLY, Includes: Ref. 1 - 38

1шт.

1

K956081

TRANSFER BOX

CASE

1шт.

2

K956082

COVER

1шт.

3

K956083

GASKET

1шт.

4

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in.

8шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

8шт.

5

K623825

PLUG

FLANGED PLUG - 1/2 BSP

1шт.

K626793

WASHER

- aluminum, special

1шт.

6

K951013

CAP

END CAP

1шт.

7

K951014

GASKET

- end cap

2шт.

8

K200087

BRACKET

- operating cable

1шт.

9

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in.

2шт.

10

K602807

SCREW

SETSCREW - 5/16 UNC x 1-1/4 in.

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

4шт.

11

K955599

COVER

END COVER

4шт.

12

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in.

16шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

16шт.

13

K951004

SHAFT

INPUT SHAFT

1шт.

14

K951005

GEAR

INPUT GEAR

1шт.

15

K951007

SHAFT

IDLER SHAFT

1шт.

16

K951006

GEAR

IDLER GEAR

1шт.

17

K956085

SHAFT

OUTPUT SHAFT

1шт.

18

K956084

GEAR

OUTPUT GEAR

1шт.

19

K940989

PLATE

BEARING PAD

6шт.

20

K620194

BEARING

TAPER ROLLER BEARING

6шт.

21a

K950878

SHIM

- 0.030 in.

1шт.

21b

K950879

SHIM

- 0.010 in.

1шт.

21c

K950880

SHIM

- 0.003 in.

1шт.

21d

K950881

SHIM

- 0.002 in.

1шт.

22

K951010

BUSHING

SPACER

1шт.

23

K951011

BUSHING

BUSH

1шт.

24

K956086

FORK

1шт.

25

K200084

SELECTOR

SHAFT

1шт.

26

K956087

TRUNNION

PIN

2шт.

27

K623776

GROOVED PIN,1/4" x 1 1/8", Type A

Pin, Grooved, , Mills 1/4" x 1 1/8", Type A

1шт.

28

K623407

OIL SEAL

OIL SEAL - 3/8 in. internal dia.

1шт.

29

K623790

CORE

PLUG - 1-1/8 in. dia.

1шт.

30

K943644

SYNCHRO RING

DOG CLUTCH

1шт.

31

K955836

GEAR

FIXED GEAR - dog clutch

1шт.

32

K951012

HOUSING

- oil seal

1шт.

33

K602807

SCREW

SETSCREW - 5/16 UNC x 1-1/4 in.

4шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

4шт.

34

K623483

OIL SEAL

OIL SEAL - 70 MM x 50 MM (replaced K623469)

1шт.

35

K200605

FLANGE

AND GUARD ASSEMBLY

1шт.

K951018

FLANGE

1шт.

K200603

GUARD

1шт.

36

K626459

SEALING WASHER

SEALING WASHER

1шт.

37

K626758

WASHER

RETAINING WASHER

1шт.

38

K617307

LOCK NUT

NYLOC NUT - thin

1шт.

FOOTNOTE

1шт.

Not applicable to N. America

1шт.

39

K946451

GASKET

- laminated (Transfer gearbox to main frame)

1шт.

K608610

STUD

- 5/8 UNC x 2-1/2 in. (Transfer gearbox to main frame)

2шт.

K19485

WASHER

SPRING WASHER - 5/8 in. (Transfer gearbox to main frame)

4шт.

K601228

BOLT

- 5/8 UNC x 7-1/2 in. (Transfer gearbox to main frame)

2шт.

K607006

NUT

- 5/8 UNC (Transfer gearbox to main frame)

2шт.

40

K956126

COUPLING, BREAK AWAY

COUPLING - transfer gearbox

1шт.

K600213

BOLT

- 5/16 UNC x 2-1/2 in., coupling

1шт.

9635082

NUT,5/16" - 18, Gr 5

- coupling

1шт.

Not applicable to N. America

1шт.

FOOTNOTE

1шт.

Выбрано товаров: 61
