Запчасти Case IH 990 (C04-1) - GEARBOX, GEAR SHIFT LEVERS, 990, 990G, 995, 995G, 996, 996G, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK Gearbox

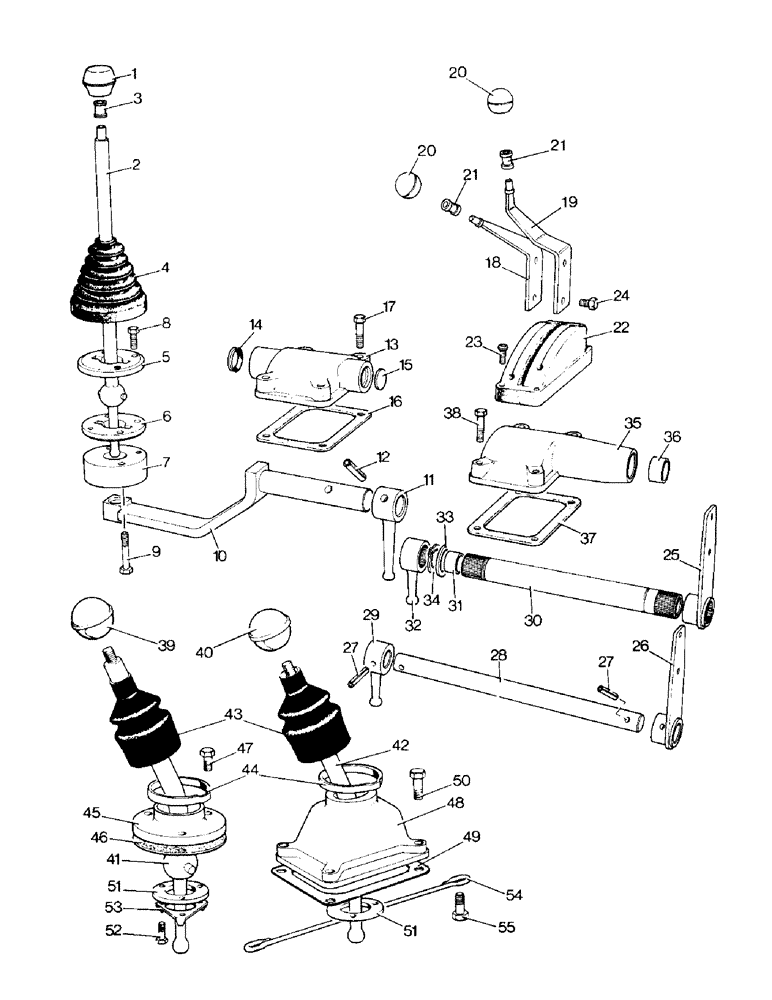

Схема запчастей Case IH 990 - (C04-1) - GEARBOX, GEAR SHIFT LEVERS, 990, 990G, 995, 995G, 996, 996G, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK Gearbox
53
46
25
55
10
23
21
34
54
16
13
52
9
7
4
8
24
51
20
26
14
18
15
39
12
21
29
47
44
5
27
32
50
43
37
22
1
31
27
20
17
48
36
28
3
30
40
51
2
42
41
11
45
19
49
6
35
33
38

Артикул

Название

Примечание

Количество

1

K950690

BALL KNOB

KNOB - gear lever (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

2a

K955597

SELECTOR

GEAR LEVER (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q 996SK, S/N 11088300 and after

1шт.

2b

K950688

SELECTOR

GEAR LEVER (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

Used on models 990Q, 990SK, 995Q, 995SK, 996Q 996SK, up to S/N 11088300

1шт.

3

K628474

RING

RETAINING RING - knob to lever (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

4

K950494

RUBBER

GAITER - gear lever (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

5

K950490

BALL

HOUSING - upper (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

6

K950489

BALL

HOUSING - lower (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

7

K950491

BUSHING

SPACER - ball housing (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

8

K613992

SCREW

SETSCREW - no. 10 UNF x 1 in. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

K19488

SPRING WASHER

SPRING WASHER - 3/16 in. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

9

K600148

BOLT

- 1/4 UNC x 2-1/2 in. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

10

K950201

SELECTOR

SHAFT (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

11

K950215

SELECTOR

LEVER (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

12

K623775

GROOVED PIN,5/16" x 1 1/2", Type E, Hardened

Pin, Grooved, (990Q, 995Q, 996Q, 990SK, 995SK, 996SK) 5/16" x 1 1/2", Type E, Hardened

1шт.

13

K950243

HOUSING

- selector shaft (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

14

K623630

SEAL

OIL SEAL (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

15

K623810

PLUG

CORE PLUG - 1 in. dia. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

16

K950543

GASKET,0.2mm Thk

- (Housing to gearbox cover) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

17

K600205

BOLT

- 5/16 UNC x 1-1/2 in. (Housing to gearbox cover) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

4шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

4шт.

18a

K953812

LEVER

HAND LEVER - upper, high-low (990Q, 995Q, 996Q)

1шт.

Used on models 990, 995, 996, 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, S/N 11076938 and after

1шт.

18b

K955254

LEVER

HAND LEVER - upper, high-low (990SK, 995SK, 996SK)

1шт.

Used on models 990, 995, 996, 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, S/N 11076938 and after

1шт.

18c

K950686

LEVER

HAND LEVER - upper, high-low (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

Used on models 990, 995, 996, 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, up to S/N 11076938

1шт.

19a

K953810

LEVER

HAND LEVER - upper, slow-normal (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

Used on models 990, 995, 996, 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, S/N 11076938 and after

1шт.

19b

K950683

LEVER

HAND LEVER - upper, slow-normal (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

Used on models 990, 995, 996, 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, up to S/N 11076938

1шт.

20

K950690

BALL KNOB

KNOB - hand levers (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

21

K628474

RING

RETAINING RING - knobs to levers (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

22

K950822

RUBBER

GAITER - hand levers (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

23

K615408

SCREW,Pan, #10 - 32 x 1"

SETSCREWS - no. 10 UNF x 1 in. (Gaiter to cab) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

4шт.

K626310

WASHER

- 3/16 in. (Gaiter to cab) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

4шт.

24a

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2 in. (Hand levers) (990Q, 995Q, 996Q)

4шт.

24a

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2 in. (Hand levers) (990SK, 995SK, 996SK)

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Hand levers) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

4шт.

24b

K600365

BOLT

- 5/16 UNC x 1-1/2 in. (Hand levers) (990SK, 995SK, 996SK)

2шт.

Used on models 990, 995, 996, 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, S/N 11076938 and after

1шт.

K955255

BUSHING

SPACER (Hand levers) (990SK, 995SK, 996SK)

1шт.

Used on models 990, 995, 996, 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, S/N 11076938 and after

1шт.

25

K950429

LEVER

HAND LEVER - lower, high-low (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

26

K950436

LEVER

HAND LEVER - lower, slow-normal (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

27

K623726

PIN

- 1/4 x 1-1/2 in. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

28

K950003

SELECTOR

SHAFT - slow-normal (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

29

K950005

SELECTOR

LEVER - slow-normal (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

30

K950001

SELECTOR

TUBE - high-low (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

31

K621303

BUSHING

BUSH - shaft to tube (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

32

K950004

SELECTOR

LEVER - high-low (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

33

K950002

BUSHING

WASHER - 1 in. (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

34

K623483

OIL SEAL

CIRCLIP - 1 in. dia., external (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

2шт.

35

K950000

HOUSING

(990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

36

K628750

BUSHING

BUSH - housing (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

37

K950543

GASKET,0.2mm Thk

(Housing to gearbox cover) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

1шт.

38

K600205

BOLT

- 5/16 UNC x 1-1/2 in. (Housing to gearbox cover) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

4шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Housing to gearbox cover) (990Q, 995Q, 996Q, 990SK, 995SK, 996SK)

4шт.

39

K920787

KNOB

- gear lever (990, 990G, 995, 995G, 996, 996G)

1шт.

40

K902270

KNOB

- range lever (990, 990G, 995, 995G, 996, 996G)

1шт.

41

K943284

CONTROL LEVER

GEAR LEVER - 1 2 3 and reverse (990, 990G, 995, 995G, 996, 996G)

1шт.

42

K928775

SELECTOR

RANGE LEVER (990, 990G, 995, 995G, 996, 996G)

1шт.

43

K929631

BOOT

DIRT EXCLUDER (990, 990G, 995, 995G, 996, 996G)

2шт.

44

K622030

CLAMP

HOSE CLIP - 2-3/8 in. dia. (990, 990G, 995, 995G, 996, 996G)

2шт.

45

K929630

HOUSING

BALL HOUSING - gear lever (990, 990G, 995, 995G, 996, 996G)

1шт.

46

K901835

GASKET

(Housing to gearbox cover) (990, 990G, 995, 995G, 996, 996G)

1шт.

47

K602703

SCREW

SETSCREW - 1/4 UNC x 3/4 in. (Housing to gearbox cover) (990, 990G, 995, 995G, 996, 996G)

3шт.

K19480

SPRING WASHER

SPRING WASHER - 1/4 in. (Housing to gearbox cover) (990, 990G, 995, 995G, 996, 996G)

3шт.

48

K929629

BALL

HOUSING - range lever (990, 990G, 995, 995G, 996, 996G)

1шт.

49

K915597

GASKET,0.2mm Thk

(Housing to gearbox cover) (990, 990G, 995, 995G, 996, 996G)

1шт.

50

K602706

SCREW

SETSCREW - 1/4 UNC x 1-1/8 in. (Housing to gearbox cover) (990, 990G, 995, 995G, 996, 996G)

4шт.

K19480

SPRING WASHER

SPRING WASHER - 1/4 in. (Housing to gearbox cover) (990, 990G, 995, 995G, 996, 996G)

4шт.

51

K903074

SUPPORT

PLATE (990, 990G, 995, 995G, 996, 996G)

2шт.

52

K603630

SCREW

SETSCREW - no. 10 UNC x 3/8 in. (Plates to housings) (990, 990G, 995, 995G, 996, 996G)

6шт.

53

K904386

WASHER

TABWASHER (Plates to housings) (990, 990G, 995, 995G, 996, 996G)

2шт.

54

K914348

SPRING

BAULK SPRING - range lever (990, 990G, 995, 995G, 996, 996G)

1шт.

55

K602703

SCREW

SETSCREW - 1/4 UNC x 3/4 in. (Spring to gearbox cover) (990, 990G, 995, 995G, 996, 996G)

2шт.

K12256

WASHER

FIBRE WASHER - 1/4 in. (Spring to gearbox cover) (990, 990G, 995, 995G, 996, 996G)

2шт.

K607251

NUT

DOMED NUT - 1/4 UNC (Spring to gearbox cover) (990, 990G, 995, 995G, 996, 996G)

2шт.

Выбрано товаров: 81
