Запчасти Case IH 990 (C03-1) - GEARBOX, BEVEL PINION SHAFT, 990, 990Q, 990SK, 995, 995Q, 995SK, 996, 996Q, 996SK, 990G, 995G, 996G Gearbox

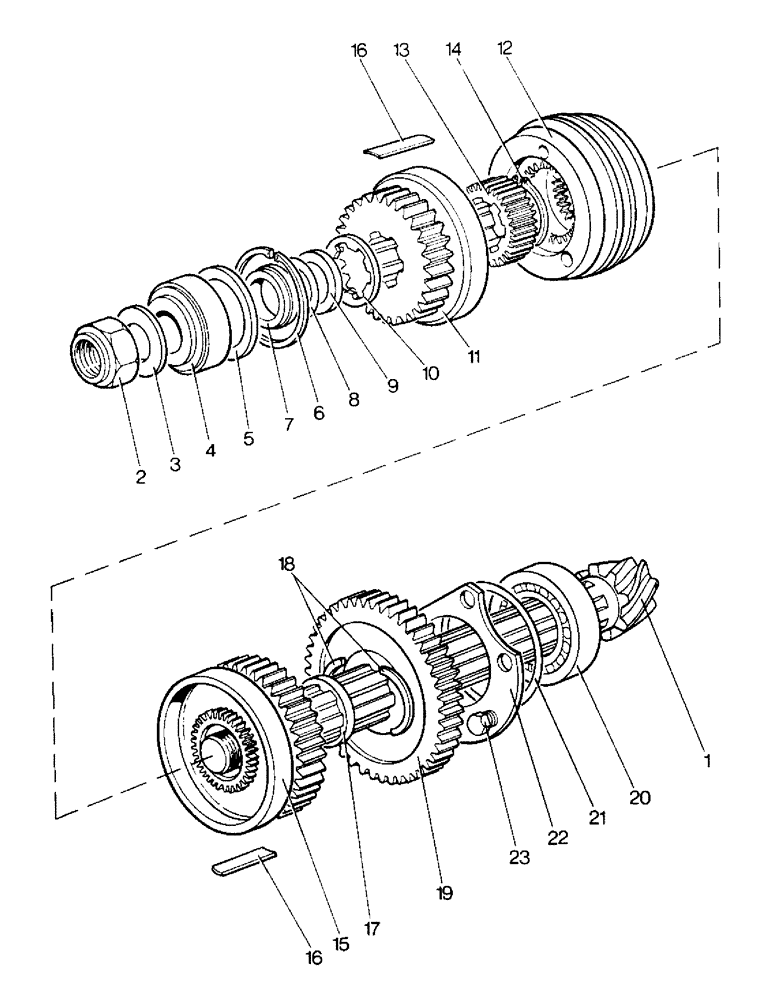

Схема запчастей Case IH 990 - (C03-1) - GEARBOX, BEVEL PINION SHAFT, 990, 990Q, 990SK, 995, 995Q, 995SK, 996, 996Q, 996SK, 990G, 995G, 996G Gearbox
20
19
6
1
4
10
15
3
8
9
23
18
14
17
11
21
16
16
22
13
7
12
2
5

Артикул

Название

Примечание

Количество

1a

K964879

GEAR-SET

BEVEL PINION AND SPIRAL GEAR - 7/43 teeth (990, 990Q, 990SK, 995, 995Q, 995SK, 996, 996Q, 996SK)

1шт.

1b

K964897

GEAR

BEVEL PINION AND SPIRAL GEAR - 7/43 teeth (990G, 995G, 996G)

1шт.

2

K622803

NUT

NYLOC NUT - 1-1/8 BSF left-hand

1шт.

3

K14687

WASHER

- 1-1/8 in. (990, 990Q, 990SK, 995, 995Q, 995SK, 996, 996Q, 996SK)

1шт.

1c

K965090

GEAR-SET

BEVEL PINION AND SPIRAL GEAR - 7/43 teeth (4WD tractors) (990, 990Q, 990SK, 995, 995Q, 995SK, 996, 996Q, 996SK)

1шт.

K921819

WASHER

(4WD tractors) (990, 990Q, 990SK, 995, 995Q, 995SK, 996, 996Q, 996SK)

1шт.

K921818

WASHER

TAB WASHER (4WD tractors) (990, 990Q, 990SK, 995, 995Q, 995SK, 996, 996Q, 996SK)

1шт.

K921817

NUT

- 1-3/8 Whitworth (4WD tractors) (990, 990Q, 990SK, 995, 995Q, 995SK, 996, 996Q, 996SK)

1шт.

4

K62006

ROLLER BEARING (replaced K600261)

1шт.

5

K627253

BUSHING

SPACER

1шт.

6

K17023

CIRCLIP

- 3 in. internal

1шт.

7

K917844

BUSHING

DISTANCE PIECE

1шт.

8a

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- 0.002 in.

1шт.

8b

K917846

SHIM

- 0.005 in.

1шт.

8c

K917847

SHIM

- 0.010 in.

1шт.

8d

K917848

SHIM

- 0.030 in.

1шт.

9

K627203

BUSHING

DISTANCE PIECE

1шт.

10

K926249

WASHER

- special

1шт.

11

K942671

GEAR

- high, 28 teeth

1шт.

12

K928223

GEAR

SLIDING GEAR AND CONES

1шт.

K926266

SPRING

- sliding gear

6шт.

13

K928226

GEAR

- dog clutch

2шт.

14

K12922

RING, SNAP

CIRCLIP - 1-3/4 in. external

1шт.

15

K942672

GEAR

- medium, 35 teeth

1шт.

16

K928621

WEAR PAD

BEARING PAD

12шт.

17

K948472

WASHER

- special

1шт.

18

K948473

RING

SPLIT RING - half

2шт.

19

K948512

GEAR

LOW - 47 teeth

1шт.

20

K620131

ROLLER

BEARING

1шт.

21a

K942872

SHIM

- 0.002 in.

1шт.

21b

K942873

SHIM

- 0.003 in.

1шт.

21c

K942874

SHIM

- 0.010 in.

1шт.

21d

K942875

SHIM

- 0.030 in.

1шт.

22

K943068

COVER

PLATE - rear bearing

1шт.

23

K603043

SCREW

SETSCREW - 7/16 UNC x 1 in.

5шт.

Выбрано товаров: 35
