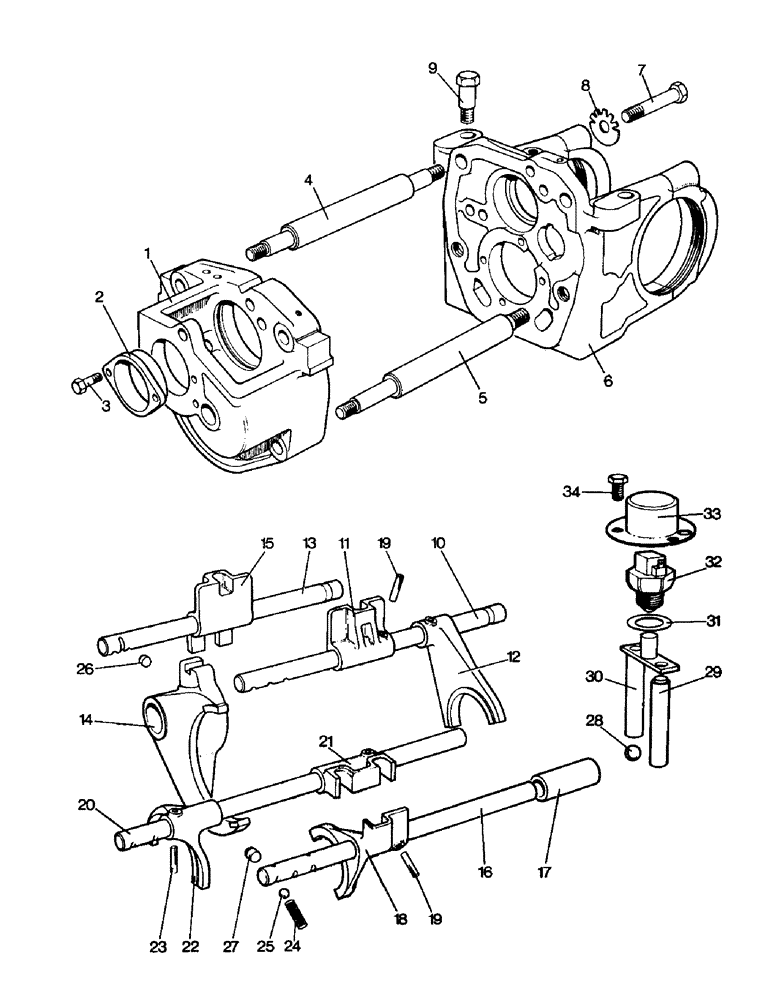

Запчасти Case IH 990 (C01-1) - GEARBOX, GEARBOX ASSEMBLIES, 990, 995, 996, 990Q, 990SK, 995Q, 995SK, 996Q, 996SK, 990G, 995G, 996G Gearbox

K964951

GEARBOX

COMPLETE - 12-speed synchromesh (990, 995, 996)

1шт.

K941660

BOX

GEARBOX COMPLETE - 12-speed synchromesh (990Q, 990SK, 995Q, 995SK, 996Q, 996SK)

1шт.

K941020

BOX

GEARBOX COMPLETE - 12-speed synchromesh (990G, 995G, 996G)

1шт.

K932718

GEARBOX COMPLETE - 12-speed synchromesh, U3518 (Mk 3 4WD Carraro axle) (990, 995, 996)

1шт.

K932364

GEARBOX

COMPLETE - 12-speed synchromesh, U3513 (Mk 4 4WD David Brown axle) (990, 995, 996)

1шт.

1a

K929944

PLATE

END PLATE - front (990, 995, 996, 990Q, 990SK, 995Q, 995SK, 996Q, 996SK), gearbox case and selector mechanism

1шт.

1b

K940345

PLATE

END PLATE - front (990G, 995G, 996G), gearbox case and selector mechanism

1шт.

2

K928437

BEARING HOUSING

- 12-speed, gearbox case and selector mechanism

1шт.

3

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in. (Housing to end plate), gearbox case and selector mechanism

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Housing to end plate), gearbox case and selector mechanism

2шт.

4

K928339

LARGE PIN

SPACING BAR - upper, gearbox case and selector mechanism

2шт.

K607331

NUT

NYLOC NUT - 5/8 UNC, gearbox case and selector mechanism

6шт.

5a

K928338

SHAFT

SPACING BAR - lower (990, 995, 996, 990Q, 990SK, 995Q, 995SK, 996Q, 996SK), gearbox case and selector mechanism

2шт.

5a

K928338

SHAFT

SPACING BAR - lower (990G, 995G, 996G), gearbox case and selector mechanism

1шт.

5b

K929657

BUSHING

SPACING BAR - lower left-hand (990G, 995G, 996G), gearbox case and selector mechanism

1шт.

6

K963487

PLATE

END PLATE - rear, with bearing caps, gearbox case and selector mechanism, Includes: Ref. 7

1шт.

7

K601240

BOLT

- 5/8 UNC x 3-1/4 in. (Caps to end plate), gearbox case and selector mechanism

4шт.

8

K626389

BEARING WASHER

TABWASHER (Caps to end plate), gearbox case and selector mechanism

4шт.

9

K601306

BOLT

- 5/8 UNC special (Gearbox to main frame), case and selector mechanism

2шт.

K920656

BUSHING

BUSH (Gearbox to main frame), case and selector mechanism

2шт.

K626239

SHIM,.010" Thk

(Gearbox to main frame), Case and selector mechanism .010" Thk

1шт.

10

K945213

SELECTOR

ROD (First and reverse), gearbox case and mechanism

1шт.

11

K954125

SELECTOR

JAW (First and reverse), gearbox case and mechanism

1шт.

12

K942472

SELECTOR

FORK (First and reverse), gearbox case and mechanism

1шт.

13

K945215

SELECTOR

ROD (Second and third), gearbox case and mechanism

1шт.

14

K926310

SELECTOR

FORK (Second and third), gearbox case and mechanism

1шт.

15

K928571

SELECTOR

FORK (Second and third), gearbox case and mechanism

1шт.

16a

K945699

SELECTOR

ROD (High/low) (990Q, 990SK, 995Q, 995SK, 996Q, 996SK), gearbox case and mechanism

1шт.

16b

K929322

SELECTOR

ROD (990, 995, 996, 990G, 995G, 996G), gearbox case and mechanism

1шт.

17

K929417

BUSHING

SLEEVE (High/low), gearbox case and selector mechanism

1шт.

18a

K950260

SELECTOR

FORK (High/low) (990Q, 990SK, 995Q, 995SK, 996Q, 996SK), gearbox case and mechanism

1шт.

18b

K928568

SELECTOR

FORK (High/low) (990, 995, 996, 990G, 995G, 996G), gearbox case and mechanism

1шт.

19

K623887

PIN,5.21mm OD x 25.4mm L

- 3/16 x 1 in., replaces K623748 (replaced K623770), gearbox case and selector mechanism

5шт.

19

K623770

PIN

- 3/16 x 1 in., replaces K623748, gearbox case and selector mechanism

5шт.

20

K928576

SELECTOR

ROD (Slow/normal), gearbox case and mechanism

1шт.

21a

K950259

SELECTOR

JAW (Slow/normal) (990Q, 990SK, 995Q, 995SK, 996Q, 996SK), gearbox case and mechanism

1шт.

21b

K928572

SELECTOR

JAW (Slow/normal) (990, 995, 996, 990G, 995G, 996G), gearbox case and mechanism

1шт.

22

K928567

SELECTOR

FORK (Slow/normal), gearbox case and mechanism

1шт.

23

K623770

PIN

- 3/16 x 1 in., replaces K623748 (Slow/normal), gearbox case and selector mechanism

1шт.

24

K13507

SPRING

- gear detent, gearbox case and selector mechanism

4шт.

25

K13506

BALL

STEEL BALL - 3/8 in., detent, gearbox case and selector mechanism

4шт.

26

K30430

LOCKING DEVICE

GEAR LOCK, gearbox case and selector mechanism

1шт.

27

K915492

DOWEL

GEAR LOCK - high/low (990, 995, 996, 990G, 995G, 996G), gearbox case and selector mechanism

1шт.

28

K13506

BALL

STEEL BALL - 3/8 in. dia., gearbox case and selector mechanism

2шт.

29

K945208

PLUNGER

- lower, gearbox case and selector mechanism

1шт.

30

K945204

PLUNGER

AND PLATE, gearbox case and selector mechanism

1шт.

31a

K626895

SHIM,.002" Thk

(Switch to gearbox cover), Case and selector mechanism .002" Thk

1шт.

31b

K626858

SHIM,.005" Thk

(Switch to gearbox cover), Case and selector mechanism .005" Thk

1шт.

31c

K626894

SHIM,.010" Thk

(Switch to gearbox cover), Case and selector mechanism .010" Thk

1шт.

32

K200652

NEUTRAL START SWITCH

SAFETY SWITCH - starter, replaces K940288, gearbox case and selector mechanism

1шт.

33

K940284

COVER

- safety switch (990, 995, 996, 990G, 995G, 996G), gearbox case and selector mechanism

1шт.

34

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW - 1/4 UNC x 1/2 in. (990, 995, 996, 990G, 995G, 996G), gearbox case and selector mechanism

3шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (990, 995, 996, 990G, 995G, 996G), gearbox case and selector mechanism

3шт.

K15535

O-RING,1.484" ID x 1.762" OD x 0.139"

"O" RING - 1-1/2 in. internal dia. (990, 995, 996, 990G, 995G, 996G), gearbox case and selector mechanism

1шт.
