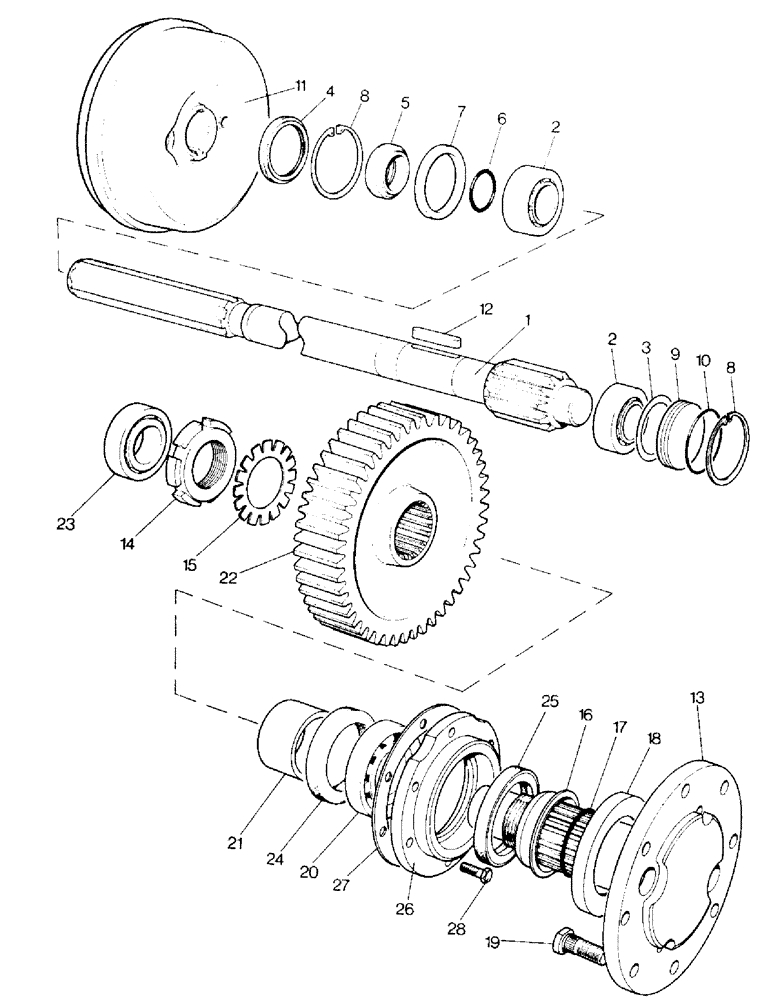

Запчасти Case IH 990 (D02-1) - FINAL DRVE, FINAL DRIVE REDUCTION GEAR AND SHAFTS Final Drive Reductions

1

K942128

SHAFT

SPUR PINION SHAFT - 10 teeth

2шт.

2

K19186

BEARING, ROLLER

TAPERED ROLLER BEARING

4шт.

3a

K907514

SHIM,.003" Thk

1шт.

3b

K907515

SHIM,.010" Thk

1шт.

4

K623455

SEAL

OIL SEAL - 2-1/2 x 3-1/4 x 3/4 in.

2шт.

5

K910390

COLLAR

- spur pinion shaft

2шт.

6

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - 1-3/4 in., internal dia.

2шт.

7

K904256

SPACER

DISTANCE PIECE - case

2шт.

8

K13042

RING, SNAP

CIRCLIP - 3-1/4 in. internal

4шт.

9

K929045

COVER

END COVER - pinion bearing

2шт.

10

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - 3 in. internal dia.

2шт.

11

K917989

BRAKE

DRUM

2шт.

12

K622324

KEY

- 11/32 x 1/2 x 2-1/2 in.

4шт.

13

K964869

DRIVE

FINAL DRIVE SHAFT AND NUT, Includes: Ref. 14 & 15

2шт.

Ref #13 - Improved material S/N 11094463 Jan/Feb 1979 12/15/95

1шт.

14

K85359

LOCK NUT

RING NUT - 2-3/4 in., special

1шт.

15

K85355

LOCK WASHER

TABWASHER

1шт.

16

K916497

COLLAR,69.93mm ID x 95.25mm OD x 32.89mm L

- drive shaft

2шт.

17

K623595

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

"O" RING - 2-7/8 in. internal dia.

2шт.

18

K910397

SEAL

DIRT SHIELD - driveshaft

2шт.

19

K611463

STUD

BOLT - 3/4 UNF x 2-1/2 in., special

16шт.

K617176

NUT

- 3/4 UNF, standard wheels

16шт.

K617170

NUT

- 3/4 UNF, PAVT wheels

16шт.

20

K19185

TAPERED BEARING

TAPERED ROLLER BEARING

2шт.

21

K927061

SLEEVE

- drive shaft

2шт.

22

K949146

WHEEL

SPUR WHEEL - 49 teeth

2шт.

23

K19186

BEARING, ROLLER

TAPERED ROLLER BEARING

2шт.

24

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

OIL SEAL - inner, 90 x 110 x 12 MM

2шт.

25

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

OIL SEAL - outer, 3-1/4 x 4-1/4 x 5/8 in.

2шт.

26

K944516

HOUSING

- oil seal, right-hand

1шт.

K944517

HOUSING

- oil seal, left-hand

1шт.

27a

K902772

SHIM,.003" Thk

(Housing to reduction case) .003" Thk

1шт.

27b

K902773

SHIM,.006" Thk

(Housing to reduction case) .006" Thk

1шт.

27c

K902774

SHIM,.009" Thk

(Housing to reduction case) .009" Thk

1шт.

27d

K902775

GASKET

SHIM - 0.015 in. (Housing to reduction case)

1шт.

27e

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- 0.030 in. (Housing to reduction case)

1шт.

28

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

- 7/16 UNC x 1-1/2 in. (Housing to reduction case)

12шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in. (Housing to reduction case)

12шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.
