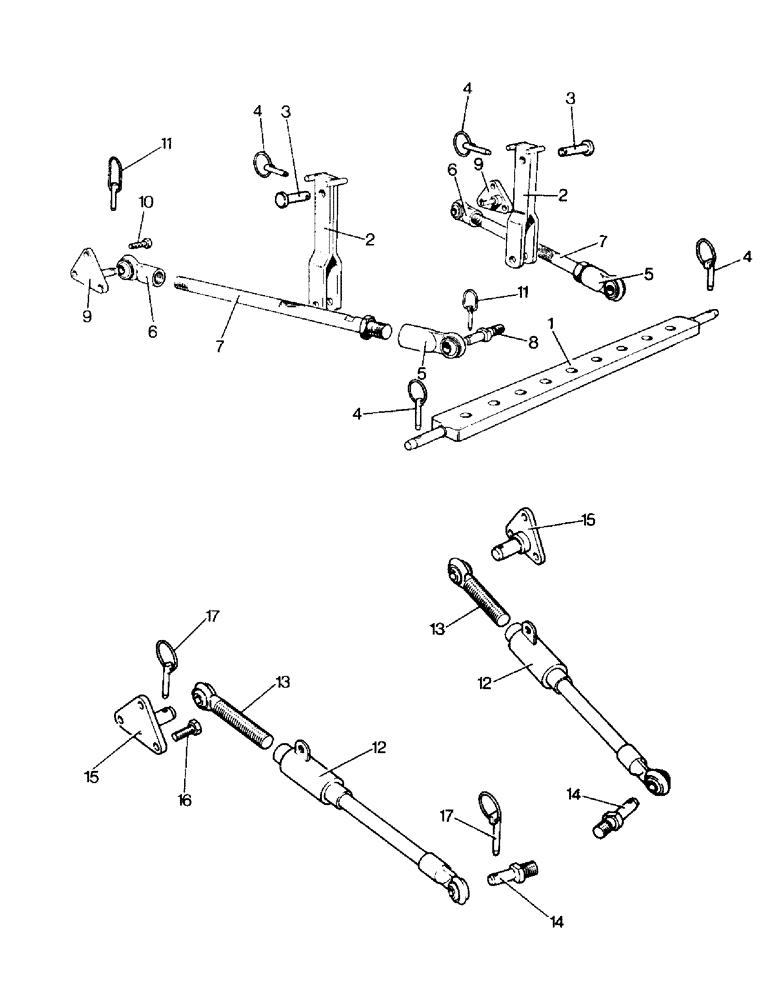

Запчасти Case IH 990 (K03-1) - DRAWBARS AND HITCHES, LINKAGE DRAWBAR AND LINKAGE STABILISERS - OPTIONAL EQUIPMENT Drawbars & Hitches

K911727

NO LONGER SERVICED

LINKAGE DRAWBAR UNIT - U765, Includes: Ref. 1 - 9A

1шт.

1

K902280

LINKAGE

DRAWBAR

1шт.

2

K916441

ROD

EXTENSION - lift rod

2шт.

3

K946108

HEADED PIN

LINK PIN - 3/4 x 2-1/4 in.

2шт.

4

K915678

PIN

LINCH PIN AND RING

4шт.

K911492

KIT

LINKAGE STABILISER BAR UNIT - U744

1шт.

K912766

STABILIZER

STABILISER BAR ASSEMBLY, Includes: Ref. 5 - 7 and locknut

2шт.

5

K901821

BALL

HOUSING - right-hand thread

1шт.

6

K901818

PIVOT

BALL HOUSING - left-hand thread

1шт.

7

K901815

SCREW,21-1/4mm

ED BAR

1шт.

K11569

NUT

LOCKNUT - 1 in. BSF

1шт.

8

K907008

PIN

- lower link

2шт.

K19486

WASHER, LOCK

SPRING WASHER - 3/4 in.

2шт.

280954

NUT,3/4"-10, G5

- 3/4 UNC

2шт.

9a

K922662

PLATE

BRACKET - standard clearance

2шт.

9b

K922660

PLATE

BRACKET - left-hand, high clearance, Includes: Ref. 10 - 11

1шт.

K922658

PLATE

BRACKET - right-hand, high clearance, Includes: Ref. 10 - 11

1шт.

10

K603107

BOLT,1/2" x 1 3/8"

SETSCREW - 1/2 UNC x 1-3/8 in., Serial Range: (Brackets-reductions)

6шт.

K19484

LOCK WASHER

SPRING WASHER - 1/2 in., Serial Range: (Brackets-reductions)

6шт.

11

K920359

PIN

LINCH PIN AND RING

4шт.

K932320

STABILIZER

LINKAGE STABILISER UNIT - U2080, Includes: Ref. 12 - 15A

1шт.

K954646

STABILIZER

STABILISER BAR ASSEMBLY - telescopic, Includes: Ref. 12 & 13

2шт.

12

K954647

TIE-ROD,8.125" L

BALL HOUSING AND TUBE

1шт.

13

K914993

END

BALL HOUSING - front

1шт.

14

K907008

PIN

- lower link

2шт.

K19486

WASHER, LOCK

SPRING WASHER - 3/4 in.

2шт.

280954

NUT,3/4"-10, G5

- 3/4 UNC

2шт.

15a

K922662

PLATE

BRACKET - standard clearance

2шт.

15b

K922660

PLATE

BRACKET - left-hand, high clearance, Includes: Ref. 16 - 17

1шт.

K922658

PLATE

BRACKET - right-hand, high clearance, Includes: Ref. 16 - 17

1шт.

16

K603107

BOLT,1/2" x 1 3/8"

SETSCREW - 1/2 UNC x 13/8 in., Serial Range: (Brackets-reductions)

6шт.

K119484

SPRING WASHER - 1/2 in., Serial Range: (Brackets-reductions)

6шт.

17

K920359

PIN

LINCH PIN AND RING

4шт.
