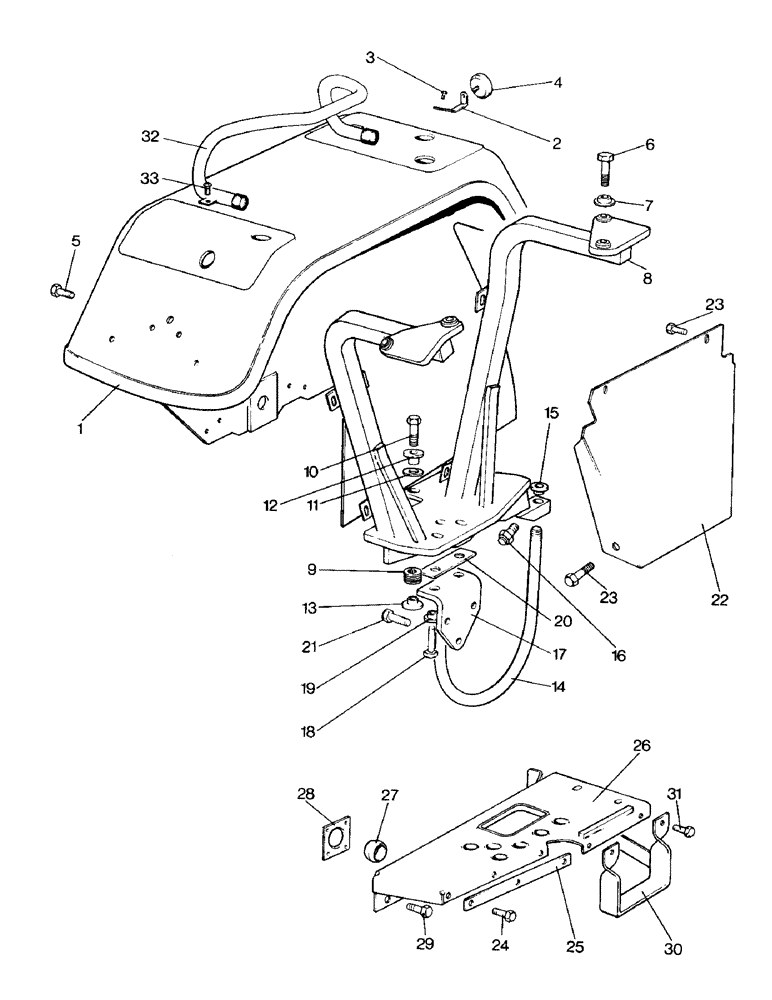

Запчасти Case IH 990 (L11-1) - CHASSIS, REINFORCED FULL FENDERS AND FRAME PLATFORMS, 990, 995, 990G, 995G, 996, 996G (12) - CHASSIS

K774974

FENDER ASSY.

FULL FENDER - left-hand

1шт.

1

K774977

FENDER

FULL FENDER - right-hand

1шт.

2

K929468

BRACKET

- reflector

2шт.

3

K603924

SCREW

- 1/4 UNC x 1/2 in., Serial Range: (Brackets-fenders)

4шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in., Serial Range: (Brackets-fenders)

4шт.

K607043

NUT

- 1/4 UNC, Serial Range: (Brackets-fenders)

4шт.

4

K964716

REFLECTOR

- red

2шт.

5

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. (Fenders to support brackets)

16шт.

K626682

WASHER

- 5/16 in. (Fenders to support brackets)

16шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Fenders to support brackets)

16шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 in. (Fenders to support brackets)

16шт.

6

K603274

SCREW

SETSCREW - 5/8 UNC x 1-1/2 in. (Fenders to support brackets)

8шт.

K19485

WASHER

SPRING WASHER - 5/8 in. (Fenders to support brackets)

8шт.

K691826

WASHER

- 5/8 in. (Fenders to support brackets)

8шт.

7

K773988

FASTENER

CONICAL WASHER - 5/8 in. (Fenders to support brackets)

8шт.

K771899

FRAME

SUPPORT BRACKET - left-hand fender

1шт.

8

K771921

FRAME

SUPPORT BRACKET - right-hand fender

1шт.

9

K773969

ADJUSTER

(Brackets to rear axle case)

4шт.

10

K600885

BOLT

- 1/2 UNC x 2 in. (Brackets to rear axle case)

4шт.

K626345

LOCK WASHER

SPRING WASHER - 1/2 in. (Brackets to rear axle case)

4шт.

K692049

WASHER

- 1/2 in., special (Brackets to rear axle case)

4шт.

11

K773970

WASHER

NYLON WASHER - 1/2 in. (Brackets to rear axle case)

4шт.

12

K692050

WASHER

- 1/2 in., special (Brackets to rear axle case)

4шт.

13

K771563

BUSHING

NYLON WASHER - 1/2 in. (Brackets to rear axle case)

4шт.

14

K772171

BOLT

"U" BOLT - 3/4 UNC

2шт.

15

K771554

BUSHING

NYLON BUSH

4шт.

K19476

WASHER

- 3/4 in.

8шт.

K607086

NUT

LOCKNUT - 3/4 UNC

8шт.

16

K771994

SCREW

SETSCREW - 1/2 UNF, special

4шт.

17a

K771959

SUPPORT

PLATE - standard clearance

2шт.

K773452

SUPPORT

PLATE - left-hand, high clearance

1шт.

17b

K773450

SUPPORT

PLATE - right-hand, high clearance

1шт.

18

K691839

BOLT

- 1/2 UNC x 2-1/4 in.

4шт.

19

K771938

BUSHING

NYLON BUSH

4шт.

K691835

WASHER

- 1/2 in., special

4шт.

K626686

WASHER

- 1/2 in.

4шт.

20

K772134

PAD

NYLON PAD

2шт.

K626345

LOCK WASHER

SPRING WASHER - 1/2 in.

4шт.

280431

NUT,1/2"-13, G5

4шт.

21

K691960

SCREW

SETSCREW - 1/2 UNC x 1-5/8 in.

6шт.

K626345

LOCK WASHER

SPRING WASHER - 1/2 in.

6шт.

K626686

WASHER

- 1/2 in.

6шт.

K773441

GUARD

MUD-SHIELD - left-hand fender

1шт.

22

K773440

GUARD

MUD-SHIELD - right-hand fender

1шт.

23

K602740

SCREW

- 1/4 UNC x 5/8 in., Serial Range: (Mud-shields-fenders)

8шт.

K626682

WASHER

- 1/4 in., Serial Range: (Mud-shields-fenders)

8шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in., Serial Range: (Mud-shields-fenders)

8шт.

K607043

NUT

- 1/4 UNC, Serial Range: (Mud-shields-fenders)

8шт.

24

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. (Fenders to frame platforms)

6шт.

25

K772133

STRIP

NYLON STRIP (Fenders to frame platforms)

2шт.

K626682

WASHER

- 5/16 in. (Fenders to frame platforms)

6шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Fenders to frame platforms)

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 in. (Fenders to frame platforms)

6шт.

K951925

FRAME

PLATFORM - left-hand (990, 995, 990G, 995G), Includes: Ref. 27 & 28

1шт.

K947468

FRAME

PLATFORM - left-hand (996, 996G), Includes: Ref. 27 & 28

1шт.

26

K943561

PLATFORM - right-hand, Includes: Ref. 27 & 28

1шт.

27

K904258

SPHERICAL BEARING

BEARING BUSH

1шт.

28

K85415

BRACKET

- bearing

1шт.

29a

K603003

SCREW

SETSCREW - 7/16 UNC x 1 in. (Platforms to main frame)

10шт.

29b

K603005

SCREW

SETSCREW - 7/16 UNC x 1-1/4 in. (Platforms to main frame)

2шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in. (Platforms to main frame)

12шт.

K953069

STEP

STIRRUP - left-hand (990, 995, 990G, 995G)

1шт.

K944300

STEP

STIRRUP - left-hand (996, 996G)

1шт.

30a

K944301

STEP

STIRRUP - right-hand

1шт.

K945357

STEP

STIRRUP - left-hand (High clearance)

1шт.

30b

K945358

STEP BOLT

STIRRUP - right-hand (High clearance)

1шт.

31

K602803

BOLT

SETSCREW - 5/16 UNC x 3/4 in.

4шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 1/4 UNC

4шт.

32

K772410

SEAT RAIL

1шт.

K773509

COLLAR

2шт.

33

K603926

SCREW

SETSCREW - 1/4 UNC x 3/4 in.

2шт.

K19470

WASHER

- 1/4 in. (990, 995, 990G, 995G)

2шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in.

2шт.

K607043

NUT

- 1/4 UNC

2шт.
