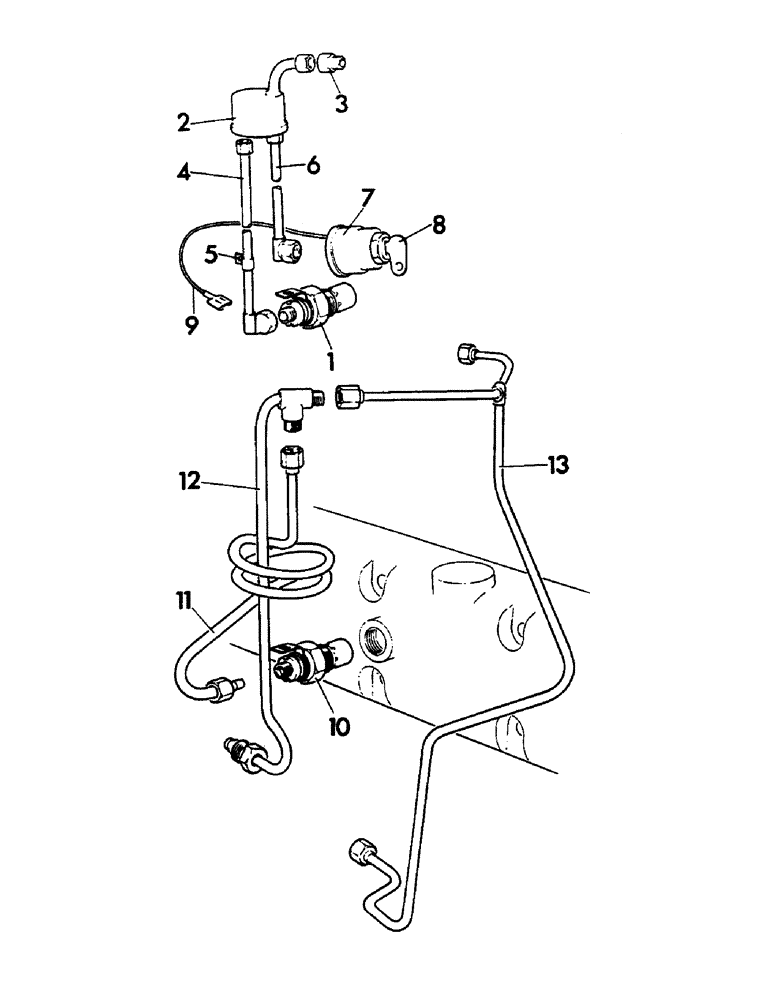

Запчасти Case IH 990 (A74) - ENGINE, THERMOSTAT UNITS, OPTIONAL EQUIPMENT, 885 DIESEL TRACTORS (01) - ENGINE

K931338

NO LONGER SERVICED

ENGINE THERMOSTART UNIT (U1796) 885 Diesel Tractors (Optional Equipment)

1шт.

Used on model 885, S/N 633690 and after

1шт.

1

K928523

GLOW PLUG

THERMOSTART (CAV 1854102)

1шт.

K19502

WASHER

FIBRE WASHER

1шт.

2

K944744

RESERVOIR

1шт.

3

K618900

ADAPTER

ADAPTOR, Serial Range: reservoir-tank

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER

2шт.

4

K947314

HOSE

PIPE, Serial Range: reservoir-Thermostart

1шт.

5

K621681

CLIP

2шт.

6

K947316

PIPE

, Serial Range: tee-piece-reservoir

1шт.

7

K929365

IGNITION SWITCH

ISOLATING AND STARTER SWITCH (Lucas 35670B)

1шт.

8

K920929

KEY

switch

2шт.

K920930

NUT

special

1шт.

K920931

WASHER

SPRING WASHER, special

1шт.

9

K940315

ELECTRICAL WIRE

LEAD, Serial Range: switch-Thermostart

1шт.

K950194

DECAL

TRANSFER, ignition switch

1шт.

K930149

SPARE PART

ENGINE THERMOSTART UNIT (U1381) 885 Diesel tractors (Optional Equipment)

1шт.

Used on model 885, up to 633680

1шт.

10

K928523

GLOW PLUG

THERMOSTART, (CMV 1854102)

1шт.

K19502

WASHER

FIBRE WASHER, 7/8 in.

1шт.

11

K940300

RESERVOIR

PIPE COIL

1шт.

12

K940302

PIPE

filter leak-off

1шт.

13

K948354

PIPE

injection pump leak-off, replaces K940304

1шт.

K940315

ELECTRICAL WIRE

LEAD, Serial Range: switch-Thermostart

1шт.

K929365

IGNITION SWITCH

ISOLATING AND STARTER SWITCH (Lucas 35670B)

1шт.
