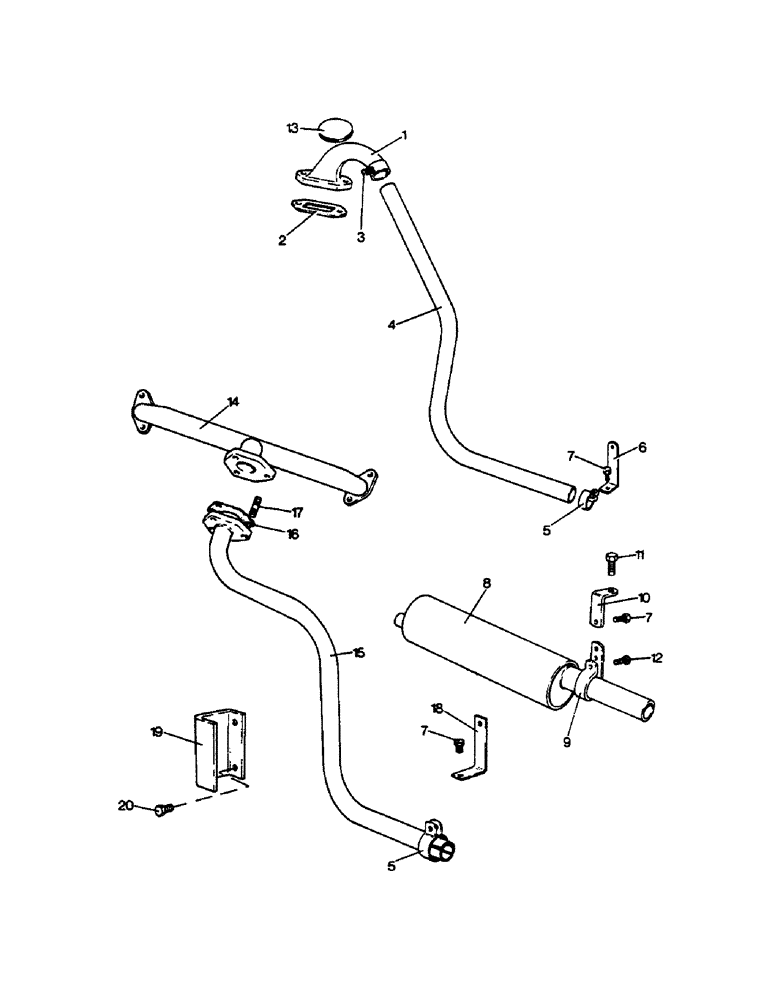

Запчасти Case IH 990 (A32) - ENGINE, DOWNSWEPT EXHAUST, 990, 995 AND 996 TRACTORS, OPTIONAL EQUIPMENT (01) - ENGINE

K907095

NO LONGER SERVICED

DOWNSWEPT EXHAUST, U392, Includes: Ref. 1 - 13

1шт.

K907095 Downswept Exhaust is complete.

1шт.

Used on model 996, S/N 11082206 and after

1шт.

Used on model 990, S/N 868055 and after

1шт.

Used on model 995, S/N 935490 and after

1шт.

1

K902322

PIPE, EXHAUST SYSTEM

EXHAUST PIPE BEND

1шт.

2

K68327

GASKET

1шт.

3

K627749

GROMMET

LOCKING SCREW, 3/8 BSF, replaces K624747

1шт.

K19403

NUT

3/8 BSF

1шт.

4

K907097

MUFFLER

EXHAUST PIPE

1шт.

5

K10455

CLIP

1шт.

6

K902325

SUPPORT

STRAP, front

1шт.

7

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

BOLT, 5/16 UNC x 3/4 in.

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

2шт.

8

K910539

MUFFLER

SILENCER

1шт.

9

K911901

CLIP

silencer

1шт.

10

K910822

WASHER

SUPPORT STRAP, rear

1шт.

11

K603274

SCREW

BOLT, 5/8 UNC x 1-1/2 in., strap to hitch bracket

1шт.

K19485

WASHER

SPRING WASHER, 5/8 in., strap to hitch bracket

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Strap to hitch bracket 5/8"-11, G5

1шт.

12

K602840

SCREW

BOLT, 5/16 UNC x 1/2 in., Serial Range: clip-strap

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, clip to strap

11шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., Serial Range: clip-strap

1шт.

13

K914347

INSERT

RUBBER INSERT, bonnet aperture (replaces K914247)

1шт.

K932023

NO LONGER SERVICED

DOWNSWEPT EXHAUST, U1981, Includes: parts listed below

1шт.

Used on model 996, up to S/N 11082206

1шт.

Used on model 990, up to S/N 868055

1шт.

Used on model 995, up to S/N 934590

1шт.

14

K919574

X

MANIFOLD, downswept exhaust

1шт.

15

K954063

PIPE, EXHAUST SYSTEM

PIPE, Serial Range: manifold-silencer

1шт.

16

K912441

GASKET

, Serial Range: pipe-manifold

1шт.

17

K608203

STUD

3/8 UNC x 1-7/16 in., Serial Range: pipe-manifold

3шт.

280136

NUT,3/8"-16, G8

Pipe to manifold 3/8"-16, G8

3шт.

8

K910539

MUFFLER

SILENCER

1шт.

5

K10455

CLIP

front pipe

1шт.

18

K954464

SUPPORT

STRAP

1шт.

7

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in.

1шт.

K600701

BOLT

NUT 5/16 UNC

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

1шт.

9

K911901

CLIP

rear pipe

1шт.

10

K910822

WASHER

SUPPORT STRAP

1шт.

12

K602840

SCREW

SETSCREW, 5/16 UNC x 1/2 in., Serial Range: clip-strap

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, clip to strap

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., Serial Range: clip-strap

1шт.

7

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in., clip to pipe

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, clip to pipe

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., Serial Range: clip-pipe

1шт.

11

K603274

SCREW

SETSCREW, 5/8 UNC x 1-1/2 in., strap to hitch bracket

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Strap to hitch bracket 5/8"-11, G5

1шт.

K19485

WASHER

SPRING WASHER, 5/8 UNC, strap to hitch bracket

1шт.

19

K953189

GUARD

HEAT SHIELD, steering ram pipes

1шт.

20

K603302

SCREW

SETSCREW, 5/8 UNC x 1 in., shield to main frame (replaces K603301)

2шт.

K19484

LOCK WASHER

SPRING WASHER, 5/8 in., shield to main frame

2шт.
