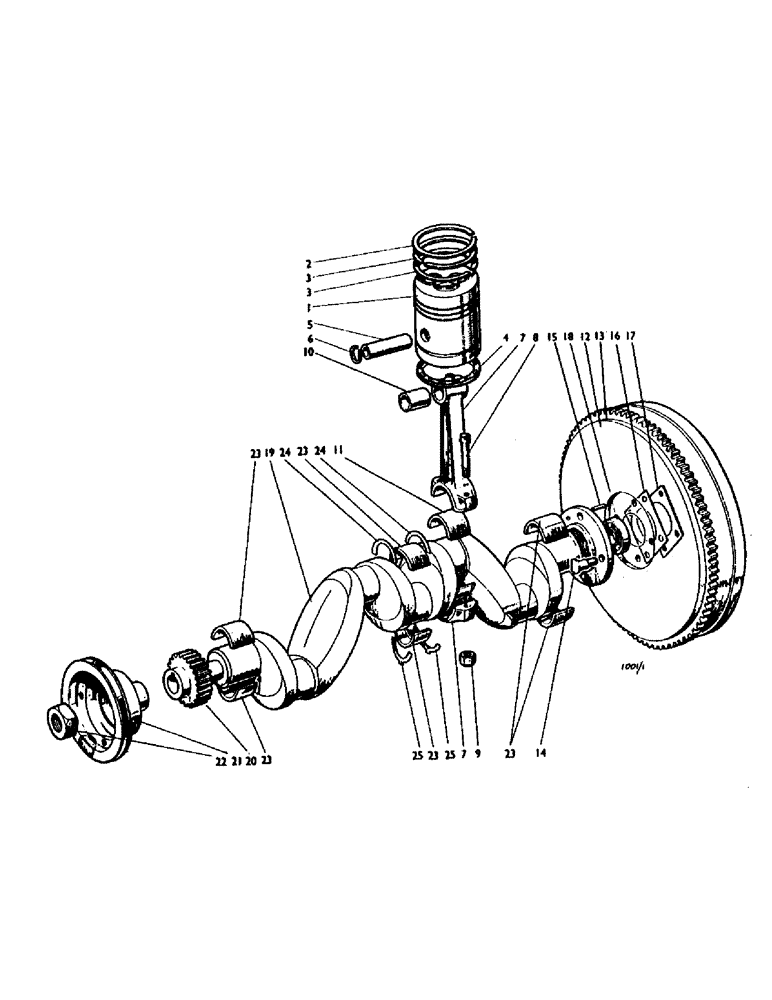

Запчасти Case IH 990 (A04) - ENGINE, PISTONS AND CRANKSHAFT, 990, 995, 996, 1210 AND 1212 TRACTORS (01) - ENGINE

1a

K949721

PISTON & RINGS KIT

PISTON AND GUDGEON PIN ASSEMBLY, standard, replaces K943883 (990), Includes: Ref. 2 - 6

4шт.

Ref 1a - 2 5/8" dia. - 2.626" from ctr. of wrist pin hole to top. 10/11/95

1шт.

1b

K949474

PISTON & RINGS KIT

PISTON AND GUDGEON PIN ASSEMBLY, standard, replaces K943880 (995, 996, 1210, 1212), Includes: Ref. 2 - 6

4шт.

Ref 1b - 2 5/8" dia. - 2.376" from ctr. of wrist pin hole to top. 10/11/95

1шт.

2

K943881

RING, PISTON

PISTON RING, No. 1 compression

1шт.

Ref # 2 - to be used with new engines.

1шт.

3

K943882

RING, PISTON

PISTON RING, Nos. 2 and 3 compression

2шт.

4

K917409

SCRAPER

PISTON RING, scraper, replaces K915242

1шт.

5

K904370

PIN

GUDGEON PIN

1шт.

6

K34501

RING, SNAP

CIRCLIP, 1-1/4 in. internal dia.

2шт.

7

K80043

ROD, CONNECTING

CONNECTING ROD AND CAP ASSEMBLY, Includes: Ref. 8 - 10

4шт.

8

K905198

BOLT

connecting rod

2шт.

9

K623151

LOCK NUT

7/16 BSF, self-locking, replaces K15135

2шт.

10

K31669

BEARING

BUSH, small end

1шт.

11

K911904

HALF-BEARING, CRANKS

BEARING, big end half (standard)

8шт.

REF 11 K911904 - IF DEALER IS LOOKING FOR A ROD.010" BEARING - THE PART NUMBER IS K207497....020" BEARING PART NUMBER IS K928558...22MAR96...GLC

1шт.

12a

K948018

FLYWHEEL

AND STARTER RING ASSEMBLY, replaces K915310 (1212, 1210), Includes: Ref. 13

1шт.

12b

K947995

FLYWHEEL

AND STARTER RING ASSEMBLY, replaces K915310 (996), Includes: Ref. 13

1шт.

12c

K947979

FLYWHEEL

AND STARTER RING ASSEMBLY, replaces K906673 (990, 995), Includes: Ref. 13

1шт.

12d

K947983

FLYWHEEL

AND STARTER RING ASSEMBLY, replaces K906670 (single clutch), Includes: Ref. 13

1шт.

13

K36134

GEAR

STARTER RING

1шт.

14

K903431

STEP BOLT

7/16 UNF, special

4шт.

15

K10629

PIN

DOWEL, 1/2 x 15/16 in.

1шт.

16

K910883

WASHER

TABWASHER

1шт.

K616968

NUT

7/16 UNF

4шт.

17a

K903255

DISC

LOCATING DISC (990, 995)

1шт.

17b

K912323

HOUSING

LOCATING DISC (996, 1210, 1212)

1шт.

18

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

PILOT

1шт.

19a

K962224

CRANKSHAFT

with bearings and thrust washers (990)

1шт.

Ref # 19a - Stamp 497 p.b. 39-76 10/11/95

1шт.

19b

K962157

CRANKSHAFT

with bearings and thrust washers (995, 996, 1210, 1212)

1шт.

Ref # 19b - Stamp 55 p.b. 39-76 10/11/95

1шт.

20a

K945094

GEAR

34 teeth, steel

1шт.

Used on model 990, S/N E42772 and after

1шт.

Used on model 995, S/N E41927 and after

1шт.

Used on model 996, S/N E56331 and after

1шт.

Used on model 1210, S/N E25713 and after

1шт.

Used on model 1210 (Bosch), S/N E24732 and after

1шт.

Used on model 1212, S/N E18386 and after

1шт.

20b

K944809

GEAR

23 teeth, replaces K940082

1шт.

Used on model 1210 (Bosch), up to S/N E24732

1шт.

Used on model 1212, up to S/N E18386

1шт.

Used on model 1210, up to S/N E25713

1шт.

Used on model 990, up to S/N E42772

1шт.

Used on model 995, up to S/N E41927

1шт.

Used on model 996, up to S/N E56331

1шт.

K19608

KEY

Woodruff No. 606

1шт.

21a

K944348

PULLEY

with front-drive fitting

1шт.

21b

K944349

PULLEY

without front-drive fitting

1шт.

22

K623300

NUT

1 in., special

1шт.

K626403

WASHER

1 in., special

1шт.

23

K928541

HALF-BEARING, CRANKS

MAIN BEARING, upper and lower (standard)

6шт.

24

K928542

SET

THRUST WASHER, upper (standard)

2шт.

25

K928543

SET

THRUST WASHER, lower (standard)

2шт.

K917407 best used for engines with some wear.

1шт.
