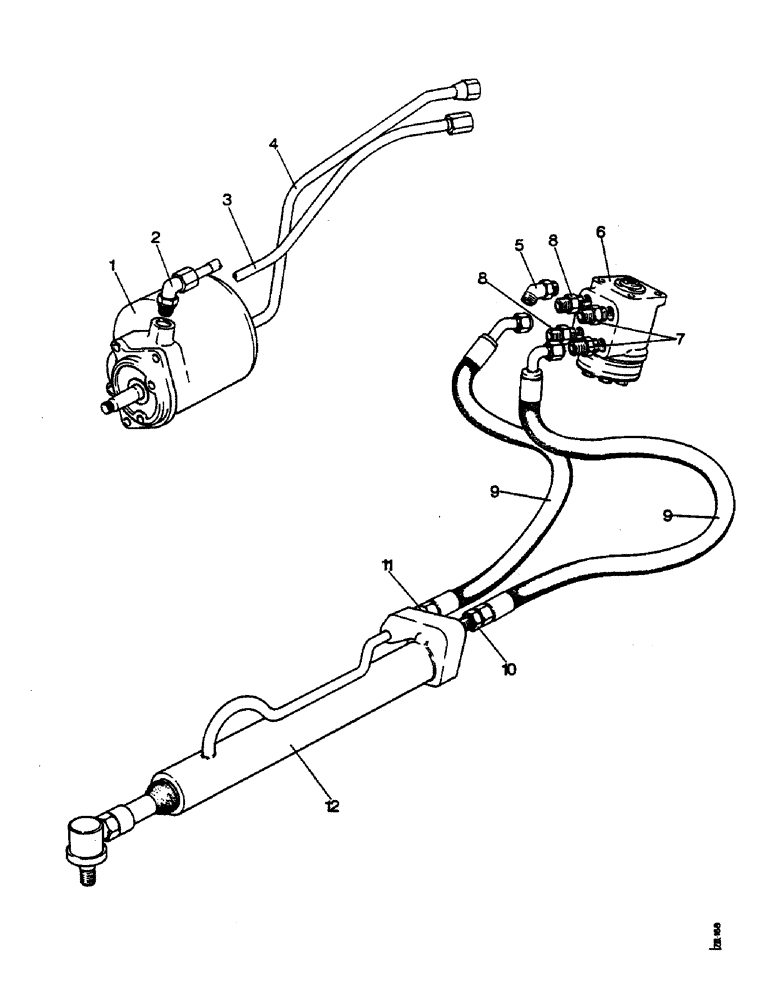

Запчасти Case IH 990 (H30) - STEERING AND FRONT AXLE, PIPES AND FITTINGS - HYDROSTATIC POWER STEERING, STANDARD 1212 TRACTORS Steering & Front Axle

1

K944944

PUMP

ASSEMBLY (See Figure H12)

1шт.

Eliminate leaks from the K944944, by fitting with k947299 Filler Tube Assy, K623829 Filler Plug, K626767 Sealing Washer, K623800 Breather Plug & K19504 Fiber Washer.

1шт.

2

K622110

FITTING

ELBOW, 9/16 UNF, pump outlet

1шт.

K623649

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

'O' RING, special

1шт.

3a

K945012

PIPE

pump to steering valve (1210, 1212)

1шт.

3b

K946003

PIPE

pump to steering valve (996, 990, 995, B and after)

1шт.

3b is only pipe listed for the 990 - 995 book.

1шт.

3c

K946001

PIPE

pump to steering valve (990, 995)

1шт.

K946125

TUBE

NYLON SLEEVE, 19/32 x 1 in

3шт.

4a

K945013

PIPE

steering valve to pump (1210, 1212)

1шт.

4b

K946004

PIPE

steering valve to pump (996, 990, 995, B and after)

1шт.

4c

K946002

PIPE

steering valve to pump (990, 995)

1шт.

5

K617750

FITTING

ELBOW, 3/4 UNF (1210, 1212)

1шт.

K623591

O-RING

'O' RING, 41/64 in internal dia. (1210, 1212)

1шт.

6a

K946083

VALVE

ORBITROL STEERING VALVE, (Danfoss OSP125)

1шт.

7a

K626062

FITTING

UNION, short, 3/4 UNF x 7/8 UNF (990, 995, 996)

2шт.

7b

K626062

FITTING

UNION, short, 3/4 UNF x 7/8 UNF (1210, 1212)

1шт.

6b

K951042

HYDRAULIC STEERING

ORBITROL STEERING VALVE (Char-Lynn UD12)

1шт.

7c

K626072

FITTING

UNION, long, 3/4 UNF x 7/8 UNF (990, 995, 996)

2шт.

7d

K626072

FITTING

UNION, long, 3/4 UNF x 7/8 UNF (1210, 1212)

1шт.

8

K626039

FITTING

UNION, 3/4 UNF

2шт.

9a

K940262

HOSE

PIPE, flexible, 3/4 UNF x 34 in (996, 1210, 1212, 990, 995, B and after)

2шт.

9b

K945757

HOSE

PIPE, flexible, 3/4 UNF x 30 in (990, 995)

2шт.

10

K626039

FITTING

UNION, 3/4 UNF

1шт.

K623591

O-RING

'O' RING, 41/64 in internal dia.

1шт.

11

K945714

VALVE

LINE VALVE ASSEMBLY (See Figure H9)

1шт.

12

K945702

CYLINDER

STEERING RAM ASSEMBLY (See Figure H9)

1шт.

No seal kit available, must order K207419, plus connector.

1шт.
