Запчасти Case IH 990 (H28) - STEERING AND FRONT AXLE, PIPES AND FITTINGS - HYDROSTATIC POWER STEERING, STANDARD 1212 TRACTORS Steering & Front Axle

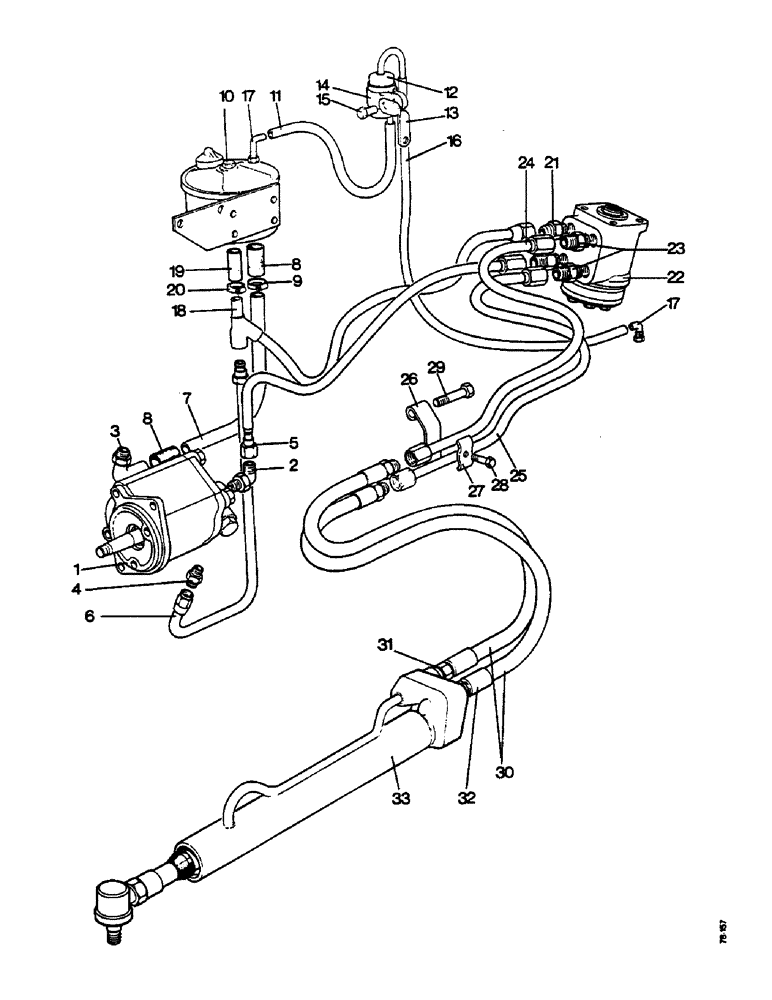

Схема запчастей Case IH 990 - (H28) - STEERING AND FRONT AXLE, PIPES AND FITTINGS - HYDROSTATIC POWER STEERING, STANDARD 1212 TRACTORS Steering & Front Axle
25
33
1
10
28
22
16
8
29
21
14
6
24
19
7
15
32
5
23
13
26
3
2
9
30
20
18
27
4
12
17
11
8
31
17

Артикул

Название

Примечание

Количество

1

K918993

PUMP

ASSEMBLY (See Figure H11)

1шт.

2

K622110

FITTING

ELBOW, 9/16 UNF, pump outlet

1шт.

K623649

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

'O' RING, special

1шт.

3

K924262

PIPE

ELBOW, 7/8 UNF, pump inlet

1шт.

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

'O' RING, 3/4 in dia.

1шт.

4

K626028

FITTING

ADAPTOR, 5/8 - 3/4 UNF, pump by-pass

1шт.

5a

K929967

PIPE

pump to steering valve (1210, 1212)

1шт.

5b

K943963

PIPE

pump to steering valve (996)

1шт.

5c

K942216

PIPE

pump to steering valve (990, 995)

1шт.

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

NYLON SLEEVE

1шт.

6

K924229

PIPE

pump by-pass

1шт.

7

K924230

PIPE

, Serial Range: reservoir-pump

1шт.

8

K924391

HOSE

5/8 x 2-1/8 in

2шт.

9

K14679

HOSE

CLIP, 9/16 in

4шт.

10

K928767

RESERVOIR

ASSEMBLY (See Figure H11)

1шт.

11

K940961

BREATHER

PLASTIC TUBE, 5/16 x 10-1/2 in

1шт.

12

K940377

SEPARATOR

OIL SEPARATOR

1шт.

13

K929319

SUPPORT

BRACKET, oil separator

1шт.

14

K913053

WASHER

CLAMP, Serial Range: bracket-separator

1шт.

K929320

CLIP

RUBBER STRIP, Serial Range: bracket-separator

1шт.

15

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in, bracket to separator

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: bracket-separator

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, bracket to separator

1шт.

16a

K929321

BREATHER

PLASTIC TUBE, 5/16 x 20 in (1210, 1212)

1шт.

16b

K928174

BREATHER,0.375" OD x 28.75" L

PLASTIC TUBE, 5/16 x 28-3/4 in (990, 995, 996)

1шт.

17

K928171

BREATHER

ELBOW, 1/2 UNF

1шт.

K15735

WASHER

1/2 in

2шт.

K617052

NUT

1/2 UNF

1шт.

18a

K929968

steering valve to reservoir (1210, 1212)

1шт.

18b

K943967

PIPE, steering valve to reservoir (996)

1шт.

18c

K942218

PIPE

steering valve to reservoir (990, 996)

1шт.

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

NYLON SLEEVE

1шт.

19

K926992

HOSE

1/2 x 2-1/8 in

1шт.

20

K14679

HOSE

CLIP, 9/16 in

2шт.

21

K617750

FITTING

ELBOW, 3/4 UNF, 45 deg.

1шт.

22

K946083

VALVE

ORBITROL STEERING VALVE (See Figure H08)

1шт.

23

K626039

FITTING

UNION, 3/4 UNF

3шт.

K623591

O-RING

'O' RING, 41/64 in internal dia.

3шт.

24

K942219

PIPE

steering ram, left-hand (990, 995, 996)

1шт.

25

K942220

PIPE

steering ram, right-hand (990, 995, 996)

1шт.

26a

K943983

CLIP

SUPPORT, pipes to clutch housing (996)

1шт.

26b

K924994

SUPPORT

pipes to clutch housing (990, 995)

1шт.

27

K926982

CLAMP

pipes to clutch housing (990, 995, 996)

1шт.

28

K602737

SCREW

SETSCREW, 1/4 UNC x 1 in, pipes to clutch housing (990, 995, 996)

1шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in, pipes to clutch housing (990, 995, 996)

1шт.

29

K600417

BOLT

3/8 UNC x 3-1/4 in, pipes to clutch housing (990, 995, 996)

1шт.

K19472

WASHER

3/8 in, pipes to clutch housing (990, 995, 996)

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, pipes to clutch housing (990, 995, 996)

1шт.

280136

NUT,3/8"-16, G8

Pipes to clutch housing (990, 995, 996) 3/8"-16, G8

1шт.

30a

K940262

HOSE

PIPE, flexible, 3/4 UNF x 34 in (1210, 1212)

2шт.

30b

K928377

HOSE

PIPE, flexible, 3/4 UNF x 26 in (990, 995, 996)

2шт.

30c

K945757

HOSE

PIPE, flexible, 3/4 UNF x 30 in (996 with cab)

1шт.

31

K626039

FITTING

UNION, 3/4 UNF

1шт.

K623591

O-RING

'O' RING, 41/64 in internal dia.

1шт.

32

K945714

VALVE

LINE VALVE ASSEMBLY (See Figure H9)

1шт.

33

K945702

CYLINDER

STEERING RAM ASSEMBLY (See Figure H9)

1шт.

Выбрано товаров: 56
