Запчасти Case IH 990 (H24) - STEERING & FRONT AXLE, PUMP AND RESERVOIR - COMBINED - HYDROSTATIC STEERING, STANDARD 1212 TRACTORS Steering & Front Axle

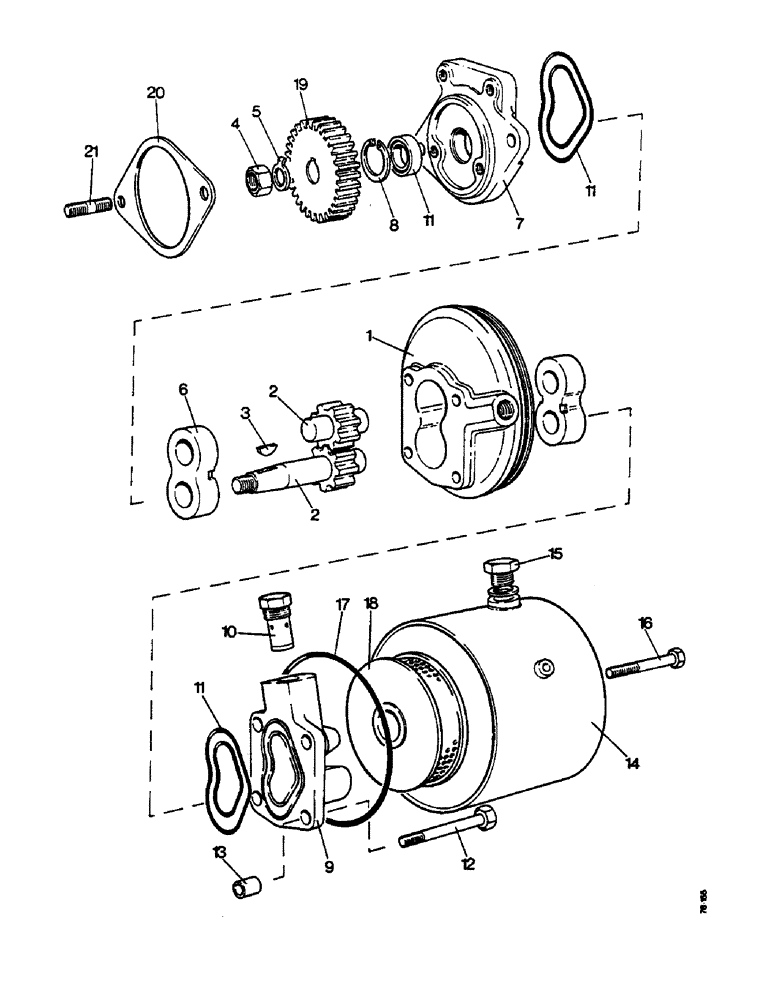

Схема запчастей Case IH 990 - (H24) - STEERING & FRONT AXLE, PUMP AND RESERVOIR - COMBINED - HYDROSTATIC STEERING, STANDARD 1212 TRACTORS Steering & Front Axle
6
18
8
17
2
21
16
13
10
4
11
15
19
5
11
11
1
9
2
7
12
14
3
20

Артикул

Название

Примечание

Количество

1

K944944

PUMP

AND RESERVOIR ASSEMBLY, Plessey 550/1/17331, Includes: Ref. 2 - 18 and 'o' ring

1шт.

K964815

GEAR

ROTOR PACK, Includes: Ref. 2 - 5

1шт.

2

K964934

GEAR

ROTORS, pair

1шт.

3

K19604

KEY

Woodruff No. 405, Serial Range: gear-pump

1шт.

4

425-157

JAM NUT,Jam, 7/16"-20, G5

7/16 UNF, gear to pump

1шт.

5

K626380

WASHER

TABWASHER, Serial Range: gear-pump

1шт.

6

K962189

BEARING

S

2шт.

7

K964925

FLANGE

MOUNTING FLANGE (Must order complete assembly)

1шт.

8

K962097

RING, SNAP

CIRCLIP, 13/16 in dia.

1шт.

9

K964923

COVER

pump body

1шт.

10

K964932

VALVE

RELIEF VALVE, pre-set assembly

1шт.

11

K964935

SEAL

SEAL PACK, oil seal and 'O' rings

1шт.

12

K964921

BOLT

3/8 UNC x 3-1/8 in, Serial Range: cover-body

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, Serial Range: cover-body

4шт.

13

K964920

PIN

RING DOWEL, Serial Range: cover-body

2шт.

14

K964933

TANK

RESERVOIR

1шт.

15

K623825

PLUG

FILLER PLUG, 1/2 in BSP

1шт.

K626769

WASHER

SEALING WASHER, filler plug

1шт.

16

K964930

BOLT

SETSCREW, 5/16 UNC x 2-1/4 in

1шт.

K964928

SEAL

ING WASHER, 5/16 in

1шт.

17

K964929

RESERVOIR

SEALING RING, Serial Range: reservoir-pump

1шт.

18

K964931

FILTER

ELEMENT, with sealing rings

1шт.

K694924

ELEMENT, (Plessey 550/4/09361)

1шт.

K14952

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

'O' RING, breather, reservoir

1шт.

K622110

FITTING

ELBOW, 9/16 UNF, pump outlet

1шт.

19

K954098

GEAR

28 teeth

1шт.

Ref #19 - If dealer is looking for an 18 tooth gear, he may have the optional pump on prior page, p/n K918993. The gear p/n in this pump is K944813. 5/12/99 sc

1шт.

20

K919729

GASKET,0.76mm Thk

, Serial Range: pump-engine

1шт.

21

K608147

STUD

5/16 UNC x 1 in, Serial Range: pump-engine

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: pump-engine

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, pump to engine

2шт.

Выбрано товаров: 31
