Запчасти Case IH 990 (H16) - STEERING AND FRONT AXLE, STEERING COLUMN, ALL MODELS WITH HYDROSTATIC STEERING Steering & Front Axle

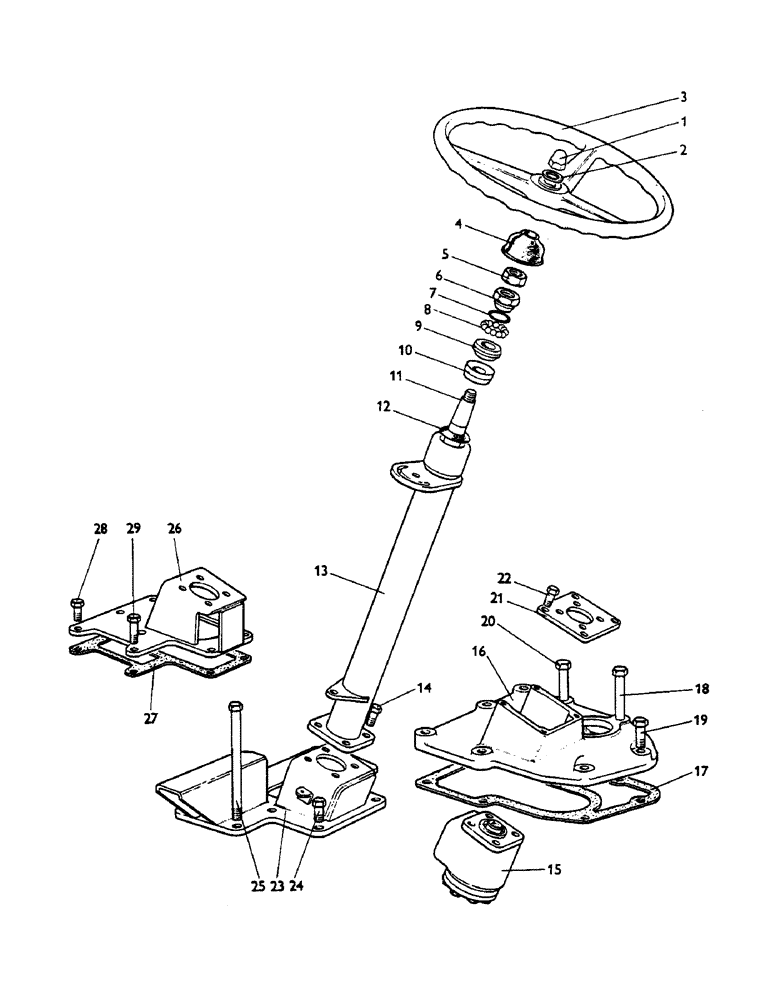

Схема запчастей Case IH 990 - (H16) - STEERING AND FRONT AXLE, STEERING COLUMN, ALL MODELS WITH HYDROSTATIC STEERING Steering & Front Axle
13
28
15
16
29
27
21
7
14
9
3
17
6
23
19
25
24
12
5
18
2
22
10
1
26
11
20
8
4

Артикул

Название

Примечание

Количество

1

K905679

NUT

DOMED NUT, 5/8 UNC

1шт.

2

K626671

WASHER

5/8 in, special

1шт.

3

K912634

HANDWHEEL

STEERING WHEEL, black

1шт.

K914235

WHEEL

STEERING WHEEL, 16 in, orchid white

1шт.

K19608

KEY

Woodruff No. 606

1шт.

4

K923681

SEAL

DIRT EXCLUDER

1шт.

5

K924967

NUT

LOCKNUT

1шт.

6

K903463

BEARING CONE

ADJUSTABLE BEARING CONE

1шт.

7

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

'O' RING, 1-1/4 in internal dia.

1шт.

8

K13506

BALL

STEEL BALL, 3/8 in

12шт.

9

K903462

SPHERICAL BEARING

LOWER BEARING

1шт.

10

K903461

SPACER

SPHERICAL SEATING

1шт.

11a

K925264

SHAFT

19-1/4 in (1210, 1212)

1шт.

11b

K920940

SHAFT

18-3/4 in (990, 995, 996)

1шт.

11c

K943340

SHAFT

17-1/8 in (885)

1шт.

12

K903469

PAD, RUBBER

RUBBER BAFFLE

1шт.

13a

K929146

SUPPORT ASSY.

STEERING COLUMN (1210, 1212)

1шт.

13b

K920943

SUPPORT

STEERING COLUMN (990, 995, 996)

1шт.

13c

K943336

SUPPORT ASSY.

STEERING COLUMN

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

14

K600403

BOLT

3/8 UNC x 1-3/8 in, Serial Range: column-support

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, Serial Range: column-support

4шт.

15

K946083

VALVE

ORBITROL STEERING UNIT (Type OSP125)

1шт.

Ref # 15 - See S B DB29-74

1шт.

K962387

GASKET KIT

SEAL PACK, steering unit

1шт.

Ref #15:seal pack-If steering handpump has Danfoss part #150-1051 on it, order seal kit P/N 3141548R91. By: tsg bc 9/18/98

1шт.

16

K940116

SUPPORT

CASTING (1212)

1шт.

17

K940136

GASKET

support to gearbox cover (1212)

1шт.

18

K600840

BOLT

1/2 UNC x 10-1/4 in (support to gearbox cover) (1212)

1шт.

19

K600806

BOLT

1/2 UNC x 2 in, support to gearbox cover (1212)

7шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, support to gearbox cover (1212)

8шт.

20

K600836

BOLT

1/2 UNC x 9-1/4 in, support to gearbox cover (1212)

1шт.

K626686

WASHER

1/2 in, support to gearbox cover (1212)

1шт.

21

K928118

SUPPORT

PLATE, steering column (1212)

1шт.

22

K602903

SCREW

SETSCREW, 3/8 UNC x 7/8 in, plate to support (1212)

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, plate to support (1212)

4шт.

23

K940357

SUPPORT

BRACKET

1шт.

24

K603105

SCREW

SETSCREW, 1/2 UNC x 1-1/8 in, bracket to gearbox (1210)

8шт.

25

K600833

BOLT

1/2 UNC x 8-1/2 in, bracket to gearbox cover (1210)

2шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, bracket to gearbox cover (1210)

10шт.

26a

K923596

SUPPORT

BRACKET (990, 995, 996)

1шт.

27a

K89395

GASKET

bracket to gearbox cover (990, 995, 996)

1шт.

28a

K602903

SCREW

SETSCREW, 3/8 UNC x 7/8 in, bracket to gearbox cover (990, 995, 996)

4шт.

29a

K602906

SCREW

SETSCREW, 3/8 UNC x 1-1/4 in, bracket to gearbox cover (990, 995, 996)

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in (990, 995, 996)

6шт.

26b

K943335

SUPPORT

BRACKET (885)

1шт.

27b

K914138

GASKET

bracket to gearbox cover (885)

1шт.

28b

K600404

BOLT

3/8 UNC x 1-1/2 in, bracket to gearbox cover (885)

2шт.

29b

K602903

SCREW

SETSCREW, 3/8 UNC x 7/8 in, bracket to gearbox cover (885)

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, bracket to gearbox cover (885)

6шт.

Выбрано товаров: 50
