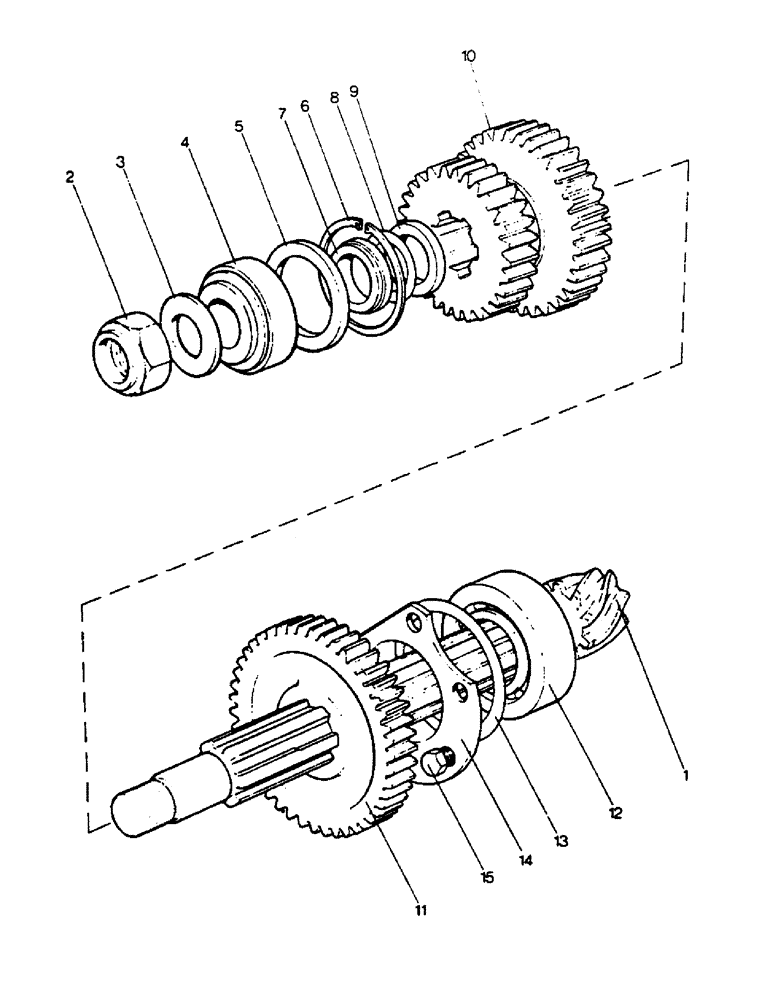

Запчасти Case IH 990 (C10) - GEARBOX, BEVEL PINION SHAFT, NON-SYNCHROMESH GEARBOXES, 885 AND 990 TRACTORS Gearbox

1

K962962

GEAR

BEVEL PINION AND SPIRAL GEAR, (7/43 teeth)

1шт.

2

K622803

NUT

NYLOC NUT, 1-1/8 BSF, left-hand

1шт.

3

K14687

WASHER

1-1/8 in.

1шт.

4

K620061

BEARING, ROLLER

TAPER ROLLER BEARING

1шт.

5

K627253

BUSHING

SPACER

1шт.

6

K17023

CIRCLIP

3 in. internal dia.

1шт.

7

K917844

BUSHING

DISTANCE PIECE

1шт.

8a

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

0.002 in.

1шт.

8b

K917846

SHIM

0.005 in.

1шт.

8c

K917847

SHIM

0.010 in.

1шт.

8d

K917848

SHIM

0.030 in.

1шт.

9

K627203

BUSHING

DISTANCE PIECE

1шт.

10

K942669

GEAR

DRIVEN GEAR, high and medium (28/35 teeth)

1шт.

11

K942732

GEAR

DRIVEN GEAR, low (47 teeth)

1шт.

12

K620131

ROLLER

BEARING

1шт.

13a

K942872

SHIM

0.002 in.

1шт.

13b

K942873

SHIM

0.003 in.

1шт.

13c

K942874

SHIM

0.010 in.

1шт.

13d

K942875

SHIM

0.030 in.

1шт.

14

K943068

COVER

PLATE, rear bearing

1шт.

15

K602954

SCREW

SETSCREW, 7/16 UNC x 1 in., special

5шт.
