Запчасти Case IH 990 (C06) - GEARBOX, SELECTOR MECHANISM, 885, 990, 995 AND 996 TRACTORS Gearbox

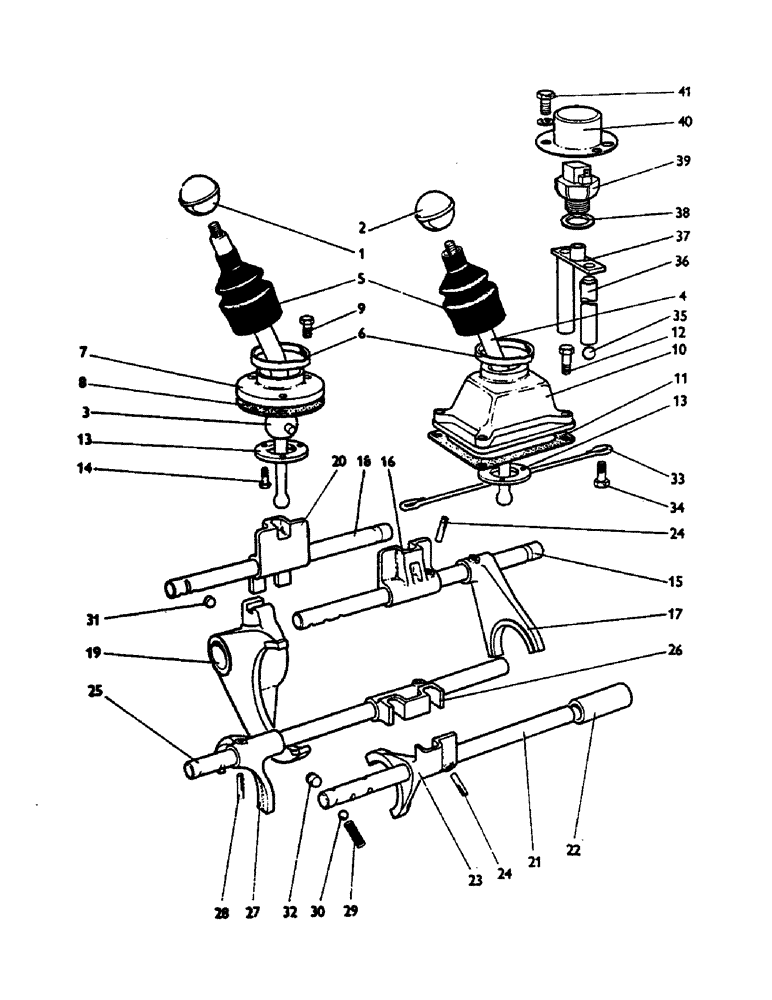

Схема запчастей Case IH 990 - (C06) - GEARBOX, SELECTOR MECHANISM, 885, 990, 995 AND 996 TRACTORS Gearbox
22
24
25
4
37
33
6
11
15
39
8
16
13
7
9
24
14
17
23
29
19
10
1
21
31
27
5
20
35
30
28
26
12
34
18
41
40
13
3
38
36
32
2

Артикул

Название

Примечание

Количество

1

K920787

KNOB

gear lever

1шт.

2

K902270

KNOB

range lever

1шт.

3

K943284

CONTROL LEVER

GEAR LEVER, (1, 2, 3 and reverse)

1шт.

4

K928775

SELECTOR

RANGE LEVER, (high/low)

1шт.

5

K929631

BOOT

DIRT EXCLUDER

2шт.

6

K621957

HOSE

CLIP, 2-3/8 in. dia.

2шт.

7

K929630

HOUSING

BALL HOUSING, gear lever

1шт.

8

K901835

GASKET

housing to gearbox cover

1шт.

9

K602703

SCREW

SETSCREW, 1/4 UNC x 3/4 in., housing to gearbox cover

3шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in., housing to gearbox cover

3шт.

10

K929629

BALL

HOUSING, range lever

1шт.

11

K915597

GASKET,0.2mm Thk

housing to gearbox cover

1шт.

12

K602706

SCREW

SETSCREW, 1/4 UNC x 1-1/8 in., housing to gearbox cover

4шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in., housing to gearbox cover

4шт.

13

K903074

SUPPORT

PLATE

2шт.

14

K690456

SCREW

SETSCREW, 3/16 whitworth x 3/8 in., Serial Range: plate-housings

6шт.

K904386

WASHER

TABWASHER, Serial Range: plate-housings

2шт.

15

K945213

SELECTOR

ROD, first and reverse

1шт.

16

K928573

SELECTOR

JAW, first and reverse

1шт.

17

K942472

SELECTOR

FORK, first and reverse

1шт.

18a

K945215

SELECTOR

ROD, second and third (synchromesh gearboxes)

1шт.

19a

K926310

SELECTOR

FORK, second and third (synchromesh gearboxes)

1шт.

20a

K928571

SELECTOR

JAW, second and third (synchromesh gearboxes)

1шт.

Ref 20a - Use K204778 one piece jaw and K624965 Springs (2) A51-83.

1шт.

18b

K945214

SELECTOR

ROD, second and third (non-synchromesh gearboxes)

1шт.

19b

K928828

SELECTOR

FORK, second and third (non-synchromesh gearboxes)

1шт.

21

K929322

SELECTOR

ROD, high and low

1шт.

22

K929417

BUSHING

SLEEVE, high and low

1шт.

23a

K928568

SELECTOR

FORK, high and low (12-speed)

1шт.

23b

K929628

SELECTOR

FORK, high and low (6-speed)

1шт.

24

K623748

PIN

MILLS PIN, 3/16 x 1-1/8 in.

6шт.

25

K928576

SELECTOR

ROD, slow/normal (12-speed)

1шт.

26

K928572

SELECTOR

JAW, slow/normal (12-speed)

1шт.

27

K928567

SELECTOR

FORK, slow/normal (12-speed)

1шт.

28

K623748

PIN

MILLS PIN, 3/16 x 1-1/8 in., slow/normal (12-speed)

1шт.

Ref 28 - Use K623887 SBA27-79 10/12/95

1шт.

29

K13507

SPRING

gear detent

4шт.

30

K13506

BALL

STEEL BALL, 3/8 in., detent

4шт.

31

K30430

LOCKING DEVICE

GEAR LOCK, 12-speed

1шт.

32

K915492

DOWEL

GEAR LOCK, high/low

1шт.

33

K914348

SPRING

BAULK SPRING, range lever, 12-speed

1шт.

34

K602703

SCREW

SETSCREW, 1/4 UNC x 3/4 in., gearbox cover

2шт.

K12256

WASHER

FIBRE WASHER, 1/4 in., gearbox cover

2шт.

K607251

NUT

DOMED NUT, 1/4 UNC, gearbox cover

2шт.

35

K13506

BALL

STEEL BALL, 3/8 in. dia.

2шт.

36

K945208

PLUNGER

lower

1шт.

37

K945204

PLUNGER

ASSEMBLY

1шт.

38

K626895

SHIM,.002" Thk

Switch to gearbox cover .002" Thk

1шт.

K626858

SHIM,.005" Thk

Switch to gearbox cover .005" Thk

1шт.

K626894

SHIM,.010" Thk

Switch to gearbox cover .010" Thk

1шт.

39

K940288

SWITCH

SAFETY SWITCH, starter

1шт.

40

K940284

COVER

safety switch

1шт.

41

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW, 1/4 UNC x 1/2 in.

3шт.

K626341

SPRING WASHER

SPRING WASHER, 1/4 in.

3шт.

Выбрано товаров: 54
