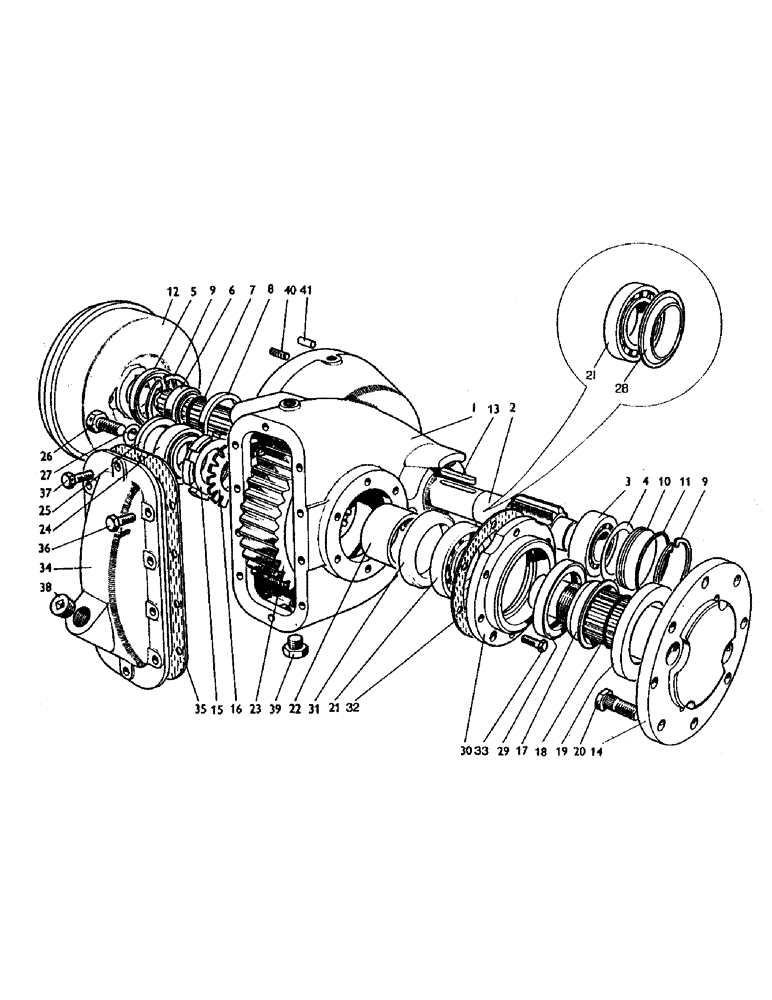

Запчасти Case IH 990 (D08) - FINAL DRIVES, FINAL DRIVE REDUCTION UNITS, 1210 AND 1212 TRACTORS Final Drive Reductions
№
Артикул
Название
Примечание
Количество
1a
K954072
GEAR
CASE, right-hand, standard clearance, cast iron, replaces K944892
1шт.
Used on model 1210, S/N 722038 and after
1шт.
Used on model 1212, S/N 1000972 and after
1шт.
K954071
GEAR
CASE, left-hand, standard clearance, cast iron, replaces K944892
1шт.
Used on model 1210, S/N 722038 and after
1шт.
Used on model 1212, S/N 1000972 and after
1шт.
1b
K944891
GEAR
CASE, standard clearance, spheroidal graphite iron
2шт.
Used on model 1210, S/N 722038 and after
1шт.
Used on model 1212, S/N 1000972 and after
1шт.
1c
K944890
GEAR
CASE, right-hand, high clearance, cast iron
1шт.
Used on model 1210, S/N 722038 and after
1шт.
Used on model 1212, S/N 1000972 and after
1шт.
K944889
GEAR
CASE, left-hand, high clearance, cast iron
1шт.
Used on model 1210, S/N 722038 and after
1шт.
Used on model 1212, S/N 1000972 and after
1шт.
1d
K944891
GEAR
CASE, standard clearance, cast iron (replaces K920445)
2шт.
Used on model 1210, up to S/N 722038
1шт.
Used on model 1212, up to S/N 1000972
1шт.
1e
K926291
SPARE PART
CASE, standard clearance, spheroidal graphite iron
2шт.
Used on model 1210, up to S/N 722038
1шт.
Used on model 1212, up to S/N 1000972
1шт.
1f
K940391
CASE
right-hand, high clearance, cast iron
1шт.
Used on model 1210, up to S/N 722038
1шт.
Used on model 1212, up to S/N 1000972
1шт.
K940390
CASE
left-hand, high clearance, cast iron
1шт.
Used on model 1210, up to S/N 722038
1шт.
Used on model 1212, up to S/N 1000972
1шт.
2a
K920435
SHAFT
SPUR PINION SHAFT, (9 teeth) (9/50 ratio)
2шт.
2b
K929253
SHAFT
SPUR PINION SHAFT, (10 teeth) (10/49 ratio)
2шт.
2c
K921298
SHAFT
SPUR PINION SHAFT, (11 teeth) (11/49 ratio)
1шт.
3
K19186
BEARING, ROLLER
TAPERED ROLLER BEARING
4шт.
4a
K907514
SHIM,.003" Thk
1шт.
4b
K907515
SHIM,.010" Thk
1шт.
5
K623455
SEAL
OIL SEAL, 2-1/2 x 3-1/4 x 3/8 in., replaces K623409
2шт.
6
K910390
COLLAR
2шт.
7
K15533
O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro
'O' RING, 1-3/4 in. internal dia.
2шт.
8
K904256
SPACER
DISTANCE PIECE
2шт.
9
K13042
RING, SNAP
CIRCLIP, 3-1/4 in. internal
4шт.
10
K929045
COVER
END COVER, 29 3/8" (replaces K907504)
2шт.
11
K623545
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
'O' RING, 3 in. internal dia.
2шт.
12
K921829
BRAKE DRUM
3-1/2 in. wide
2шт.
13
K622324
KEY
11/32 x 1/2 x 2-1/2 in.
4шт.
14a
K964869
DRIVE
FINAL DRIVE SHAFT, with ring nut, 3/4 studs, Includes: Ref. 15 - 17
2шт.
Used on model 1210, S/N 726413 and after
1шт.
Used on model 1212, S/N 1003007 and after
1шт.
14b
K964868
DRIVE
FINAL DRIVE SHAFT, with ring nut, 5/8 studs replaces K962919, Includes: Ref. 15 - 17
2шт.
Used on model 1210, up to S/N 726413
1шт.
Used on model 1212, up to S/N 1003007
1шт.
15
K85359
LOCK NUT
RING NUT, 2-3/4 in., special
2шт.
16
K85355
LOCK WASHER
TABWASHER
2шт.
17
K916497
COLLAR,69.93mm ID x 95.25mm OD x 32.89mm L
2шт.
18
K623595
O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro
'O' RING, 2-7/8 in. internal dia.
2шт.
19
K910397
SEAL
DIRT SHIELD
2шт.
20a
K611463
STUD
BOLT, 3/4 UNF x 2-1/2 in., special
16шт.
Used on model 1210, S/N 725180 and after
1шт.
Used on model 1212, S/N 1002647 and after
1шт.
20b
K611465
BOLT
3/4 UNF x 3-5/8 in., special, 14 x 34 cast centres
16шт.
Used on model 1210, S/N 725180 and after
1шт.
Used on model 1212, S/N 1002647 and after
1шт.
K617176
NUT
3/4 UNF
16шт.
Used on model 1210, S/N 725180 and after
1шт.
Used on model 1212, S/N 1002647 and after
1шт.
20c
K611266
BOLT
5/8 UNF x 2-1/8 in., special, standard wheels
16шт.
Used on model 1210, up to S/N 725180
1шт.
Used on model 1212, up to S/N 1002647
1шт.
K617171
WHEEL NUT
5/8 UNF, standard wheels
16шт.
Used on model 1210, up to S/N 725180
1шт.
Used on model 1212, up to S/N 1002647
1шт.
20d
K611271
BOLT
5/8 UNF x 2-1/2 in., special, P.A.V.T. wheels
16шт.
Used on model 1210, up to S/N 725180
1шт.
Used on model 1212, up to S/N 1002647
1шт.
K617170
NUT
5/8 UNF, P.A.V.T. wheels
16шт.
Used on model 1210, up to S/N 725180
1шт.
Used on model 1212, up to S/N 1002647
1шт.
K617210
NUT
ADAPTOR NUT, 3/4 in. wheel centres to 5/8 UNF studs
16шт.
Used on model 1210, up to S/N 725180
1шт.
Used on model 1212, up to S/N 1002647
1шт.
21
K19185
TAPERED BEARING
TAPERED ROLLER BEARING
2шт.
22a
K944893
SLEEVE
final drive shaft, replaces K910394
2шт.
22
K910394
SLEEVE
final drive shaft
2шт.
23a
K929252
WHEEL
SPUR WHEEL, (49 teeth) (10/49 ratio)
2шт.
23b
K918697
WHEEL
SPUR WHEEL, (49 teeth) (11/49 ratio)
2шт.
23c
K910395
WHEEL
SPUR WHEEL, (50 teeth) (9/50 ratio)
2шт.
24
K19186
BEARING, ROLLER
TAPERED ROLLER BEARING
2шт.
25
K910396
PLATE
THRUST PLATE
2шт.
26
K611264
SCREW
ADJUSTING SCREW, 3/4 UNF
2шт.
27a
K910401
SHIM,.003" Thk
1шт.
27b
K910400
WASHER
SHIM, 0.005 in.
1шт.
27c
K910399
SHIM,.015" Thk
1шт.
27d
K910398
SHIM,.030" Thk
1шт.
28
K916499
BAFFLE
PLATE
2шт.
29
K15550
OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk
OIL SEAL, 3-1/4 x 4-1/4 x 5/8 in.
2шт.
30
K944516
HOUSING
oil seal, right-hand, replaces K910402
1шт.
K944517
HOUSING
oil seal, left-hand, replaces K910402
1шт.
31
K623452
SEAL,90mm ID x 110.28mm OD x 11.99mm Thk
OIL SEAL, 90 x 100 x 12 mm
2шт.
Used on model 1210, S/N 723162 and after
1шт.
Used on model 1212, S/N 1001080 and after
1шт.
32
K910404
GASKET
2шт.
33
K600602
BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5
7/16 UNC x 1-1/2 in., Serial Range: housing-case
12шт.
K19483
SPRING WASHER
SPRING WASHER, 7/16 in., Serial Range: housing-case
12шт.
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg
2шт.
34
K901556
COVER
2шт.
35
K923221
GASKET,0.51mm Thk
2шт.
36
413-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
SETSCREW, 3/8 UNC x 1-1/8 in.
18шт.
K19482
SPRING WASHER
SPRING WASHER, 3/8 in.
18шт.
37
See Figure D04 for breather assemblies
1шт.
38
K12362
PLUG
TAPERED PLUG, 1 in. BSP
2шт.
39
K623825
PLUG
FLANGED PLUG, 1/2 BSP
2шт.
K626793
WASHER
SEALING WASHER, 7/8 in.
2шт.
K628085
PLUG,Cap, .458" OD
PLASTIC PLUG, 1/2 in., stabiliser bracket holes
6шт.
40
K608411
STUD
1/2 UNC x 4-3/16 in., case to rear axle
20шт.
K626345
LOCK WASHER
SPRING WASHER, 1/2 in., case to rear axle
20шт.
41
K11482
PIN
DOWEL, 7/16 x 1/4 in., case to rear axle
8шт.
