Запчасти Case IH 990 (D04) - FINAL DRIVES, FINAL DRIVE REDUCTION UNITS, 990, 995 AND 996 TRACTORS, WITH STANDARD REAR AXLE CASE Final Drive Reductions

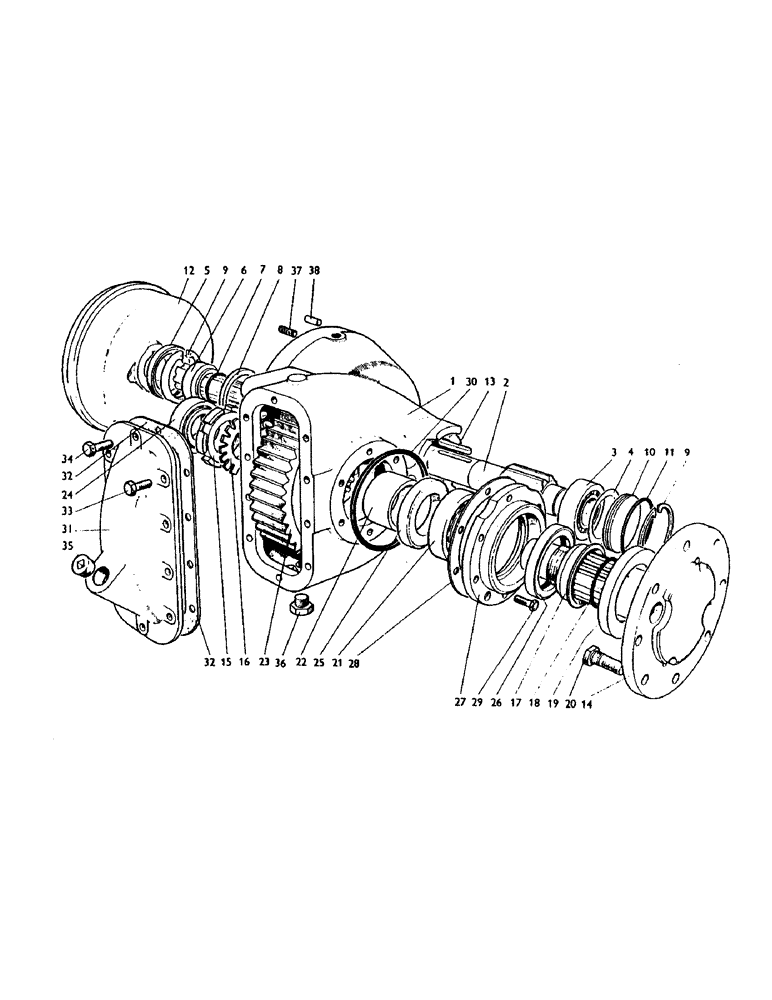

Схема запчастей Case IH 990 - (D04) - FINAL DRIVES, FINAL DRIVE REDUCTION UNITS, 990, 995 AND 996 TRACTORS, WITH STANDARD REAR AXLE CASE Final Drive Reductions
17
1
13
2
14
37
9
33
36
15
20
18
7
23
8
16
21
27
38
5
29
30
11
34
35
19
22
6
9
32
26
10
12
3
24
31
25
4
32
28

Артикул

Название

Примечание

Количество

1a

K942146

GEAR

CASE, right-hand, standard clearance

1шт.

K942145

GEAR

CASE, left-hand, standard clearance

1шт.

1b

K944135

X

CASE, right-hand, high clearance, replaces K914099

1шт.

K944134

GEAR

CASE, left-hand, high clearance, replaces K914098

1шт.

2a

K911925

GEAR-SET

SPUR PINION SHAFT, 11 teeth, (11/49 ratio) (1-3/4 in. brakes) (990)

2шт.

2b

K914449

GEAR

SPUR PINION SHAFT, 10 teeth, (10/49 ratio) (990)

2шт.

2c

K907404

PINION

SPUR PINION SHAFT, 9 teeth, 29 2/8" long, (9/50 ratio) (990)

2шт.

2d

K942429

GEAR-SET

SPUR PINION SHAFT, 11 teeth, (11/49 ratio) (2-1/2 in. brakes) (995, 996)

2шт.

2e

K942128

SHAFT

SPUR PINION SHAFT, 10 teeth, (10/49 ratio) (995, 996)

2шт.

2f

K942428

SHAFT

SPUR PINION SHAFT, 9 teeth, 27 5/8" long, (9/50 ratio) (995, 996)

2шт.

3

K19186

BEARING, ROLLER

TAPERED ROLLER BEARING

4шт.

4a

K907514

SHIM,.003" Thk

1шт.

4b

K907515

SHIM,.010" Thk

1шт.

5

K623455

SEAL

OIL SEAL, 2-1/2 x 3-1/4 x 3/4 in., replaces K623409

2шт.

6a

K907503

COLLAR

1-3/4 in. x 1.197 wide brakes (990)

2шт.

6b

K910390

COLLAR

2-1/2 in. x .791 wide brakes (995, 996)

2шт.

7

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

'O' RING, 1-3/4 in. internal dia.

2шт.

8

K904256

SPACER

DISTANCE PIECE

2шт.

9

K13042

RING, SNAP

CIRCLIP, 3-1/4 in. internal dia.

4шт.

10

K929045

COVER

END COVER

2шт.

11

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

'O' RING, 3 in. internal dia.

2шт.

12a

K905641

BRAKE

DRUM, 1-3/4 in. wide (990)

2шт.

12b

K917989

BRAKE

DRUM, 2-1/2 in. wide (995, 996)

2шт.

13a

K19615

KEY

11/32 x 1/2 x 2 in., 1-3/4 in. brake drum

2шт.

13b

K622324

KEY

11/32 x 1/2 x 2-1/2 in., 2-1/2 in. brake drum

4шт.

14a

K964869

DRIVE

FINAL DRIVE SHAFT, with ring nut, 3/4 studs, Includes: Ref. 15 - 17

2шт.

Used on model 996, S/N 984311 and after

1шт.

Used on model 990, S/N 860080 and after

1шт.

Used on model 995, S/N 929054 and after

1шт.

14b

K964868

DRIVE

FINAL DRIVE SHAFT, with ring nut, 5/8 studs replaces K962919, Includes: Ref. 15 - 17

2шт.

Used on model 996, up to S/N 984311

1шт.

Used on model 990, up to S/N 860080

1шт.

Used on model 995, up to S/N 929054

1шт.

15

K85359

LOCK NUT

RING NUT, 2-3/4 in., special

2шт.

16

K85355

LOCK WASHER

TABWASHER

2шт.

17

K916497

COLLAR,69.93mm ID x 95.25mm OD x 32.89mm L

2шт.

18

K623595

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

'O' RING, 2-7/8 in. internal dia.

2шт.

19

K910397

SEAL

DIRT SHIELD

2шт.

20a

K611463

STUD

BOLT, 3/4 UNF x 2-1/2 in., special, wheel fixing

16шт.

Used on model 996, S/N 984311 and after

1шт.

Used on model 990, S/N 860080 and after

1шт.

Used on model 995, S/N 929054 and after

1шт.

K617176

NUT

3/4 UNF, standard wheel fixing

16шт.

Used on model 996, S/N 984311 and after

1шт.

Used on model 990, S/N 860080 and after

1шт.

Used on model 995, S/N 929054 and after

1шт.

20b

K611266

BOLT

5/8 UNF x 2-1/8 in., special, wheel fixing

16шт.

Used on model 996, up to S/N 984311

1шт.

Used on model 990, up to S/N 860080

1шт.

Used on model 995, up to S/N 929054

1шт.

K617171

WHEEL NUT

5/8 UNF, standard wheel fixing

16шт.

Used on model 996, up to S/N 984311

1шт.

Used on model 990, up to S/N 860080

1шт.

Used on model 995, up to S/N 929054

1шт.

K617210

NUT

ADAPTOR NUT, 3/4 in. wheel centres to 5/8 UNF studs

16шт.

Used on model 996, up to S/N 984311

1шт.

Used on model 990, up to S/N 860080

1шт.

Used on model 995, up to S/N 929054

1шт.

K617170

NUT

5/8 UNF, P.A.V.T. wheel fixing

16шт.

Used on model 996, up to S/N 984311

1шт.

Used on model 990, up to S/N 860080

1шт.

Used on model 995, up to S/N 929054

1шт.

K617176

NUT

3/4 UNF, standard wheel fixing

16шт.

Used on model 996, S/N 984311 and after

1шт.

Used on model 990, S/N 860080 and after

1шт.

Used on model 995, S/N 929054 and after

1шт.

21

K19185

TAPERED BEARING

TAPERED ROLLER BEARING

2шт.

22

K927061

SLEEVE

final drive shaft

2шт.

23a

K919524

WHEEL

SPUR WHEEL, 49 teeth, (11/49 ratio)

2шт.

23b

K914450

PINION

SPUR WHEEL, 49 teeth, (10/49 ratio)

2шт.

23c

K908923

WHEEL

SPUR WHEEL, 50 teeth, (9/50 ratio)

2шт.

24

K19186

BEARING, ROLLER

TAPERED ROLLER BEARING

2шт.

25

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

OIL SEAL, 90 x 110 x 12mm

2шт.

26

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

OIL SEAL, 3-1/4 x 4-1/4 x 5 in., outer

2шт.

27

K944517

HOUSING

oil seal, left-hand, replaces K916498

1шт.

K944516

HOUSING

oil seal, right-hand, replaces K916498

1шт.

28a

K902772

SHIM,.003" Thk

1шт.

28b

K902773

SHIM,.006" Thk

1шт.

28c

K902774

SHIM,.009" Thk

1шт.

28d

K902775

GASKET

SHIM, 0.015 in.

1шт.

28e

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

0.030 in.

1шт.

29

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 UNC x 1-1/2 in., Serial Range: housing-case

12шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in., Serial Range: housing-case

12шт.

30

K623537

O-RING,6.475" ID x 7.025" OD x 0.275"

'O' RING, 6-1/2 in. internal dia., housing to case

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

31

K901556

COVER

2шт.

32

K923221

GASKET,0.51mm Thk

2шт.

33

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1-1/8 in.

18шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

18шт.

34

K600502

BOLT

See Figure D04 for breather assemblies

2шт.

35

K12362

PLUG

TAPERED PLUG, 1 in. BSP

2шт.

36

K623825

PLUG

FLANGED PLUG, 1/2 BSP

2шт.

K626793

WASHER

SEALING WASHER, 7/8 in.

2шт.

K628085

PLUG,Cap, .458" OD

PLASTIC PLUG, 1/2 in., stabiliser bracket holes

6шт.

37

K608406

STUD

1/2 UNC x 2-7/8 in., reduction case to rear axle

8шт.

K600803

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

1/2 UNC x 1-5/8 in., reduction case to rear axle

20шт.

280431

NUT,1/2"-13, G5

Reduction case to rear axle 1/2"-13, G5

8шт.

K626345

LOCK WASHER

SPRING WASHER, 1/2 in., reduction case to rear axle

20шт.

38

K11482

PIN

DOWEL, 7/16 x 1-1/4 in., reduction case to rear axle

4шт.

Выбрано товаров: 99
