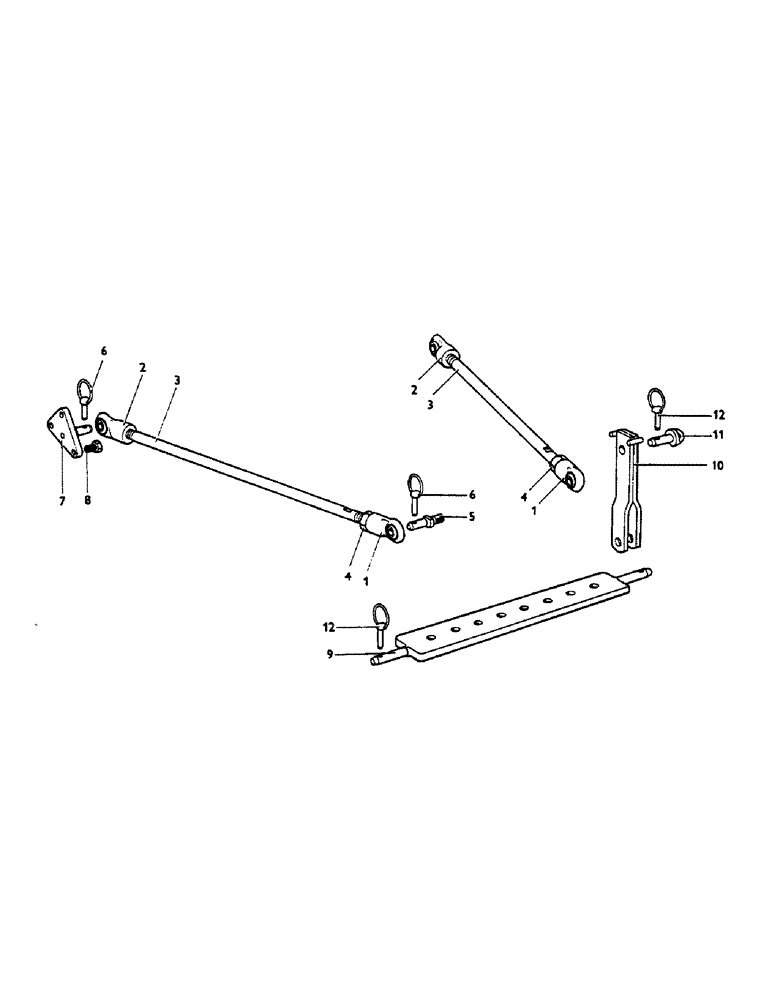

Запчасти Case IH 990 (K14) - DRAWBARS AND HITCHES, LINKAGE STABILIZERS AND DRAWBARS, 990, 995, 996, 1210, 1212 TRACTORS Drawbars & Hitches

K911492

KIT

LINKAGE STABILISER (U744) - 990, 995 and 996 Tractors

1шт.

K918178

LINKAGE

STABILISER (U947) - 1210 and 1212 Tractors (Optional Equipment)

1шт.

K912766

STABILIZER

STABILISER BAR ASSEMBLY

2шт.

1

K901821

BALL

HOUSING, rear

1шт.

2

K901818

PIVOT

BALL HOUSING, front

1шт.

3

K901815

SCREW,21-1/4mm

ED BAR

1шт.

4

K11569

NUT

LOCKNUT, 1 in BSF

1шт.

5

K907008

PIN

lower link

2шт.

280954

NUT,3/4"-10, G5

3/4 UNC

2шт.

K19486

WASHER, LOCK

SPRING WASHER, 3/4 in

2шт.

6

K920359

PIN

LINCH PIN AND RING

4шт.

7a

K922664

PLATE

BRACKET, standard clearance tractor, replaces K919668 (1210, 1212)

2шт.

7b

K948528

PLATE

BRACKET, left-hand, high clearance tractor, replaces K940454 (1210, 1212)

1шт.

K948529

PLATE

BRACKET, right-hand, high clearance tractor, replaces K940455 (1210, 1212)

1шт.

8a

K603305

BOLT

SETSCREW, 5/8 UNC x 1-3/8 in, brackets to reductions. (1210, 1212)

6шт.

K19485

WASHER

SPRING WASHER, 5/8 in, brackets to reductions (1210, 1212)

6шт.

7c

K922622

BRACKET

standard clearance tractor, replaces K915133 (990, 995, 996)

2шт.

7d

K922660

PLATE

BRACKET, left-hand, high clearance tractor, replaces K915142 (990, 995, 996)

1шт.

K922658

PLATE

BRACKET, right-hand, high clearance tractor, replaces K915143 (990, 995, 996)

1шт.

8b

K603107

BOLT,1/2" x 1 3/8"

SETSCREW, 1/2 UNC x 1-3/8 in, brackets to reductions. (990, 995, 996)

6шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, brackets to reductions. (990, 995, 996)

6шт.

K911727

NO LONGER SERVICED

LINKAGE DRAWBAR (U765) - 990, 995, and 996 Tractors (Optional Equipment)

1шт.

9

K902280

LINKAGE

DRAWBAR

1шт.

10

K916441

ROD

LIFT ROD EXTENSION

2шт.

11

K946108

HEADED PIN

LINK PIN, 3/4 x 2-1/4 in

2шт.

12

K915678

PIN

LINCH PIN AND RING

4шт.
