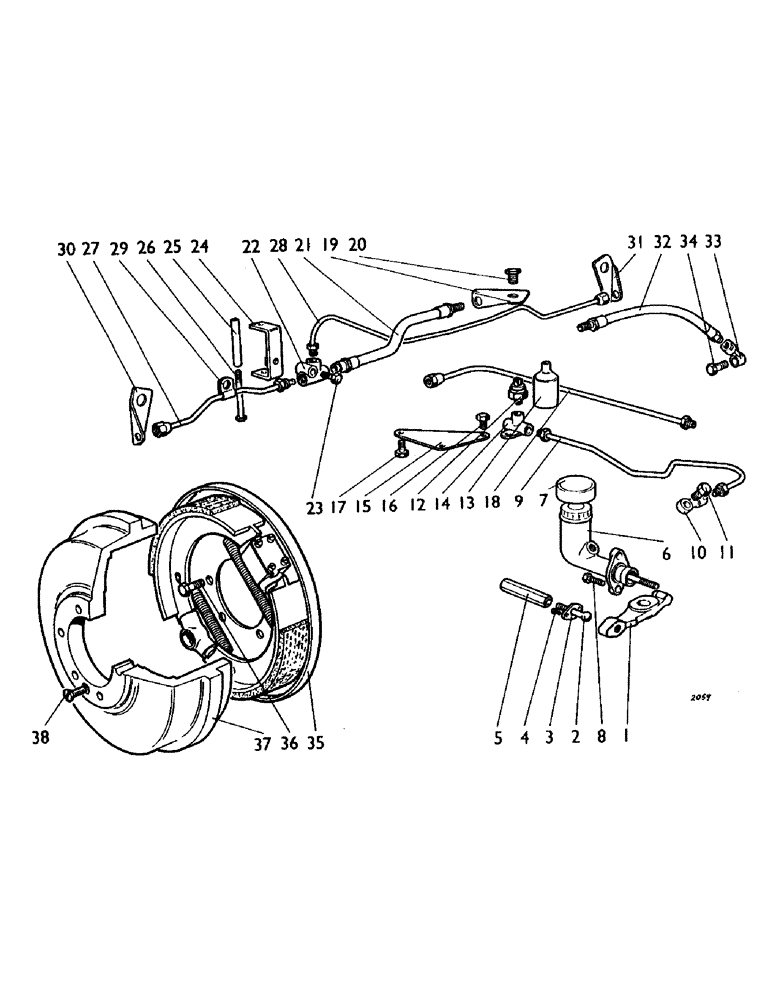

Запчасти Case IH 990 (G16) - BRAKES, FRONT WHEEL BRAKES - HEAVY DUTY FRONT AXLE, 990 AND 995 TRACTORS, OPTIONAL EQUIPMENT (5.1) - BRAKES

1

K972488

BEAM

COMPENSATOR BEAM

1шт.

2

K971935

ROD

PUSH ROD

1шт.

3

K971936

SHIM

Retaining plate

1шт.

4

K613982

SCREW

SETSCREW, No. 10 UNF x 3/8 in

2шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in

2шт.

5

K971937

SLEEVE

ADJUSTING SLEEVE

1шт.

K617051

NUT

LOCKNUT, 5/16 UNF

2шт.

6

K972552

COVER

MASTER CYLINDER, (Girling 6467818)

1шт.

7

K972640

CAP

RUBBER CAP

1шт.

8

K602806

BOLT

SETSCREW, 5/16 UNC x 1-1/8 in, cylinder to frame platform

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, cylinder to frame platform

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, cylinder to frame platform

2шт.

9

K972376

PIPE

master cylinder to stop lamp switch

1шт.

10

K620345

CONNECTOR, ELEC

BANJO, 3/8 UNF

1шт.

11

K620344

BANJO BOLT

BANJO BOLT, 3/8 UNF

1шт.

K14674

WASHER

COPPER WASHER, 7/16 in

1шт.

K626447

WASHER

COPPER WASHER, 3/8 in

1шт.

12

K920206

LIGHT SWITCH

SWITCH, stop lamp (Lucas 54337405)

1шт.

13

K972887

COVER

switch

1шт.

14

K972200

3 WAY CONNECTION

THREE-WAY CONNECTOR

1шт.

15

K910773

SUPPORT

PLATE

1шт.

16

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

1шт.

17

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in

2шт.

K19471

WASHER

5/16 in

4шт.

18

K972378

PIPE

switch to flexible pipe

1шт.

19

K910775

BRACKET

SUPPORT BRACKET, pipe

1шт.

20

K972700

SCREW

SETSCREW, 5/8 UNC, special

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

LOCKNUT, 5/8 UNC

1шт.

K19485

WASHER

SPRING WASHER, 5/8 in

1шт.

21

K972385

HOSE

FLEXIBLE PIPE, 14-1/8 in

1шт.

K617052

NUT

LOCKNUT, 3/8 UNF

1шт.

K626479

WASHER

SHAKEPROOF WASHER, 3/8 in

1шт.

K626447

WASHER

COPPER WASHER, 3/8 in

1шт.

22

K972194

FITTING

TEE-PIECE

1шт.

23

K600004

BOLT

1/4 UNC x 1-1/4 in

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.

24

K972533

CONNECTOR, ELEC

SUPPORT BRACKET, tee-piece

1шт.

25

K910777

BUSHING

SPACER TUBE

1шт.

26

K600021

BOLT

1/4 UNC x 3-3/4 in

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.

K607000

NUT

1/4 UNC

1шт.

27

K972381

PIPE

left-hand

1шт.

28

K972383

PIPE

right-hand

1шт.

29

K621628

PIPE

CLIP, Serial Range: pipes-axle

2шт.

30

K910775

BRACKET

SUPPORT BRACKET, left-hand

1шт.

31

K910776

BRACKET

SUPPORT BRACKET, right-hand

1шт.

32

K972385

HOSE

FLEXIBLE PIPE, 14-1/8 in

2шт.

K617052

NUT

LOCKNUT, 3/8 UNF

2шт.

K626479

WASHER

SHAKEPROOF WASHER, 3/8 in

2шт.

33

K620343

CONNECTOR, ELEC

BANJO, 3/8 UNF

2шт.

34

K620344

BANJO BOLT

BANJO BOLT, 3/8 UNF

2шт.

K626447

WASHER

COPPER WASHER, 3/8 in

2шт.

K14674

WASHER

COPPER WASHER, 7/16 in

2шт.

35

K972449

BRAKE ASSEMBLY, left-hand, (Girling 64021375)

1шт.

K972450

BRAKE ASSEMBLY, right-hand, (Girling 64021377)

1шт.

36

K600873

BOLT

1/2 UNC x 1-1/4 in, brakes to stub axle

10шт.

K607304

NUT

NYLOC NUT, 1/2 UNC, brakes to stub axle

10шт.

37

K972448

BRAKE

DRUM, 12 in dia.

2шт.

38

K604210

SCREW

1/2 UNC x 1-3/8 in, Serial Range: drum-hub

4шт.

The Frt Wheel Brakes referred to in the heading of page G17 is Not Applicable. 10/17/95

1шт.
