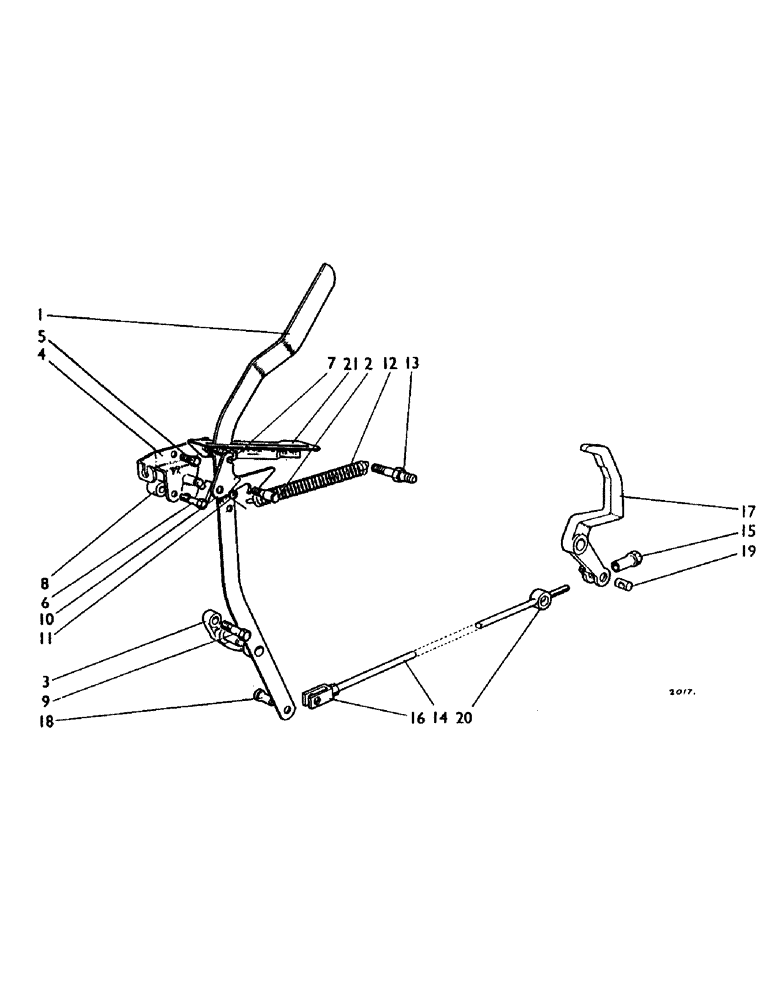

Запчасти Case IH 990 (B12) - CLUTCH, CLUTCH RESETTING LEVER, 990 & 995 TRACTORS (03.1) - CLUTCH

1

K912848

LEVER

RESETTING LEVER

1шт.

2

K913299

PIN

LOCKING PIN

1шт.

K607081

LOCK NUT

NUT, 5/16 UNC

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

1шт.

3

K914090

BRACKET

resetting lever

1шт.

K19476

WASHER

3/4 in.

1шт.

K19532

PIN

SPLIT PIN, 1/8 x 1 in.

1шт.

4

K912849

BRACKET

SUPPORT BRACKET, resetting lever

1шт.

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in.

1шт.

5

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in.

1шт.

6

K600205

BOLT

5/16 UNC x 1-1/2 in.

1шт.

7

K600204

BOLT

5/16 UNC x 1-3/8 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

4шт.

8

K912852

BUSHING

DISTANCE PIECE

1шт.

9

K600806

BOLT

1/2 UNC x 2 in.

2шт.

10

K912853

LATCH

TRIGGER

1шт.

K19472

WASHER

3/8 in.

1шт.

K621587

RING, SNAP

'E' CLIP, 3/8 in. external

1шт.

11

K31411

SPRING

TORSION SPRING, trigger

1шт.

12

K41370

SPRING

RELEASE SPRING, clutch

1шт.

13

K912854

SPRING

ANCHOR

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

2шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT, 3/8 UNC

2шт.

14

K909901

ROD

resetting lever to clutch lever

1шт.

K19403

NUT

3/8 BSF

2шт.

15

K14745

NUT

ADJUSTING NUT, 3/8 BSF

1шт.

16

K14233

FORK END, 3/8 BSF

1шт.

17a

K89363

LEVER

clutch cross shaft (double clutch)

1шт.

17b

K900716

LEVER

clutch cross shaft (single clutch)

1шт.

18

K14227

PIN

3/8 x 1-1/16 in.

1шт.

K19527

PIN

SPLIT PIN, 3/32 x 1/2 in.

1шт.

19

K14744

PIN

3/4 x 1-1/2 in.

1шт.

20

K14715

BUSHING

DISTANCE PIECE

1шт.

21

K913860

GUIDE BRACKET

1шт.

K912855

STOP

resetting lever

1шт.
