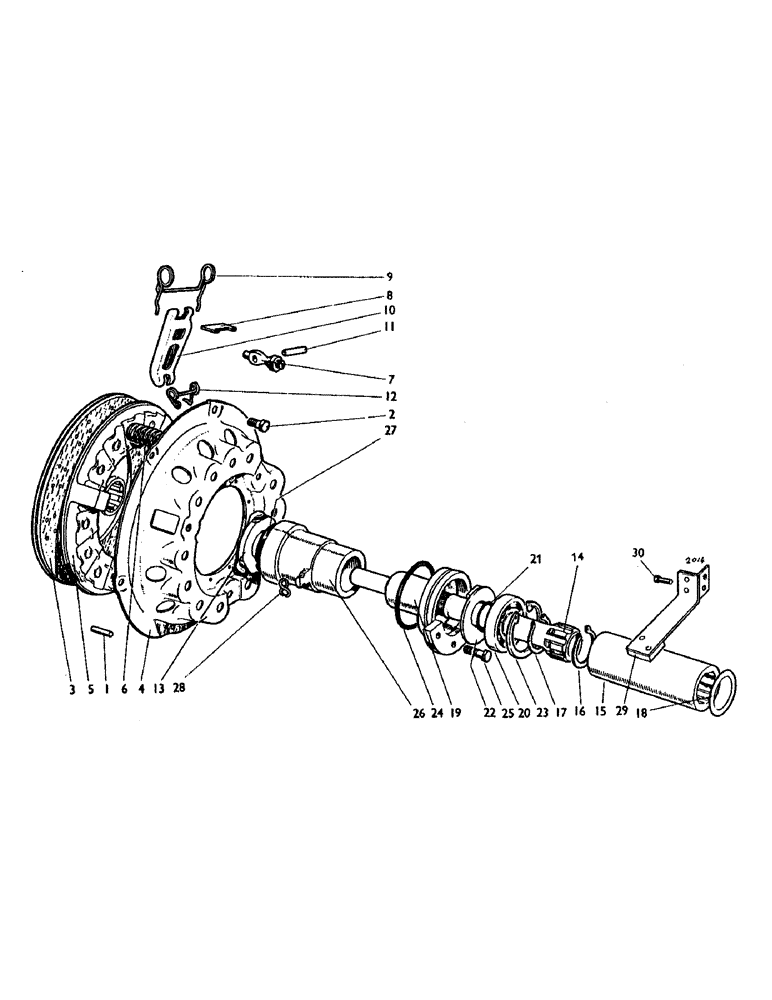

Запчасти Case IH 990 (B06) - CLUTCH, SINGLE CLUTCH, 990 AND 995 NON-LIVEDRIVE TRACTORS (03.1) - CLUTCH

1

K621838

PIN

DOWEL, 5/16 x 7/16 x 1-1/8 in., Serial Range: clutch-flywheel

2шт.

2

K602903

SCREW

BOLT, 3/8 UNC x 7/8 in., Serial Range: clutch-flywheel

8шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., Serial Range: clutch-flywheel

8шт.

3a

K915694

NO LONGER SERVICED

DRIVEN PLATE, 11 in., with F30C facings (990)

1шт.

K961832

FACING

S, 11 in. F30C (2) and rivets (40)

1шт.

3b

K942509

PLATE

DRIVEN PLATE, 11 in., with Thermoid facings (995)

1шт.

K962961

CLUTCH

FACINGS, 11 in. Thermoid (2) and rivets (40)

1шт.

K964967

CLUTCH FACING

FACINGS, 11 in. Ferodo 2124(2) and rivets (40) (995, Serial Range: alternative-Thermoid)

1шт.

K86188

CLUTCH ASSEMBLY

COVER ASSEMBLY, Includes: Ref. 4 - 13

1шт.

4

K86189

COVER, clutch

1шт.

5

K86190

PRESSURE PLATE

1шт.

6

K961049

CLUTCH

THRUST SPRING, yellow/light green

12шт.

7

K86195

NUT

EYEBOLT AND NUT

4шт.

8

K14003

STOP

STRUT, release lever

4шт.

9

K86196

VALVE SPRING

SPRING, anti-rattle

4шт.

10

K68729

LEVER

clutch release

4шт.

11

K14005

AXLE PIN

PIN, 1/4 x 7/8 in., release lever

4шт.

12

K14079

SPRING

RETAINING SPRING

4шт.

13

K86197

CLUTCH

PLATE, release lever

1шт.

14

K929636

CLUTCH

DRIVESHAFT

1шт.

15

K929645

COUPLING, BREAK AWAY

MUFF COUPLING

1шт.

16

K12922

RING, SNAP

CIRCLIP, 1-3/4 in. external

1шт.

17

K14337

CIRCLIP

1-3/8 in. external

1шт.

18

K902106

SHIM,.032" Thk

1шт.

19

K929642

SUPPORT

SNOUT

1шт.

20

K19021

BALL

BEARING

1шт.

21

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

'O' RING, 1-3/16 in. internal dia.

1шт.

22

K34610

SHIM

SHIELD, clutch shaft bearing

1шт.

23

K13053

RING, SNAP

CIRCLIP, 72mm internal

1шт.

24

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

'O' RING, 3 in. internal dia.

1шт.

25

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in., support snout to main frame

3шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., support snout to main frame

3шт.

K24866

KEY

3/16 x 5/32 x 1-1/4 in.

1шт.

26

K900583

BEARING

THRUST BEARING

1шт.

27

K14083

RING

CARBON BLOCK

1шт.

28

K89336

SPRING

clutch fork

2шт.

29

K929646

CLUTCH

STOP

1шт.

30

K602702

SCREW

SETSCREW, 1/4 UNC x 5/8 in.

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

2шт.
