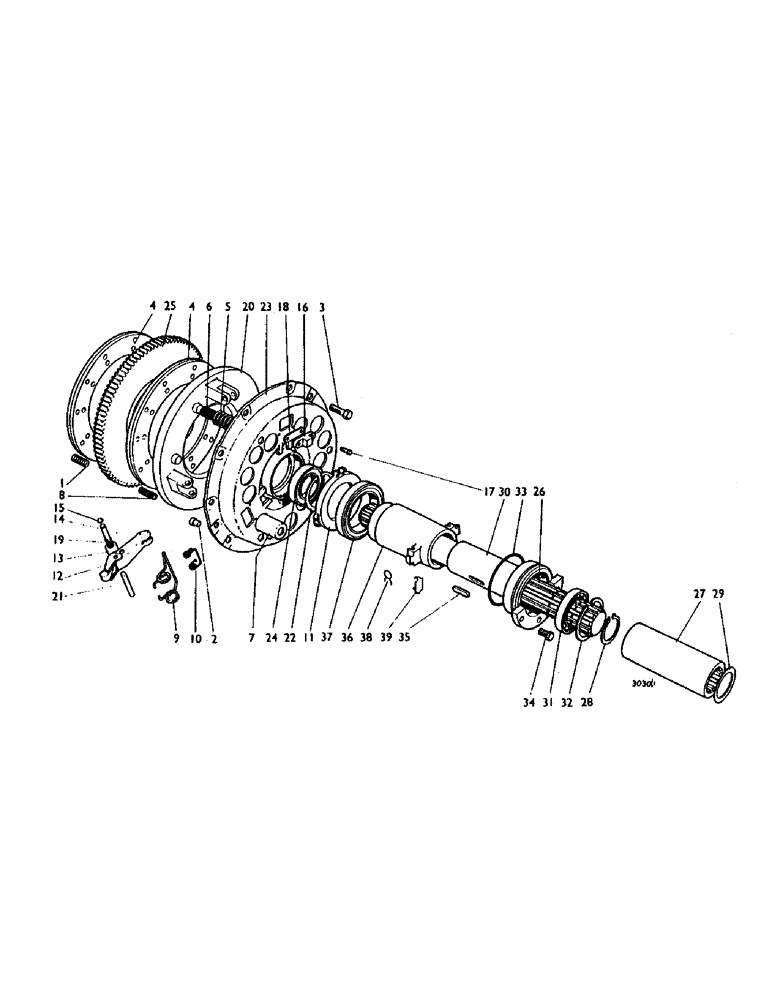

Запчасти Case IH 990 (B04) - CLUTCH, TWIN PLATE CLUTCH, 990 AND 995 NON-LIVEDRIVE TRACTORS, OPTIONAL EQUIPMENT (03.1) - CLUTCH

1

K13226

SPRING

flywheel

3шт.

2

K621838

PIN

DOWEL

2шт.

3

K602903

SCREW

BOLT, 3/8 UNC x 7/8 in.

9шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

9шт.

4

K928288

CLUTCH DISC

DRIVEN PLATE, 10 in. (with Thermoid facings)

2шт.

K962556

CLUTCH

FACINGS, 10 in. Thermoid (2) and rivets (26)

1шт.

K962927

CLUTCH

COVER ASSEMBLY, Includes: Ref. 5 - 24 and split pin and washer

1шт.

5

K928922

SPRING

THRUST SPRING, (red), outer

6шт.

6

K902513

SPRING

THRUST SPRING, (brown), inner

6шт.

7

K900256

SPRING

CUP

6шт.

8

K625232

SPRING

pressure plate

3шт.

K14337

CIRCLIP

1-3/8 in. external

1шт.

9

K961128

SPRING

anti-rattle

3шт.

10

K900267

RETAINER

release lever plate

3шт.

11

K900268

PLATE

RELEASE LEVER PLATE

1шт.

12

K900275

LEVER

RELEASE LEVER

3шт.

K900278

PIN

SPLIT PIN, release lever

3шт.

13

K900264

ROLLER

release lever

3шт.

14

K900265

PIN

roller

3шт.

15

K900274

RING, SNAP

CIRCLIP, pin

6шт.

16

K900257

PAD

ADJUSTING PAD, release lever

3шт.

17

K616501

SCREW

SETSCREW, 1/4 UNF x 5/8 in.

6шт.

K900279

WASHER

SHAKEPROOF WASHER, 1/4 in.

6шт.

18

K900258

SHIM,.002" Thk

1шт.

K901723

SHIM,.003" Thk

1шт.

K904138

SHIM,.010" Thk

1шт.

K904139

SHIM,.020" Thk

1шт.

19

K900273

NEEDLE

ROLLER, release lever

57шт.

20

K962573

PLATE

PRESSURE PLATE

1шт.

21

K900266

PIN

release lever pivot

3шт.

K900271

SPARE PART

SPLIT PIN, pressure plate pin

6шт.

K900280

WASHER

release lever

6шт.

22

K89326

RING, SNAP

CIRCLIP, 3-1/8 in. internal dia.

1шт.

23

K962574

COVER

OUTER COVER

1шт.

24

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

1шт.

K900271

SPARE PART

SPLIT PIN, pressure plate pin

6шт.

K900280

WASHER

release lever

6шт.

25

K906446

PLATE, THRUST

SEPARATOR PLATE

1шт.

26

K920665

SHAFT

CLUTCH DRIVESHAFT (6-speed)

1шт.

27

K929645

COUPLING, BREAK AWAY

MUFF COUPLING

1шт.

28

K12922

RING, SNAP

CIRCLIP, 1-3/4 in. external

2шт.

29

K902106

SHIM,.032" Thk

1шт.

30

K89334

SUPPORT

SNOUT, thrust bearing carrier

1шт.

31

K620190

BALL BEARING

1шт.

32

K621430

CIRCLIP

75mm internal

1шт.

33

K24865

O-RING

'O' RING, 3-3/8 in. internal dia.

1шт.

34

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in., support snout to rear frame

3шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., support snout to rear frame

3шт.

35

K24866

KEY

3/16 x 5/32 x 1-1/4 in.

1шт.

36

K89335

THRUST BEARING

CARRIER

1шт.

37

K620112

ROLLER

THRUST BEARING

1шт.

38

K89336

SPRING

clutch fork

2шт.

39

K900359

SPRING

CLIP, bearing carrier

2шт.

K929646

CLUTCH

STOP

1шт.

K602702

SCREW

1/4 UNC x 5/8 in.

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in.

2шт.
