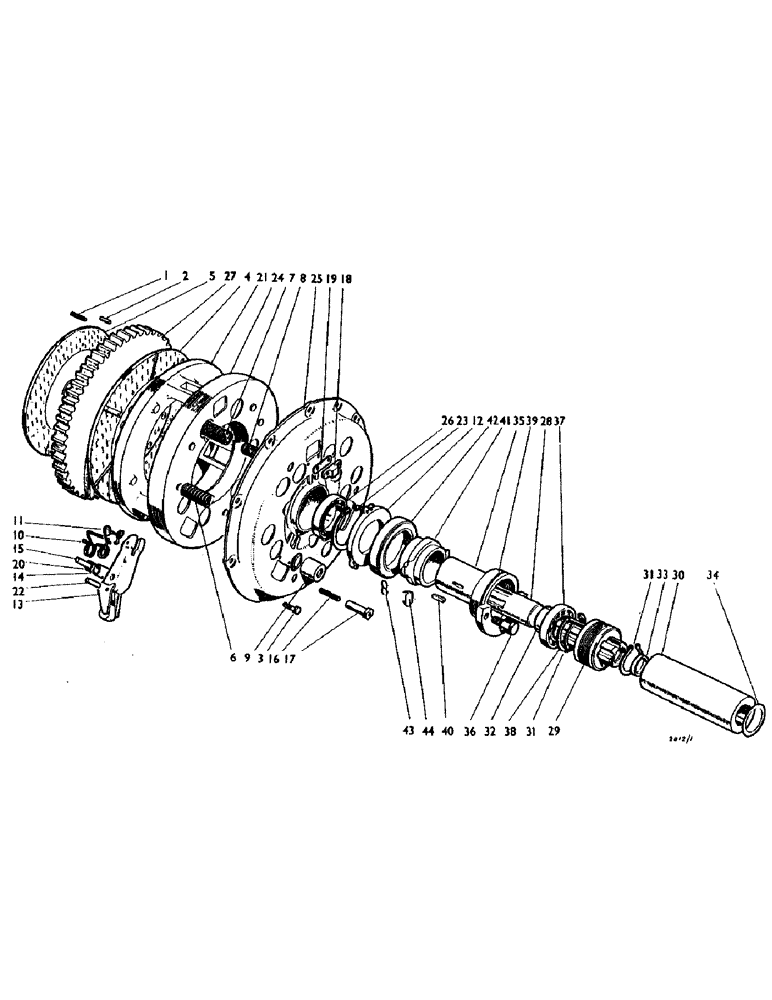

Запчасти Case IH 990 (B02) - CLUTCH, DOUBLE CLUTCH, 990 AND 995 LIVEDRIVE TRACTORS (03.1) - CLUTCH

1

K13226

SPRING

flywheel

3шт.

2

K621838

PIN

DOWEL, 5/16 x 7/16 x 1-1/8 in.

2шт.

3

K602903

SCREW

BOLT, 3/8 UNC x 7/8 in.

9шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

9шт.

4a

K942507

CLUTCH

DRIVEN PLATE, transmission, with 11 in F30C facings (990) (replaces K923375)

1шт.

K961832

FACING

S, 11 in F30C (2) and rivets (40)

1шт.

4b

K957254

CLUTCH & DISC ASSY

DRIVEN PLATE, transmission, with 11 in Thermoid facings (995) (replaces K942507)

1шт.

Old hub was 1.50 long, new hub is 1.160 long.

1шт.

1539024C1R

REMAN-CLUTCH DISC

990, 995 All 1/1/71 - 12/31/76, Reman For New P/N K957254, N.A. Only

1шт.

1539024C1C

CORE-CLUTCH DISC

Return Number, For N.A. Only

1шт.

K962961

CLUTCH

FACINGS, 11 in Thermoid (2) and rivets (40)

1шт.

4c

K964966

PLATE

DRIVEN PLATE, transmission, with 11 in. Ferodo 2124 facings (995, Serial Range: alternative-Thermoid)

1шт.

K964967

CLUTCH FACING

FACINGS, 11 in. Ferodo 2124 (2) and rivets (40) (995, Serial Range: alternative-Thermoid)

1шт.

5

K89322

CLUTCH & DISC ASSY

DRIVEN PLATE, PTO, with 10 in. F30C facings

1шт.

K961828

KIT

FACINGS, 10 in. F30C (2) and rivets (24)

1шт.

K962822

CLUTCH

COVER ASSEMBLY, Includes: Ref. 6 - 26

1шт.

6

K902514

SPRING

THRUST SPRING, PTO, pink

6шт.

7

K928922

SPRING

THRUST SPRING, transmission outer, red

6шт.

8

K902513

SPRING

THRUST SPRING, transmission inner, brown

6шт.

9

K900256

SPRING

CUP

12шт.

10

K961128

SPRING

anti-rattle

3шт.

11

K900267

RETAINER

release lever plate

3шт.

12

K900268

PLATE

release levers

1шт.

13

K900275

LEVER

RELEASE LEVER

3шт.

K900278

PIN

SPLIT PIN

3шт.

14

K900264

ROLLER

release lever

3шт.

15

K900265

PIN

roller

3шт.

K900274

RING, SNAP

CIRCLIP, pin

6шт.

16

K918607

SCREW

ADJUSTING SCREW, 5/16 UNF

3шт.

17

K918608

NUT

LOCKNUT, 5/16 UNF, special

3шт.

18

K900257

PAD

ADJUSTING PAD, release lever

3шт.

K900272

SCREW

SETSCREW, 1/4 UNF x 1/2 in.

6шт.

3

K900279

WASHER

SHAKEPROOF WASHER

6шт.

19

K900258

SHIM,.002" Thk

1шт.

K901723

SHIM,.003" Thk

1шт.

K904138

SHIM,.010" Thk

1шт.

K904139

SHIM,.020" Thk

1шт.

20

K900273

NEEDLE

ROLLER, release lever

57шт.

21

K961046

PLATE, THRUST

PRESSURE PLATE

1шт.

22

K900266

PIN

release lever pivot

3шт.

K900271

SPARE PART

SPLIT PIN, pressure plate pin

6шт.

K900280

WASHER

release lever

6шт.

23

K89326

RING, SNAP

CIRCLIP, 3-1/8 in.

1шт.

24

K918606

COVER

INNER COVER

1шт.

25

K917999

COVER

OUTER COVER

1шт.

26

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

1шт.

27

K906446

PLATE, THRUST

SEPARATOR PLATE

1шт.

Center of Hub, Tooth to Tooth 1 1/2"

1шт.

Groove to Groove 1 3/4"

1шт.

28a

K949879

CLUTCH

DRIVESHAFT, 12 speed

1шт.

Ref #28a - K949879 subs to K965192, 19 13/16" O/A length, K957321, 17 13/16" O/A length.

1шт.

Used on model 990, S/N 868055 and after

1шт.

Used on model 995, S/N 935490 and after

1шт.

28b

K948531

SHAFT

CLUTCH DRIVESHAFT, 12-speed (synchro, gearbox)

1шт.

Used on model 990, up to S/N 868055

1шт.

Used on model 995, up to S/N 934590

1шт.

28c

K929635

CLUTCH

DRIVESHAFT, 6-speed

1шт.

28d

K929632

SHAFT

CLUTCH DRIVESHAFT, 12-speed (non-synchromesh gearbox)

1шт.

29a

K917780

CASTING

DRUM, clutch stop, 6-speed (non-synchromesh gearbox)

1шт.

29b

K940324

CLUTCH

DRUM, clutch stop, 12-speed (non-synchromesh gearboxes)

1шт.

30

K917434

NO LONGER SERVICED

MUFF COUPLING (6-speed)

1шт.

31

K12922

RING, SNAP

CIRCLIP, 1-3/4 in. external

4шт.

32

K628864

O-RING

'O' RING, 39, 5mm internal dia. replaces K623697

1шт.

33

K89333

WASHER

FELT WASHER

1шт.

34

K902106

SHIM,.032" Thk

1шт.

35a

K951495

SUPPORT

SNOUT, thrust bearing carrier

1шт.

Used on model 990, S/N 868055 and after

1шт.

Used on model 995, S/N 935490 and after

1шт.

35b

K929641

SUPPORT

SNOUT, thrust bearing carrier

1шт.

Used on model 990, up to S/N 868055

1шт.

Used on model 995, up to S/N 934590

1шт.

36

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in., support snout to main frame

3шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., support snout to main frame

3шт.

37

K620190

BALL BEARING

1шт.

38

K621430

CIRCLIP

75mm internal

1шт.

39

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

'O' RING, 3 in. internal dia.

1шт.

40

K24866

KEY

3/16 x 5/32 x 1-1/4 in.

1шт.

41a

K951494

CARRIER

THRUST BEARING CARRIER

1шт.

Used on model 990, S/N 868055 and after

1шт.

Used on model 995, S/N 935490 and after

1шт.

41b

K89335

THRUST BEARING

CARRIER

1шт.

Used on model 990, up to S/N 868055

1шт.

Used on model 995, up to S/N 934590

1шт.

42

K620112

ROLLER

THRUST BEARING

1шт.

43

K89336

SPRING

clutch fork

2шт.

44

K900359

SPRING

CLIP, bearing carrier

2шт.

For Clutch Drive Shaft Oil Seals, see SBA24-82. 10/12/95

1шт.
