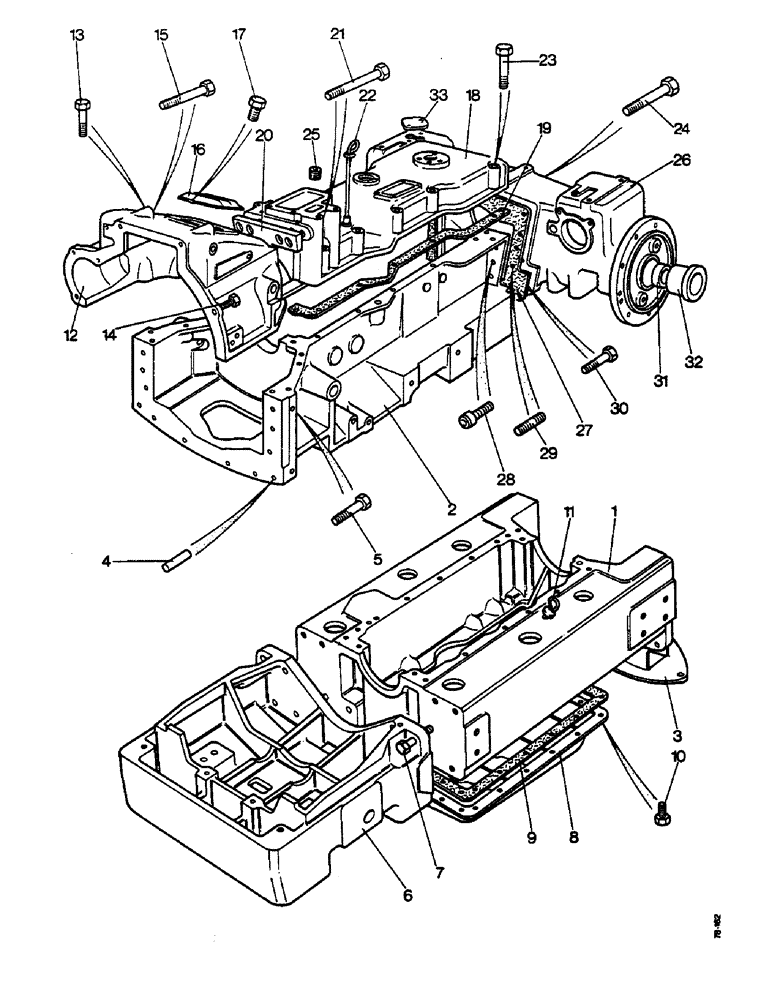

Запчасти Case IH 990 (L06) - CHASSIS, MAIN FRAME AND REAR AXLE, 990, 995 AND 996 TRACTORS (12) - CHASSIS

1a

K947517

FRAME

MAIN FRAME, front (996)

1шт.

1a

K947517

FRAME

MAIN FRAME, front (990, 995)

1шт.

Used on model 990, S/N 868055 and after

1шт.

Used on model 995, S/N 935940 and after

1шт.

1b

K925103

FRAME

MAIN FRAME, front (990, 995)

1шт.

Used on model 990, S/N 868055 and after

1шт.

Used on model 995, S/N 935940 and after

1шт.

2a

K943733

FRAME

MAIN FRAME, rear (996)

1шт.

2a

K943733

FRAME

MAIN FRAME, rear (990, 995)

1шт.

Used on model 990, S/N 868055 and after

1шт.

Used on model 995, S/N 935940 and after

1шт.

2b

K929249

FRAME

MAIN FRAME, rear (990, 995)

1шт.

Used on model 990, up to S/N 868055

1шт.

Used on model 995, up to S/N 934590

1шт.

K628084

PLUG

PLASTIC PLUG, 5/8 in

18шт.

3

K947404

COVER

CLUTCH PIT COVER

1шт.

K19470

WASHER

1/4 in

2шт.

K602733

SCREW

SETSCREW, 1/4 UNC x 5/8 in

2шт.

K943067

FRAME

SPACER, main frame, main frame front to rear (996)

1шт.

4

K621826

PIN

DOWEL, 5/8 x 1-1/8 in, main frame front to rear (996)

4шт.

5a

K600622

BOLT

7/16 UNC x 5 in, main frame front to rear (996)

4шт.

K608336

STUD

7/16 UNC x 6-1/4 in, main frame front to rear (996)

6шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, main frame front to rear (996)

10шт.

280717

NUT,7/16"-14, G5

Main frame front to rear (996) 7/16"-14, G5

10шт.

4

K621826

PIN

DOWEL, 5/8 x 1-1/8 in, main frame front to rear (990, 995)

2шт.

5b

K600604

SCREW

BOLT, 7/16 UNC x 1-3/4 in, main frame front to rear (990, 995)

4шт.

K608338

STUD

7/16 UNC x 3-1/8 in, replaces K600612, main frame front to rear (990, 995)

6шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, main frame front to rear (990, 995)

10шт.

280717

NUT,7/16"-14, G5

Main frame front to rear (990, 995) 7/16"-14, G5

4шт.

K623789

PLUG

CORE PLUG, 1 in, clutch stop apertures

4шт.

K623790

CORE

PLUG, 1-1/8 in dia., Serial Range: alternative-K623789

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Clutch cross shaft 1/4"-28 NPT x .54" lg

2шт.

6

K964910

FRAME

FRONT EXTENSION, replaces K913687

1шт.

Used on model 990, S/N 866452 and after

1шт.

Used on model 995, S/N 934477 and after

1шт.

Used on model 996, S/N 987778 and after

1шт.

K628083

PLUG,Cap, 1.282" OD

PLASTIC PLUG, 1-1/4 in dia.

2шт.

7

K600604

SCREW

BOLT, 7/16 UNC x 1-3/4 in, Serial Range: extension-frame

10шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, Serial Range: extension-frame

10шт.

K15597

BUSHING

BUSH, trunnion pin

4шт.

K690973

FITTING

GREASE NIPPLE, 1/4 ANF x 45 deg., trunnion bearings

2шт.

8

K904077

COVER

SUMP COVER

1шт.

9

K918684

GASKET,2.38mm Thk

sump cover

1шт.

10

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in

18шт.

K19481

SPRING WASHER

WASHER, 5/16 in

18шт.

K623826

PLUG

DRAIN PLUG, 3/4 BSP

1шт.

K626315

WASHER

SEALING WASHER

1шт.

K623825

PLUG

DRAIN PLUG, 1/2 BSP (Alternative)

1шт.

K626793

WASHER

SEALING WASHER, 7/8 in (Alternative)

1шт.

11

K964772

DIPSTICK

engine sump, replaces K924334

1шт.

K14658

O-RING,0.07" Thk x 0.239" ID

'O' RING, dipstick

1шт.

K948224

SLEEVE

dipstick, replaces K83884

1шт.

12a

K943306

CLUTCH

HOUSING (996)

1шт.

13a

K602912

SET SCREW

SETSCREW, 3/8 UNC x 2 in, housing to frame (996)

6шт.

12b

K945272

CLUTCH

HOUSING (990, 995)

1шт.

13b

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1-1/8 in, housing to frame (990, 995)

4шт.

14

K600410

BOLT

3/8 UNC x 2-1/4 in, housing to support plate

1шт.

15

K600425

BOLT

3/8 UNC x 5-1/4 in, housing to support plate

2шт.

280136

NUT,3/8"-16, G8

Housing to support plate 3/8"-16, G8

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, housing to support plate

7шт.

K628087

PLUG

PLASTIC PLUG, 3/8 in, timing apertures

2шт.

16

K904246

COVER

clutch housing

1шт.

17

K602701

BOLT

SETSCREW, 1/4 UNC x 1/2 in

2шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

2шт.

18a

K945211

COVER

GEARBOX COVER (TB55 Transmission)

1шт.

18b

K940127

GEARBOX COVER (TB55 Transmission)

1шт.

19

K929602

GASKET

gearbox cover

2шт.

Ref #19, per print, does not have 'hump' in middle of gasket. If need gasket as pictured, order K906678. jms 12/21/99

1шт.

20

K904079

WEDGE

clutch housing

1шт.

K904080

SHIM,.040" Thk

Wedge .040" Thk

1шт.

K600616

BOLT

7/16 UNC x 3-1/2 in, gearbox cover to clutch housing

2шт.

21a

K600663

BOLT

7/16 UNC x 6-1/4 in, gearbox cover to clutch housing

1шт.

Used on model 996, S/N 985304 and after

1шт.

Used on model 990, S/N 802711 and after

1шт.

Used on model 995, S/N 930610 and after

1шт.

21b

K600612

BOLT

7/16 UNC x 2-3/4 in, gearbox cover to clutch housing

1шт.

Used on model 996, up to S/N 985304

1шт.

Used on model 990, up to S/N 802711

1шт.

Used on model 995, up to S/N 930610

1шт.

K600610

BOLT

7/16 UNC x 2-1/2 in, gearbox cover to clutch housing

1шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, gearbox cover to clutch housing

4шт.

22

K947615

DIPSTICK

gearbox

1шт.

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

'O' RING, 7/16 in internal dia., dipstick sleeve

1шт.

K942348

SLEEVE

dipstick

1шт.

23

K600615

BOLT

7/16 UNC x 3-1/4 in, gearbox, Serial Range: cover-frame

9шт.

K600665

BOLT

7/16 UNC x 6-3/4 in, gearbox, Serial Range: cover-frame

1шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, gearbox, Serial Range: cover-frame

10шт.

K600459

BOLT

3/8 UNC x 6-1/2 in, gearbox, Serial Range: cover-frame

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, gearbox, Serial Range: cover-frame

2шт.

24

K600620

BOLT

7/16 UNC x 4-1/2 in, axle case to gearbox cover

4шт.

K600669

BOLT

7/16 UNC x 7-3/4 in, axle case to gearbox cover

1шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, axle case to gearbox cover

5шт.

25

K12362

PLUG

TAPER PLUG, 1 in BSP

1шт.

26a

K924784

HOUSING

REAR AXLE CASE, standard

1шт.

26b

K928902

SHAFT

REAR AXLE CASE, heavy duty

1шт.

K623825

PLUG

DRAIN PLUG, 1/2 BSP

1шт.

K626793

WASHER

SEALING WASHER, 7/8 in

1шт.

K623826

PLUG

DRAIN PLUG, 3/4 BSP (Alternative)

1шт.

K626315

WASHER

SEALING WASHER, 1-1/16 in (Alternative)

1шт.

K619528

PLUG

7/8 UNF, oil return port

1шт.

K30085

GASKET

FIBRE WASHER, 7/8 in, oil return port

1шт.

27

K926121

GASKET,0.25mm Thk

axle case to main frame

1шт.

28

K606656

SCREW

cap head, 7/16 UNC, axle case to main frame

2шт.

29

K608318

STUD

7/16 UNC x 1-11/16 in, axle case to main frame

5шт.

30

K603005

SCREW

SETSCREW, 7/16 UNC x 1-1/4in, axle case to main frame

2шт.

280717

NUT,7/16"-14, G5

Axle case to main frame 7/16"-14, G5

5шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in, axle case to main frame

7шт.

K11523

WASHER

SHAKEPROOF WASHER, 7/16 in, axle case to main frame

2шт.

K621826

PIN

DOWEL, 5/8 x 1-1/8 in, axle case to main frame

2шт.

31

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

OIL SEAL, 1-3/4 x 3-3/16 x 1/2 in

4шт.

32

K62356

HOUSING

OIL SEAL HOUSING

2шт.

33a

K929463

COVER

PLATE, axle case, without dump valve

1шт.

K929464

GASKET

without dump valve

1шт.

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in, replaces K604089, without dump valve

2шт.

33b

K929465

COVER

PLATE, axle case, with dump valve

1шт.

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW, 5/16 UNC x 1-1/8 in, with dump valve

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, with dump valve

2шт.

K929464

GASKET

with dump valve

1шт.
