Запчасти Case IH 950 (27A) - CREEPER GEAR, 850 AND 880, OPTIONAL EXTRA (03.1) - CLUTCH

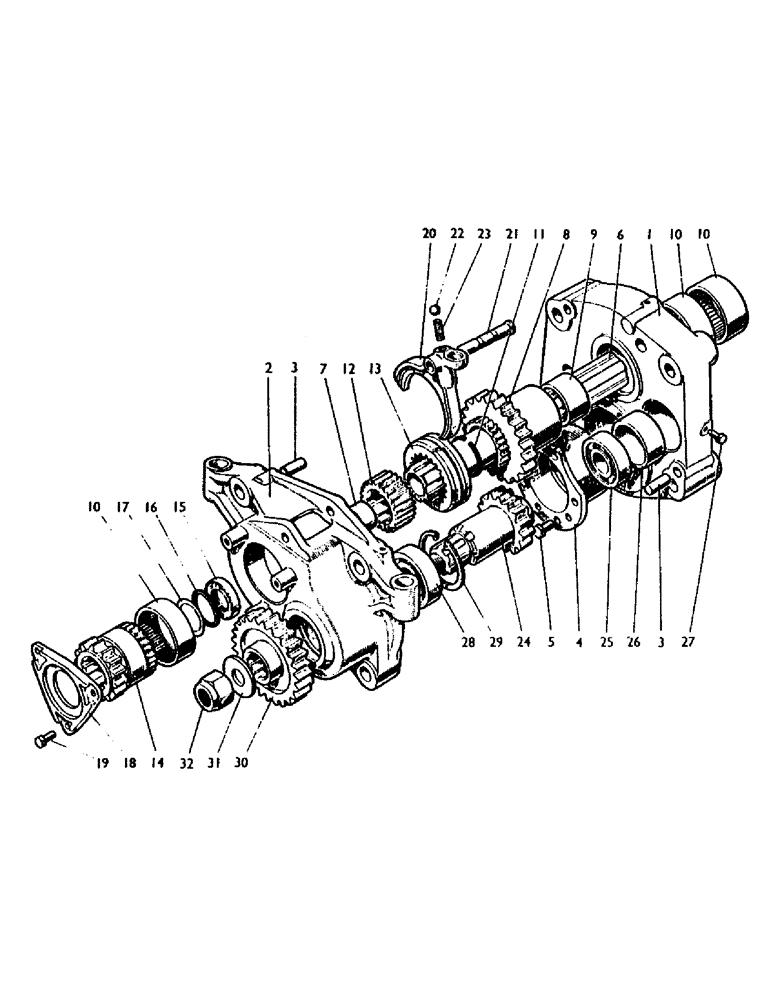

Схема запчастей Case IH 950 - (27A) - CREEPER GEAR, 850 AND 880, OPTIONAL EXTRA (03.1) - CLUTCH
6
8
12
3
26
2
10
9
27
20
4
13
14
32
23
1
25
18
10
29
22
7
3
30
15
17
28
10
21
16
24
5
19
11
31

Артикул

Название

Примечание

Количество

1

K908303

SPARE PART

End Plate--Front

1шт.

2

K908322

NO LONGER SERVICED

Housing--End Plate

1шт.

3

K11985

PIN

Dowel, 1/2 x 1 7/16 in.

2шт.

4

K908380

BEARING

Housing

1шт.

5

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

K19482

SPRING WASHER

Spring Washer

6шт.

6

K908370

DRIVE SHAFT

--Gearbox Livedrive

1шт.

7

K24774

BUSHING

Bearing Bush

1шт.

K908558

Drive Shaft--Gearbox Non-Livedrive

1шт.

8

K908531

GEAR

Driven Gear--Gearbox Drive Shaft

1шт.

K908946

WASHER

Bronze Thrust Washer--Rear

1шт.

9

K620053

BEARING

--Needle Roller

1шт.

10

K620052

BEARING

--Needle Roller

2шт.

11

K13809

RING, SNAP

Circlip

1шт.

12

K908944

CLUTCH

Fixed Dog Clutch

1шт.

13

K908367

CLUTCH

Sliding Dog Clutch

1шт.

14

K908352

HARNESS

Driving Gear--Clutch Shaft

1шт.

K908947

WASHER

Bronze Thrust Washer--Front

1шт.

15

K15176

OIL SEAL

Oil Seal Livedrive

1шт.

16

K623546

O-RING

O Ring--Special Livedrive

1шт.

10

K620052

BEARING

--Needle Roller

1шт.

18

K908343

PLATE

End Plate

1шт.

19

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

Setscrew, 5/16 UNC x 7/8 in.

3шт.

K19481

SPRING WASHER

Spring Washer

3шт.

20

K908338

SELECTOR

Fork

1шт.

21

K908385

SELECTOR

Rod

1шт.

22

K13506

BALL

Selector Ball

1шт.

23

K13507

SPRING

1шт.

24

K908530

Layshaft

1шт.

25

K19158

ROLLER

Bearing

1шт.

26

K908378

SHIM

Distance Piece

1шт.

27

K908379

NO LONGER SERVICED

Locating Screw

1шт.

K19481

SPRING WASHER

Spring Washer

1шт.

28

K19021

BALL

Bearing

1шт.

29

K13053

RING, SNAP

Circlip, 72 mm. Int.

1шт.

30

K908529

SPARE PART

Layshaft Gear

1шт.

31

K15599

WASHER

Special Washer

1шт.

32

K24875

NUT

Nyloc Nut, 7/8 BSF

1шт.

Выбрано товаров: 38
