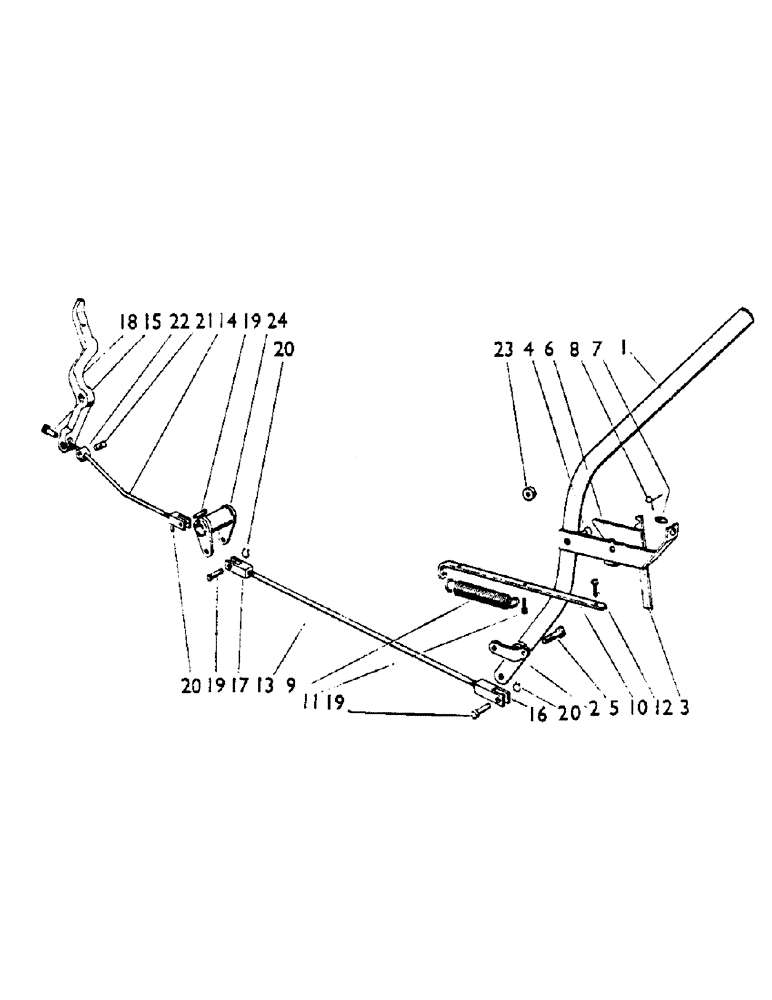

Запчасти Case IH 950 (27) - CLUTCH, HAND CONTROL, STANDARD WIDTH MODELS (03.1) - CLUTCH

1

K902811

Hand Lever

1шт.

2

K86320

Bracket--Hand Lever

1шт.

K19476

WASHER

3/4 in.

1шт.

K19532

PIN

Split Pin, 1/8 x 1 in.

1шт.

3

K88046

Support Bracket--Hand Lever

1шт.

4

K604135

Philips C'sk Screw, 3/8 UNC x 3/4 in.

2шт.

5

K600603

BOLT

7/16 UNC x 1 5/8 in.

2шт.

280136

NUT,3/8"-16, G8

2шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

2шт.

6

K88047

Trigger

1шт.

K19472

WASHER

3/8 in.

1шт.

K19529

PIN

Split Pin, 3/32 x 5/8 in.

1шт.

7

K31620

Anchor Plate--Torsion Spring

1шт.

8

K31411

SPRING

Torsion Spring--Trigger

1шт.

9

K41370

SPRING

Release Spring--Hand Clutch

1шт.

10

K31400

Guide Bar

1шт.

11

K604056

Screw, C'sk Hd., 5/16 UNC x 7/8 in.

2шт.

12

K604057

Screw, C'sk Hd., 5/16 UNC

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

3шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

3шт.

13

K14231

Clutch Rod--Rear

1шт.

14

K901943

Clutch Rod--Front

1шт.

K19403

NUT

3/8 BSF

4шт.

15

K14745

NUT

Adjusting Nut--Short

1шт.

16

K14233

Fork End--Hand Lever

1шт.

17

K14226

Fork End--Swinging Lever

2шт.

18

K89363

LEVER

Clutch Lever Livedrive

1шт.

18

K900716

LEVER

Clutch Lever Non-Livedrive

1шт.

19

K902269

SPARE PART

Pin

3шт.

20

K621587

RING, SNAP

Circlip

3шт.

21

K14744

PIN

1шт.

22

K14715

BUSHING

Distance Piece

1шт.

23

K64976

Stop--Clutch Hand Lever

1шт.

24

K904351

Swinging Lever

1шт.
