Запчасти Case IH 950 (40) - CONTROL VALVE, HYDRAULIC LIFT PUMP, ALL MODELS (07) - HYDRAULIC SYSTEM

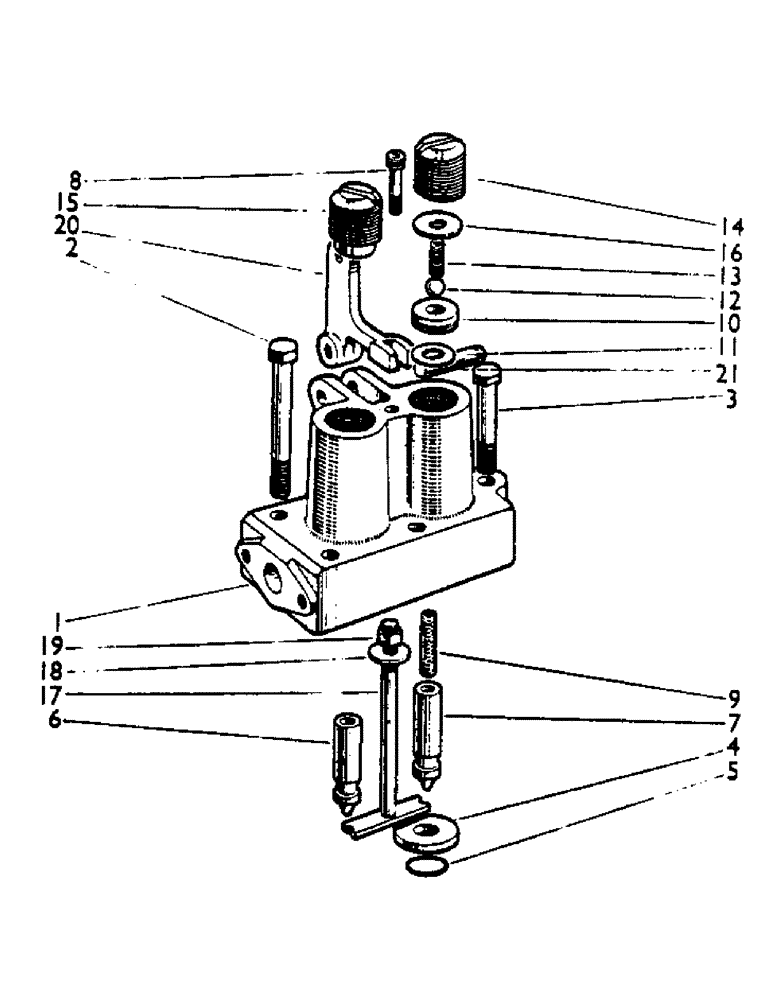

Схема запчастей Case IH 950 - (40) - CONTROL VALVE, HYDRAULIC LIFT PUMP, ALL MODELS (07) - HYDRAULIC SYSTEM
9
18
5
2
11
14
13
6
17
19
3
7
20
4
15
1
21
8
12
10
16

Артикул

Название

Примечание

Количество

K961024

VALVE

Control Valve (Complete)

1шт.

1

K961025

HOUSING ASSY.

Valve Housing and Plungers

1шт.

2

K24838

BOLT

5/16 BSF x 2 5/8 in.

2шт.

3

K19227

BOLT

5/16 BSF x 1 5/8 in.

2шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

5шт.

4

K901638

VALVE

Seat

2шт.

5

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

Sealing Ring

2шт.

6

K903298

SPARE PART

Plunger--Leak-off Valve

1шт.

7

K89236

VALVE

Plunger--Control Valve

1шт.

8

K624677

SCREW

Cap Head 5/16 BSF x 1 5/8 in.

1шт.

9

K24832

SPRING

Valve Return Spring

2шт.

10

K910412

INSERT

Valve Seat Insert 457320

1шт.

11

K15735

WASHER

Special Washer

1шт.

12

K920413

Valve Plunger

1шт.

13

K625160

SPRING

1шт.

14

K910414

PLUG

Special Plug

1шт.

15

K901967

SEALING LEAD

Sealing Plug

1шт.

17

K906102

VALVE

Operating Lever

1шт.

18

K89245

WASHER

Special Washer

1шт.

19

K607300

NUT

Nyloc Nut, 1/4 UNC

1шт.

20

K89246

BUZZER

Bell Crank

1шт.

21

K89247

PIN

--Valve Housing

1шт.

K19470

WASHER

1/4 in.

2шт.

K11934

PIN

Split Pin, 1/14 x 1/2 in.

2шт.

K910421

WASHER

Restrictor Plate 457320

1шт.

Выбрано товаров: 25
