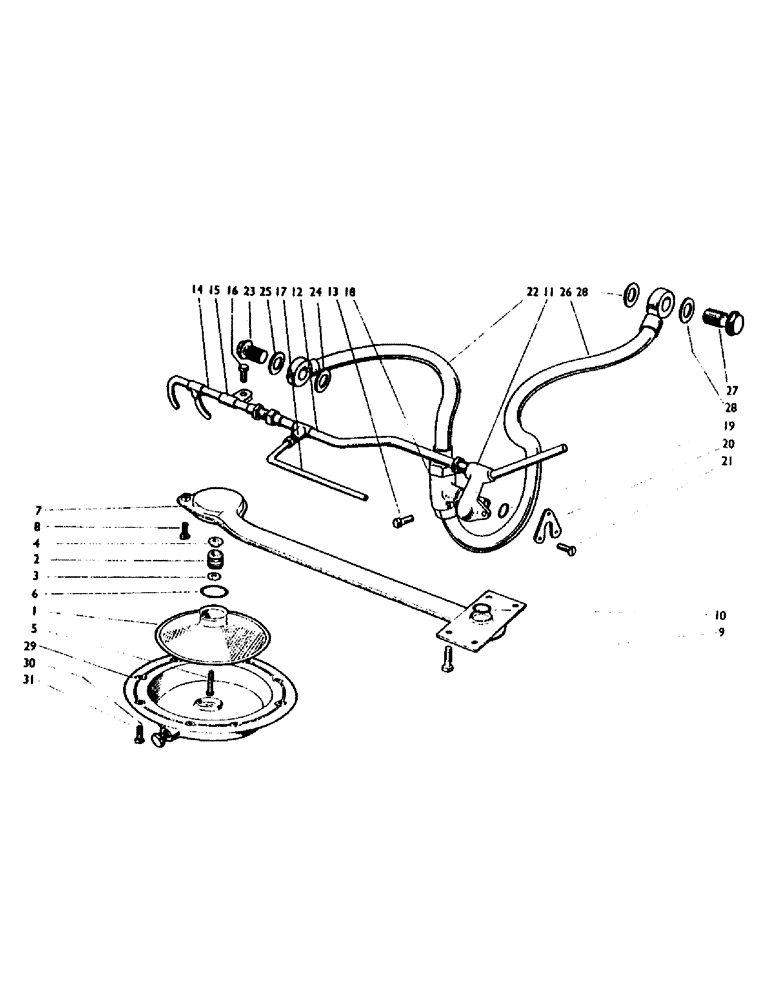

Запчасти Case IH 950 (38) - OIL FILTER AND PIPES, HYDRAULIC LIFT PUMP, ALL MODELS (07) - HYDRAULIC SYSTEM

K961026

SUMP

Oil Filter (Complete)

1шт.

1

K906861

FILTER

Gauze 961026

1шт.

2

K904390

PLUG

Magnetic Filter 961026

1шт.

3

K904389

BUSHING

Distance Piece 961026

1шт.

4

K904388

WASHER

Locating Washer 961026

1шт.

5

K624300

SCREW

Rd. Hd., 2 BA x 1 1/2 in. 961026

1шт.

K623002

LOCK NUT

Nyloc Nut, 2 BA 961026

1шт.

6

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

O Ring

1шт.

7

K906862

OIL RESERVOIR

Oil Suction Pipe

1шт.

8

K602806

BOLT

Setscrew, 5/16 UNC x 1 1/8 in.

1шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

1шт.

9

K12131

BOLT

1/4 BSF x 9/16 in.

4шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

4шт.

10

K15596

RING,3.63mm Thk x 31.34mm ID

O Ring

1шт.

11

K906787

FITTING

Elbow and Pipe--to PTO

1шт.

12

K906789

Pipe--Elbow to Union Standard Width

1шт.

12

K907756

Pipe--Elbow to Union Narrow Models

1шт.

13

K602702

SCREW

Setscrew, 1/4 UNC x 5/8 in.

2шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

2шт.

14

K908964

ASSEMBLY

Pipe--Gearbox Lubrication

1шт.

K621612

CLIP

Pipe Clip

1шт.

K602700

SCREW,1/4" - 20 x 3/8"

Setscrew, 1/4 UNC x h in.

1шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in

1шт.

K908974

Pipe--TDC to Pipe 908964

1шт.

K19626

Union, 1/4 Gas--Double-ended

1шт.

K908969

Special Union

1шт.

K607511

NUT

Special Nut

1шт.

15

K621614

Pipe Clip

1шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

1шт.

16

K602701

BOLT

Setscrew, 1/4 UNC x 1/2 in.

1шт.

17

K906791

PIPE

Lubrication Pipe--Tee Piece to Ram Cylinder, Standard Width

1шт.

17

K907761

Lubrication Pipe--Tee Piece to Ram Cylinder, Narrow Models

1шт.

K14676

FERRULE

Olive, 1/4 dia. Pipe

1шт.

K617950

NIPPLE, LUBE

Tubing Nut, 7/16 UNF

1шт.

18

K89127

Connector--Pipes to Pump Standard Width

1шт.

19

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

O Ring

1шт.

20

K89170

SHIM

Clamping Plate

1шт.

21

K604005

SCREW

C'sk. Screw, 1/4 UNC x 3/4 in.

3шт.

22

Pipe--Connector to Cylinder S/S by 5/8 in. from 910810, Standard Width

1шт.

22

K907744

Pipe--Pump to Cylinder Narrow Models 357140 & 314894

1шт.

23

K11765

Banjo Bolt

1шт.

24

K626784

WASHER,23.24mm ID x 33.34mm OD x 2.34mm Thk

Sealing Washer

1шт.

25

K626782

WASHER

Sealing Washer

1шт.

26

Pipe--Connector to Valve S/S by 5/8 in. from 910808, Standard Width

1шт.

26

K907742

Pipe--Control Valve Narrow Models 357140 & 314894

1шт.

27

K67801

NIPPLE, LUBE

Banjo Bolt, 3/4 BSP

1шт.

28

K626785

WASHER

Sealing Washer

2шт.

29

K904222

COVER

Rear Sump Cover

1шт.

K906764

GASKET

1шт.

30

K19581

PLUG

Drain Plug

1шт.

K626765

GASKET

Washer, 1/4 BSP

1шт.

31

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Setscrew, 5/16 UNC x 5/8 in.

8шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

8шт.

K908361

Pipe--Creeper Gear Lubrication Creeper Gear

1шт.

K621614

Pipe Clip Creeper Gear

1шт.

K621601

CLIP

Pipe Clip Creeper Gear

1шт.

K602701

BOLT

Setscrew, 1/4 UNC x 1/2 in. Creeper Gear

2шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in Creeper Gear

2шт.

K908580

Restrictor Plate--Special Elbow Creeper Gear

1шт.
