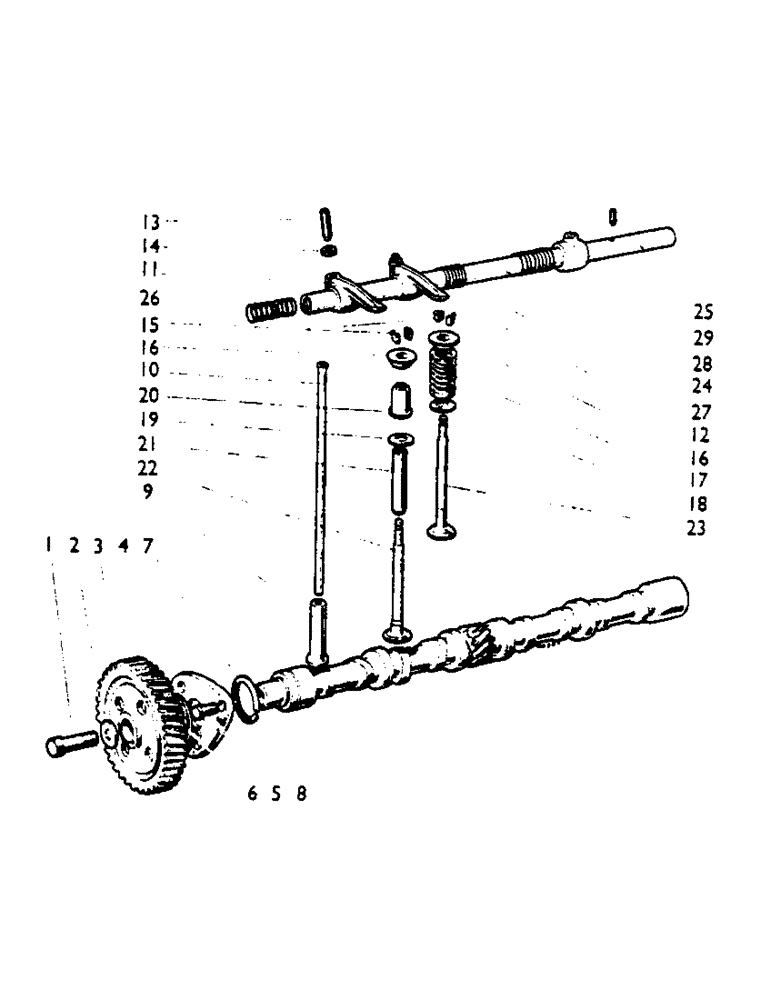

Запчасти Case IH 950 (08) - CAMSHAFT AND VALVE MECHANISM, ALL MODELS (01) - ENGINE

1

K11106

Bolt, Special, 7/16 BSF x 2 in.

1шт.

2

K66382

WASHER

Special, 7/16 in. dia.

1шт.

3

K31814

GEAR WHEEL

Gear--Camshaft

1шт.

K19607

KEY

Woodruff No. 506

1шт.

4

K30640

Plate--Locating Camshaft

1шт.

5

K19223

NO LONGER SERVICED

Bolt, 5/16 BSF x 1 1/8 in. Locating plate to timing plate

3шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in. Locating plate to timing plate

3шт.

6

K30410

WASHER

Thrust Washer

1шт.

7

K11037

Circlip

1шт.

8

K87311

SHAFT

Camshaft

1шт.

9

K901137

TAPPET

8шт.

10

K83973

PUSH ROD

8шт.

11

K36271

Valve Rocker--L.H. (with Bush)

4шт.

12

K36272

ROCKER

Valve Rocker--R.H. (with Bush)

4шт.

K11060A

BUSHING

Bush--Valve Rocker

8шт.

13

K89811

Adjusting Screw, 3/8 BSF

8шт.

14

K19442

NUT

Locknut, 3/8 BSF

8шт.

15

K11058

LOCK VALVE

Cotter--Valve (Pairs)

8шт.

16

K11057

Collar--Valve

8шт.

17

K11033

SPRING

--Valve

8шт.

18

K11029

Bottom Cup--Exhaust Valves

4шт.

19

K64459

Bottom Cup--Inlet Valves

4шт.

20

K64424

SEAL

--Inlet Valves

4шт.

21

K31674

LOCK VALVE

Guide

8шт.

22

K30053

VALVE

--Inlet

4шт.

23

K64402

VALVE

--Exhaust

4шт.

24

K31679

SHAFT

--Rocker

1шт.

25

K11016

SCREW

--Locating, Serial Range: Shaft-Head

2шт.

26

K31683

Spring--End

2шт.

27

K11017

SPRING

--Intermediate

2шт.

28

K30334

Spring--Centre

2шт.

29

K30335

Banjo--Rocker Shaft

1шт.
